NEPTUNE 1&2_EN_Ver.2.1_45/2014 72
1. Turn locks a quarter turn.
2. Remove hook.
The cabinet can then be lifted of the top
bumber.

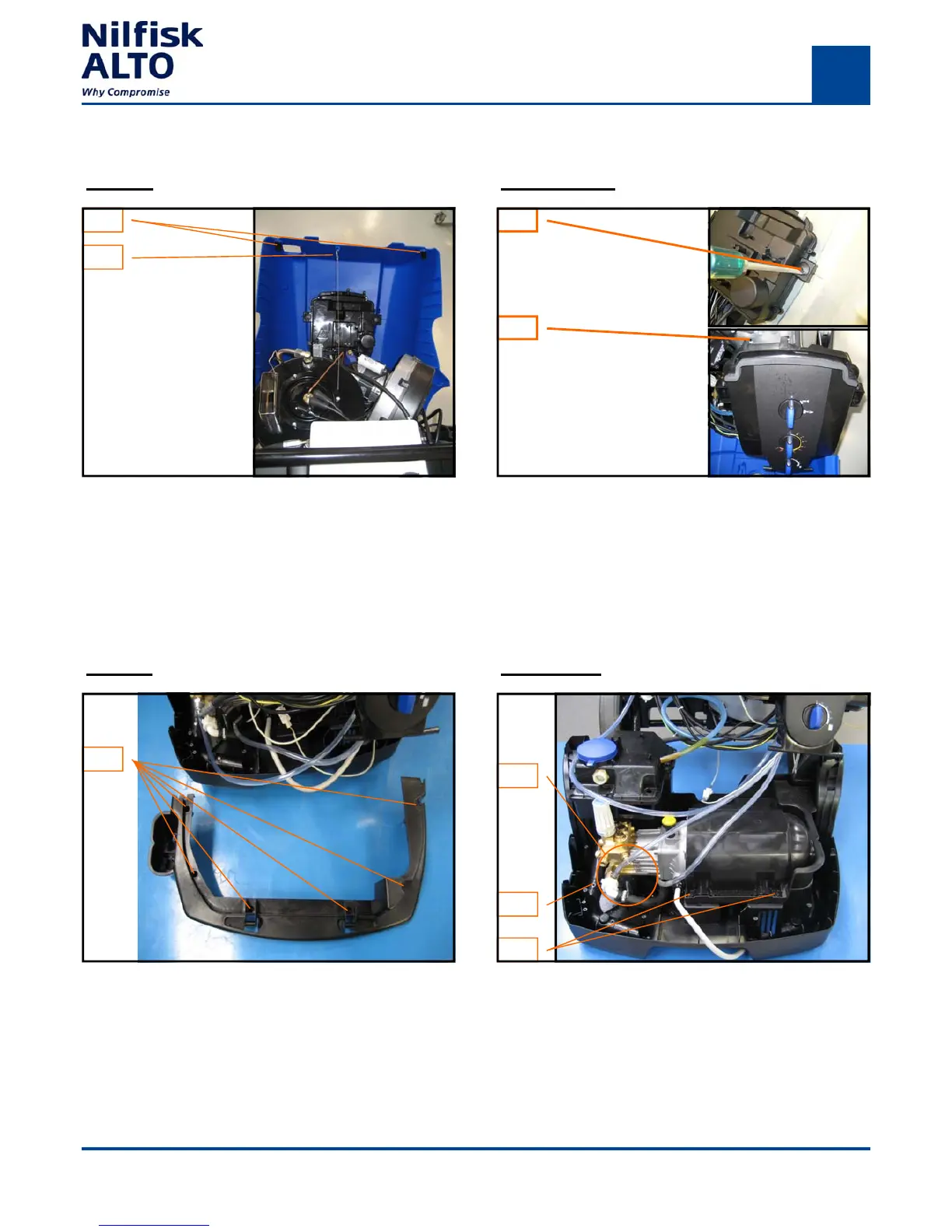

Fig.F.5: Cover - Removal
Chassis
1. Loosen the 6 screws on the top bumper
And remove the top bumper from the
bottom bumper.
1. Dismount micro switch, hoses and wires
from the motor/pump unit.
2. Loosen the screws fixing the bottom
bumper to the frame and pull the bumper
out of the frame.
3. Loosen the 4 screws fixing the motor
cover to the bottom bumper.
Fig.F.6: Electrical box - Removel
1. Turn locks on the back side of the E-box
a quarter turn and remove the box from
the cover.
2. Place the e-box on the service bracket
fixed on the boiler.
Fig.F.7: Top bumper - Removal Fig.F.8: Bottom bumper and motor cover - Removel
1.
2.
1.
2.
3.
1.
Electrical box
Bumper
1.
2.
Motor cover
To Next Page
