Nilfisk-ALTO NEPTUNE 1 Service Manual

F
Service / Repair
NEPTUNE 1&2_EN_Ver.2.1_45/2014 78
Remove the pistons from the inside of the
wobble disc housing.
Inspect the surfaces on the pistons for wear.
Inspect springs for fractures.
Clean the wobble disc housing properly
before assembly.
Use paper - not cotton waste
Place the unit on e.g. two pieces of wood.
Remove valve block. Refer to page 25.
Loosen the 4 hexagon bolts, securing the
wobble disc housing, synchronously.
Let the oil drain out into a tray.
Note housing position and the 2 O-rings!
 Beware of the springs being relieved.

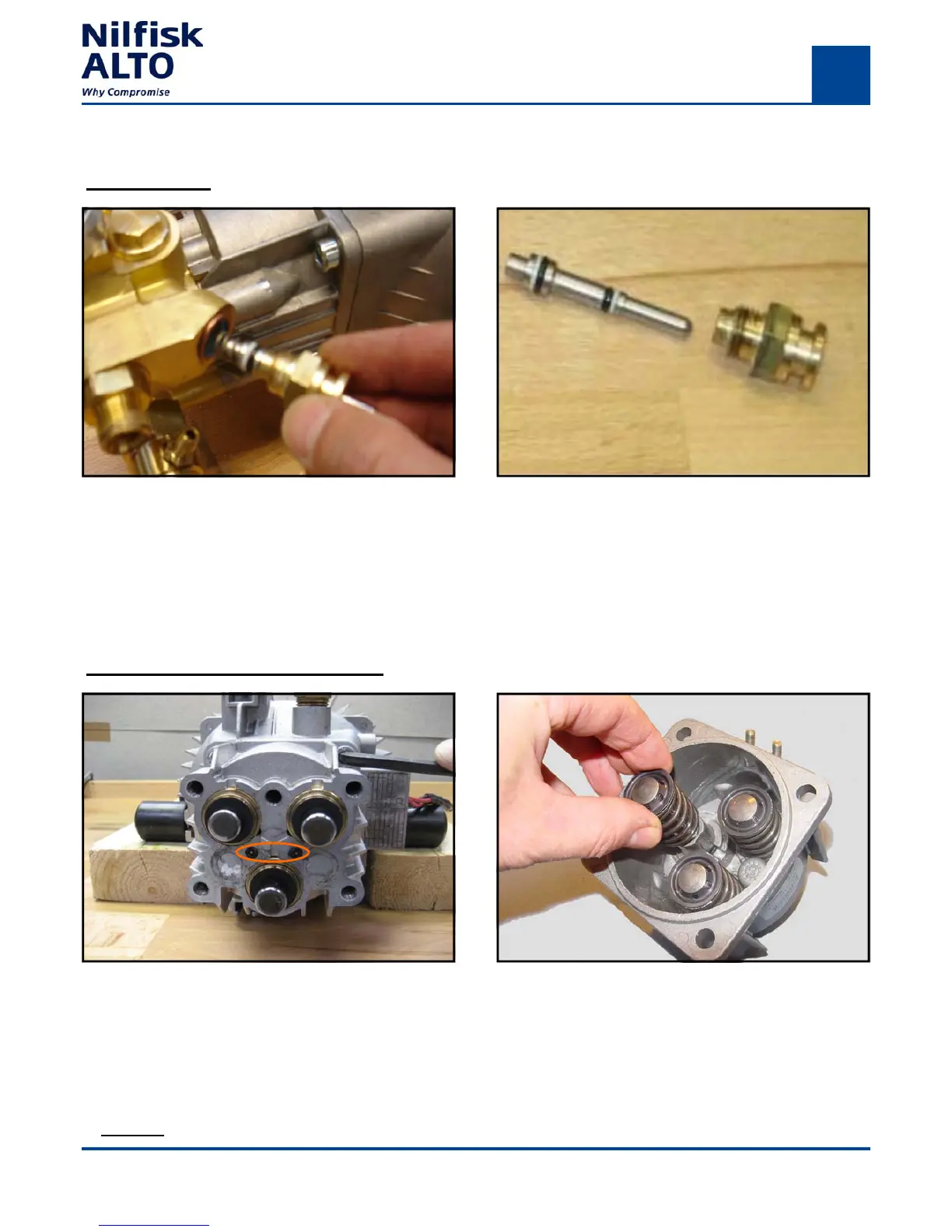

Fig.F.31: Motor Pump Unit - Repair Fig.F.32: Pistons - Removal
Plunger and Oil Seal - Maintenance
Control piston.
 Inspect the parts for wear and dammages.
 If needed replace the control piston kit.
 Grease the parts and assemble.
Control piston repair kit.
Fig.F.29: Control piston– inspection Fig.F.30: Control piston
