Nilfisk-ALTO NEPTUNE 1 Service Manual

F
Service / Repair
NEPTUNE 1&2_EN_Ver.2.1_45/2014 80
Wobble Disc - Maintenance

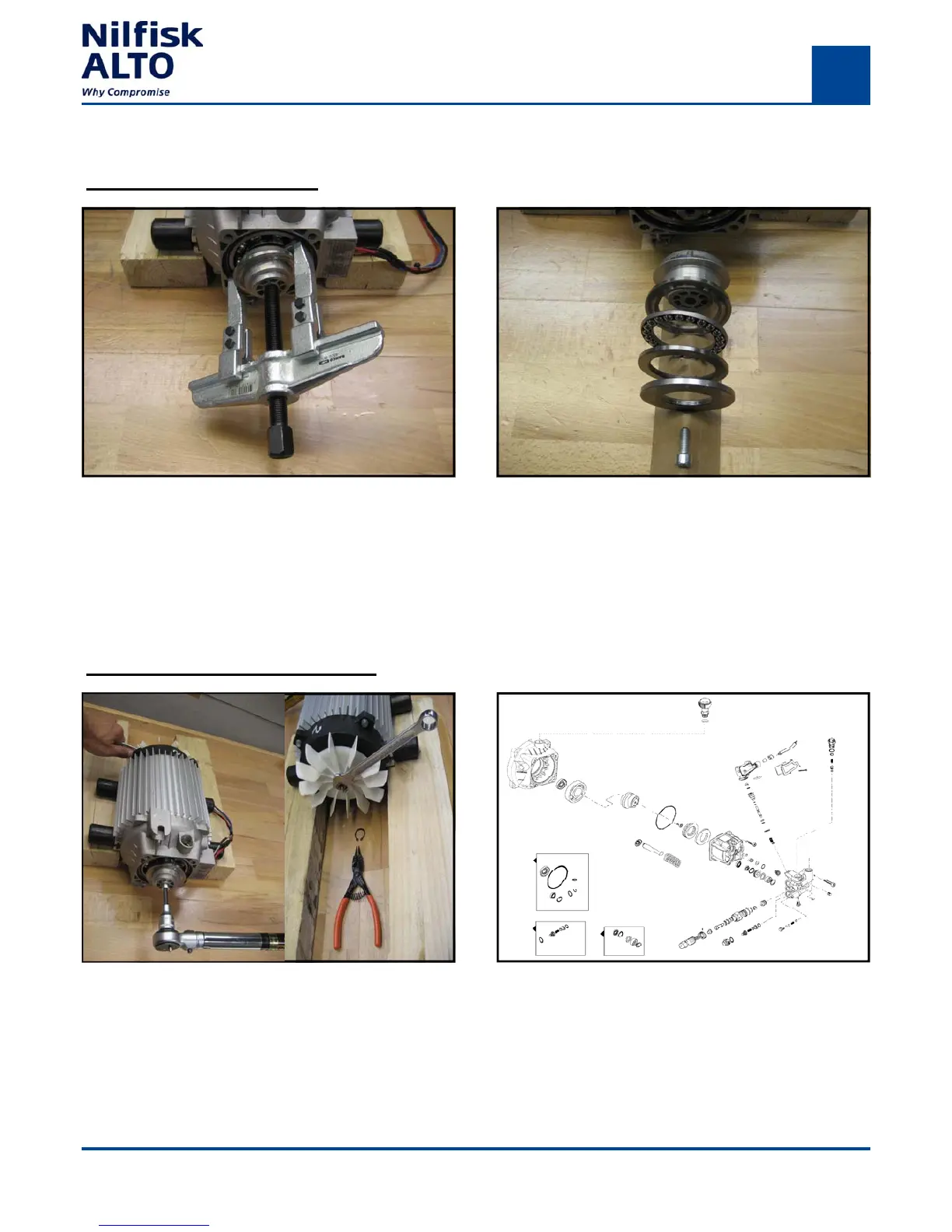

Fig.F.37: Wobble Disc - Removal Fig.F.38: Wobble Disc—Inspection

Use Loctite 243 on the center screw and tigh-
ten it with a torque setting at 24 Nm (18
ft.lbs.).
 When tightening up the center screw, hold
the motor shaft with a 16mm spanner.
Fig.F.39: Wobble disc — Assembling. Fig.F.40: Pump– Blow through.
 Loosen the center screw by means of an air
tool or a hexagon key.
 Use a two legged puller to withdraw the
wobble disc from the motor shaft.
 Inspect the wobble disc and the bearing for
wear.
 Replace if needed.
Are main bearings, rotor or stator housing
damaged, it is recommended to replace the
motor as a whole.
Housing wobble disc - Assembling
Neptune 2
