Service / Repair

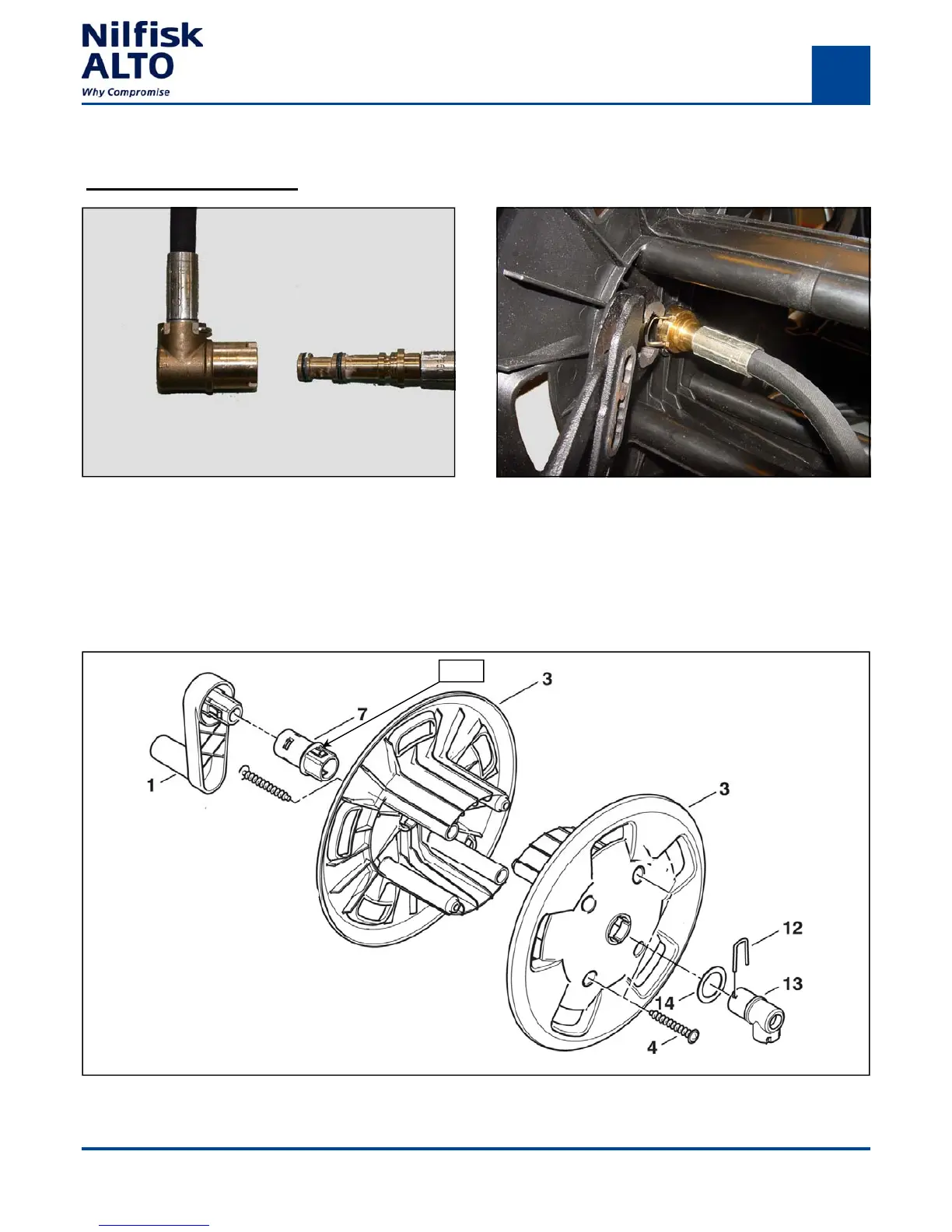

NEPTUNE 1&2_EN_Ver.2.1_45/2014 98
Fig.F.98: Hose Reel - Exploded
View
Fig.F.96: Connector and hose end-

Inspect inner surface of connector.
Inspect o-rings on the end-piece and replace
if necessary.
Grease the o-rings before assembly.
Fig.F.97: Hose reel assembling

Beware not do damage o-rings at assembly.
To ease assembly, use a combination pliers
to hold the lock bracket.
Hose Reel - Maintenance
Lock
