Nine Eagles J6 - Table of Contents; Technical Specifications of the Transmitter; LCD Instructions

2
copyright © 2012 BMI J6 transmitter
Summarie
Technical specications of the transmitter .............2
LCD Instructions...................................................2
Programming the transmitter ................................3
Wing model Programming ...................................3
Servo reverse function ..........................................3
Dual rate function ................................................4
Wing mixers .........................................................4
Curve programming ..............................................4
Throttle curve programming ..................................5
Example curves ....................................................5
Gear Speed .........................................................5
Trims programming ..............................................6
Helicopter programming .......................................6
Model type Setup .................................................6
Swash plate .........................................................6
Servo Inversion ....................................................6
CCPM Mixing ........................................................7
Dual rate programming .........................................7
Wing mixers .........................................................7
Curve programming ..............................................7
Throttle curve programming ..................................8
Example curve .....................................................8
Gyro Sensitivity ....................................................8
Programmation des trims ......................................9
Trim Programming ................................................9
Other functions ....................................................9
Transmitter ..........................................................9
Copy function .......................................................9
3D switch protection .............................................9
Throttle Hold protection ........................................9
Binding ................................................................9
Mode1 / Mode 2 Switch ........................................8
Power Saving .......................................................10
Communication protocol .......................................10
Stick calibration ....................................................10
Reset Function ....................................................10
Trainer system .....................................................10
Factory settings ....................................................10
Receiver ..............................................................10
Instructions J6
6-Channel Radio Control System 2,4 GHz
1. This transmitter is included with the 3D models Solo Pro 100-3D, Solo Pro 125-3D and 180-3D (Excepted B&F sets)
2. Programmable mixing set up, curve settings, etc.
3. Large LCD screen with display of all the functions and programs.
4. Programmable functions to adjust ying parameter for helicopters (CCPM) and airplanes
5. Integrated advanced 2.4GHz DSSS technology, it can achieve long communication distance, excellent anti-interference and strong errors correct-
ing features.
6. User-friendly interface for easy operation, with simple and practical functions
7. Convenient switch for Mode 1 and Mode 2, switching both the mechanics and the electronics
8. With simulator connector. (mini Din).

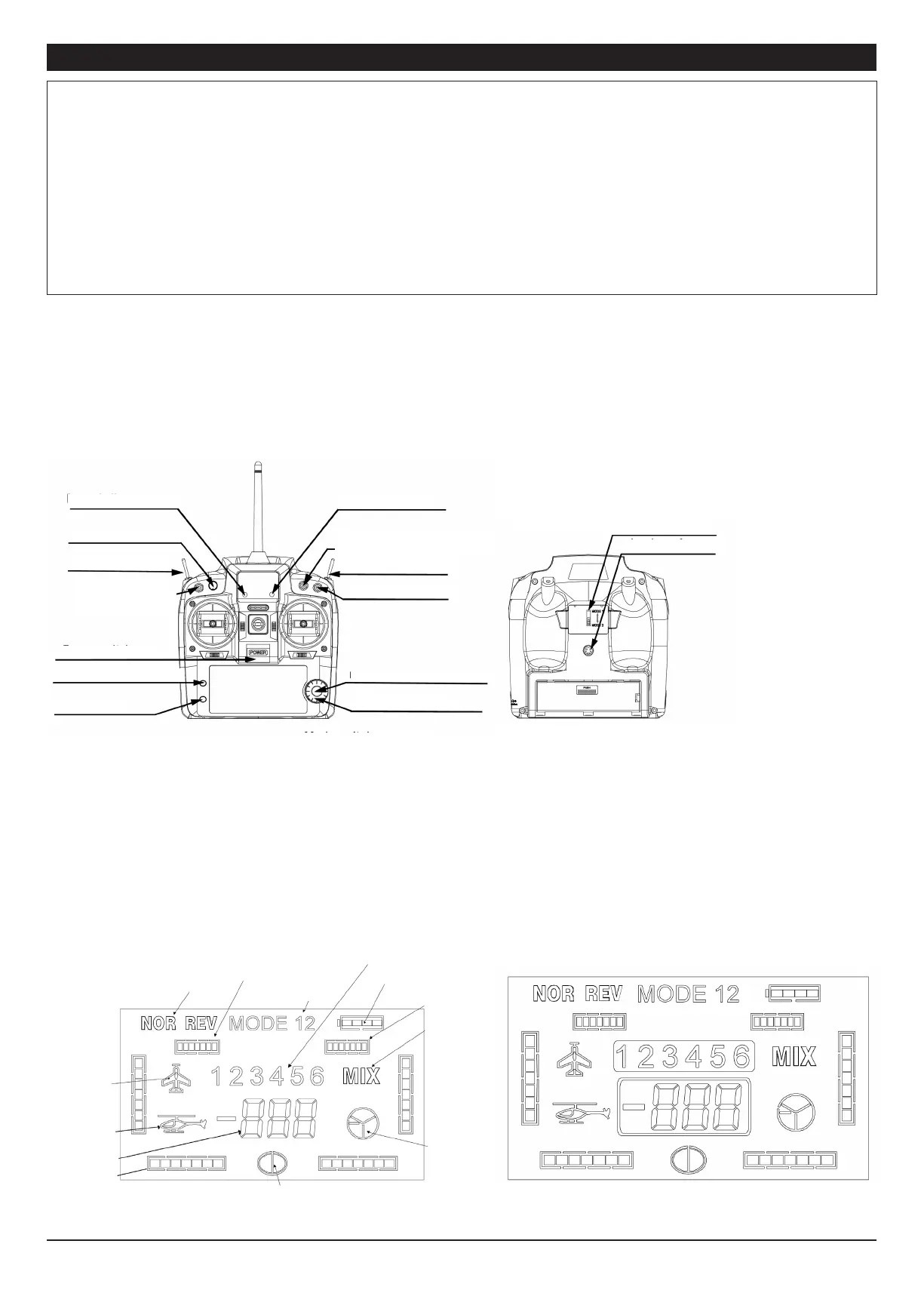

LED indicator
VR(A): Hov. T/Trim Flap
SW(B): 3D/ LG
SW(A): Throttle hold/
aps switch
On/Off switch
A-button
B-button
LED indicator
SW(C): Gyro/gear Speed switch
SW(E): Trainer switch
SW(D): D/R switch
C-button: press-button
D-Button: dial
Simulator port
Mode switch
Remark: the functions of the switches may differ, depending the model.
Functions described before the “/” are for helicopter, functions described after the “/” are for aero planes.
The following function buttons are frequently used.
A: Enter/ factory setting
B: Return
C: Conrm/ next step
D: Adjust values.
LCD screen
The high resolution LCD screen functions are used as interface for programming the transmitter.
Technical specications
1. battery type : 8x AA 1.5V
2. Operating Voltage: 8.5V~13V
3. Current: 200-250mA
4. Emitted Power: +14dBm
servo reverse function
auxiliary channel
Mode1/Mode2
CH5 indi-
Mixer indicator
Battery Indicator
Channels
Swash plate indicator
- CCPM 90°
- CCPM 120°
D/R indicator
Air-
plane
Helicopter
Throttle indicator
Trim indicator
