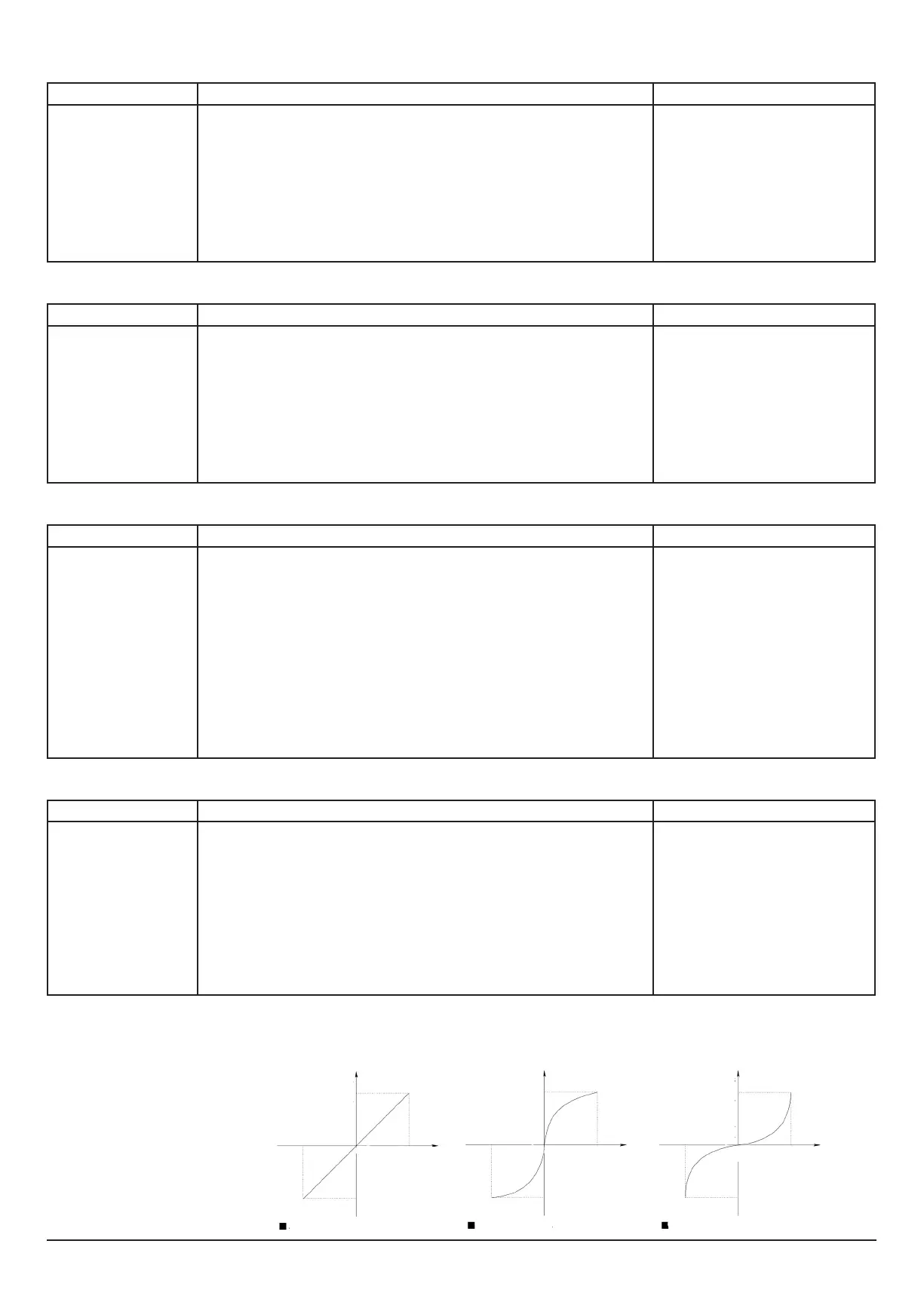

Stick movement Stick movement Stick movement
Servo tow VServo tow VServo tow
Curve index 0%
Curve index 60% Curve index-60%
Curves can be set between - 80% en +80%”
CCPM Mix setup
Description Steps to follow Instructions
This function is used to setup a
120°CCPM swash plate system.
You can set the throw and
direction of every individual
swash plate servo.
1. Turn on the transmitter
2. Press the A-button for 1 second and the “NOR REV” symbol and “123456” symbol will start ashing.
“3.Turn the D-Knob until the “”123456””-icon and the
“”swash plate “”-icon (circle) ash together on the LCD screen”
4. Press the C-button or A-button and the swash plate icon and channel identier keep ashing.
5. Select the desired channel with the D-knob
6. Conrm the chosen channel by pressing the A-button or the C-button.
“7. Change the value, using knob D
(Press the A-button in order to restore the factory setting)”
8. Press the C-button in order to save the changes and to go to the next channel.
9. Press the B-button to leave the menu.
In step 5
Channel 1 : represents the Aileron channel.
Channel 2: represents the elevator channel.
Channel 3 : represents the Pitch channel.
The parameters of every channel vary between
-100% and +100%
Dual Rate Function
Description Steps to follow Instructions
When choosing high rate or
low rate mode for the “”AIL””,
“”ELE”” or “”THR”” channels,
you can set two values for the
control stick’s both directions
(left/right and up/down)
separately.
1. Turn on the transmitter
2. Press the A-button for 1 second and the “NOR REV” symbol and “123456” symbol will start ashing.
3. turn the D-knob until the “D/R indicator” and the “123456” indicator ash on the screen.
4. Press the A-button or the C-button to conrm.
5. Select the channel you wish to modify, using the D-knob.
6. Press the A-button or the C-button in order to conrm your choice.
7. Turn the D-knob to set the rudder value. use the D/R switch to choose high rate mode or low rate
mode. Move the corresponding channel stick to select the rudder value for the left/right or up/down
sides. (Press the A-button to restore factory settings)
7. Press the C-button to save the changes and enter into the next search.
8. Press the B-button to return in the menu.
When a specic channel has been selected,
the current D/R value will be displayed on the
screen. In the D/R menu, each channel has 4
parameters that can be set, by using the D/R
switch and the corresponding stick.
Values can be restores to factory settings by
pressing the A-button.
D/R values vary between -125% and +125%
remark: a negative value indicates that the
control directions is opposite to the swing direc-
tion of the stick.
Wing mixers
Description Steps to follow Instructions
This function provides 3 kinds
of basic wing mixer parameters
and asymmetric value setup
of the sticks for helicopters or
airplanes.
1. Turn on the transmitter
2. Press the A-button for 1 second and the “NOR REV” symbol and “123456” symbol will start ashing.
3. turn the D-knob until the “MIX “ symbol and the “123456” symbol ash on the screen.
4. Press the A-button or C-button, and the “123456” symbol disappears (unless these parameters have
been set before)
5. Select the preferred wing type, by turning the D-knob
6. Press the A-button or C-button and “MIX” and the wing conguration will ash
7. Turn the D-knob in order to select main channel or
sub channel.
8. Press the A-button or the C-button in order to conrm your choice.
9. Turn the D-Knob to set the ‘wing mix’ value, use the corresponding control stick to change the
parameters.
(press the A-button to restore the factory settings) “
10. Press the C-button to save the changes and enter into the next search.
11. Press the B-button after nishing setup.
Specic mixers for helicopters:
- If no gure is shown, no wing mixer is set
- “”1”” represents an ATS type mixer, where the
corresponding values for the throttle channel
and the tail channel (rudder) require setup. Use
the corresponding control stick of each channel
in order to change the parameter of left/right or
up/down. in the wing-mixer.
Press the A-button to restore the factory set-
tings. Press C to cancel the setting value of the
wing mixer.
Curves
Description Steps to follow Instructions
“This function allows you to
change the curve setup which
can improve the operational
feeling of the control sticks.
You can set a negative or posi-
tive curve index for aileron, rud-
der and elevator. The throttle
channel has a 5 points curve.
You’ll nd an explanation about
curve indices further below. “
1. Turn on the transmitter
2. Press the A-button for 1 second and the “NOR REV” symbol and “123456” symbol will start ashing.
3. turn the D-knob until only the “123456” symbol ashes.
4. Press the A-button or C-button. The active channel is displayed
5. Use knob D to select a channel
6. press the A-button or C-button. The active channel and two digits on the throttle indicator will start
ashing, followed by a “E”
7. Turn the D-knob to set the curve. Press the A-button in order to restore the factory settings)
8. Press the C-button to save the changes and enter into the next option.
9. Press the B-button to return in the menu.
When you have selected the channel, the display
shows the current curve index, followed by “”E””
A positive curve index means that the stick
movement has a much throw around the middle
point and few throw at both ends.
The effect is opposite when the curve index is
negative.
Normal curves can be set between -80% and
+80%
