Nine Eagles J6 - Throttle Curve Programming; Example Curves; Gear Speed

J6 transmitter copyright © 2012 BMI
5

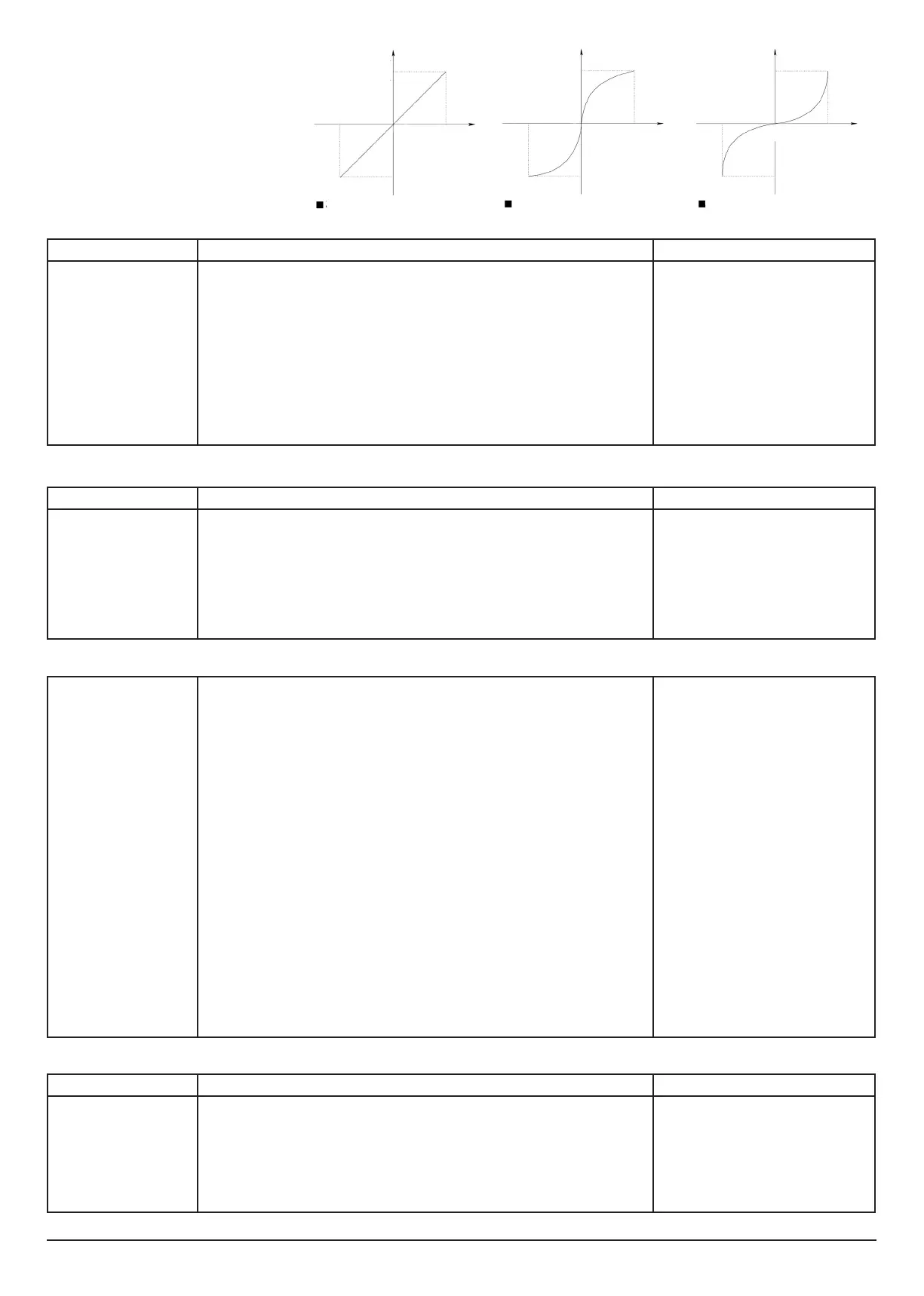

Stick movement Stick movement Stick movement
Servo tow Servo tow Servo tow
Curve index 0%
Curve index 60% Curve index -60%
Normal curves can be set between -80% and +80%
5 point throttle curve
Description Steps to follow Instructions
Setup of the 5 points throttle
curve
1. Turn on the transmitter
2. Press the A-button for 1 second and the “NOR REV” symbol and “123456” symbol will start ashing.
3. turn the D-knob until only the “123456” symbol ashes.
4. Press the A-button or C-button. The active channel is displayed
5. Turn the D-knob until “dot” appears on the screen
6. Press the A-button or the C-button. The number of the corresponding dot (dot n°1 to dot n°5) will
ash
7. Turn knob D in order to select the desired dot.
8. Press the A-button or C-button in order to set a value for this point.
9. Use knob D to set the value.
(press the A-button to restore factory settings)
10. Press the C-button to save the change
11. Press the B-button to go back in the menu.
The throttle curve is a ve dot curve that can be
set from the minimum throttle stick position
(dot 1) to the maximum throttle stick position
(dot 5). dots 2,3,4 are in between. Dot 3 cor-
responds the middle position of the throttle stick.
values vary between 0% and 100%
Examples
Description Steps to follow Instructions
Example:
Setting the elevator curve index
to +25%”
1. Turn on the transmitter
2. Press the A-button for 1 second and the “NOR REV” symbol and “123456” symbol will start ashing.
3. turn the D-knob until only the “123456” symbol ashes.
4. Press the A-button or C-button. channel 1 will now ash
5. Turn the D-knob until channel 2 appears on the screen
6. Press the A or C-button. The rst two digits on the throttle indicator will ash, follow by “E”
7. Turn knob D until “+25” is displayed as value.
8. Press the C-button to save the change
9. Press the B-button to go back in the menu.
When a channel has been chosen, the throttle
indicator displays the current curve index, fol-
lowed by an “”E””
A positive value(+) means that the sensitivity
around the middle point of the control stick is
bigger and smaller at the ends.
A negative (-) curve index has an opposite
effect.
Description Steps to follow Instructions
Example:
Setting a 5 point throttle curve
with these values:
dot 1: 2%
dot 2: 28%
dot 3: 52%
dot 4: 77%
dot 5: 98%”
1. Turn on the transmitter
2. Press the A-button for 1 second and the “NOR REV” symbol and “123456” symbol will start ashing.
3. turn the D-knob until only the “123456” symbol ashes.
4. Press the A-button or C-button. channel 1 will now ash
5. Turn the D-knob until channel 3 appears on the screen
Down on the screen “”dot”” is displayed.”
6. Press the A-button or the C-button. “1” (dot n°1) will ash
7. Press the A-button or C-button. “1” (dot 1) keeps ashing. 3 digits on the throttle indicator will ash as well.
8. Turn the D-knob until the value for dot 1 is 002
9. Conrm by pressing the C-button. “2” (dot 2) will start ashing.
10. Press the A-button or C-button. “2” (dot 2) keeps ashing. On the throttle indicator, 3 digits ash as well.
11. Turn the D-knob until the value for dot 2 is 028
12. Press the C-button to conrm. “3” (dot 3) will start ashing.
13. Press the A-button or C-button. “3” (dot 3) keeps ashing. On the throttle indicator, 3 digits ash
as well.
14. Turn the D-knob until the value for dot 3 is 052
15. Press the C-button to conrm. “4” (dot 4) will start ashing.
16. Press the A-button or C-button. “4” (dot 4) keeps ashing. On the throttle indicator, 3 digits ash
as well.
17. Turn the D-knob until the value for dot 4 is 077
18. Press the C-button to conrm. “5” (dot 5) will start ashing.
7. Press the A-button or C-button. “5” (dot 5) keeps ashing. 3 digits on the throttle indicator will ash
as well.
20. Set the value of dot 5 to 098 with knob D
21. Press the C-button to conrm
22. Press the B-button twice in order to go back in the menu.
When moving the cursor to the channel 3, it will
automatically display “”dot”” on the LCD.
This means that the Throttle curve is a 5 dot
operation curve, and thus can be set on 5 dif-
ferent dots.
Please remark that after setup, no “”E”” will
appear on the throttle indicator.
Gear Speed
Description Steps to follow Instructions
There are two possibilities: Slow
and fast
1. Turn on the transmitter
2. Press the A-button for 1 second and the “NOR REV” symbol and “123456” symbol will start ashing.
3. turn the D-knob until y “G-S” ashes
4. Press the A-button or the C-button. 3 digits will now ash
5. Turn the D-knob in order to set the Gear Speed.
(press the A-button to restore the factory value)”
6. Press the C-button to save and to go to the trim memory.
7. Press the B-button to go back in the menu.
Use switch SW(C) in order to choose between
fast and slow gear speed.
