Connecting
ConnectingConnecting
Connecting the
thethe
the machine
machinemachine
machine
• Connect the machine to the voltage supply and the connection marked „24V DC
24V DC24V DC
24V DC“ with the mains power unit. If the
mains connector plug is not compatible with your mains supply socket, please contact your Nitronic supplier or us
directly.
• Connect the machine to your compressed air supply system. The supplied compressed air hose is fitted with a
coupling on the machine side, the other side is free. You must fit a coupling to this free side which is compatible
with your compressed air system. The outer hose diameter is 6 mm.
The machine is equipped with an internal pressure controller; however the incoming pressure must be between
5 and 8 bar. The pressure is in no case to exceed 8 bar!
• Connect the foot pedal switch (optional) to the connection „Foot Pedal
Foot PedalFoot Pedal
Foot Pedal“.
With the foot pedal connected, the activation sensor is inactive! The machine can only be activated with the foot
pedal!

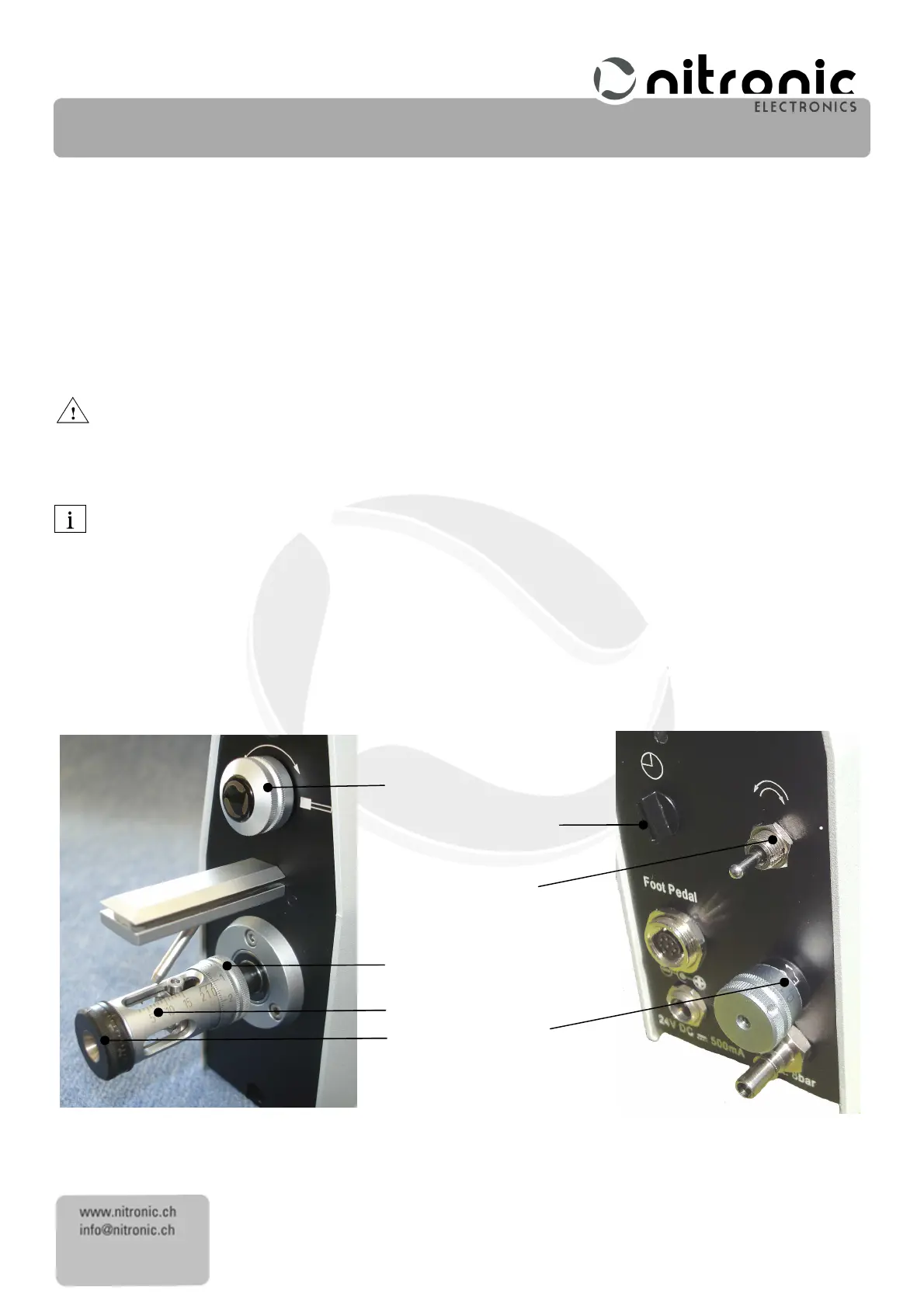

Control Elements
Control ElementsControl Elements
Control Elements
4. Diameter 31.Rotation time / diameter feed rate
5. Stripping head with length scale 30. Counterclockwise / no rotation / clockwise
2. Length 32. Wayback (ST215 only)
17. Centering
Fig. 1 Fig. 2
