Setting the Wayback (ST215W only)
Setting the Wayback (ST215W only)Setting the Wayback (ST215W only)
Setting the Wayback (ST215W only)
The Wayback is an opening of the blades before pulling off the jacket.
The Wayback is only active when pulling off without rotation. The Switch 30 must be in the middle position.
• Set the Wayback to 0.00mm firstly
• Raise the Wayback until the desired stripping results are reached.
• The Wayback scale is graduated in 0.01mm
0.01mm0.01mm
0.01mm (0.0005 Inch)
(0.0005 Inch)(0.0005 Inch)
(0.0005 Inch). That means that with a full turn the Wayback will be
0.2mm (0.008 Inch) in diameter.
Setting
SettingSetting
Setting the
thethe
the L
LL
Length
engthength
ength

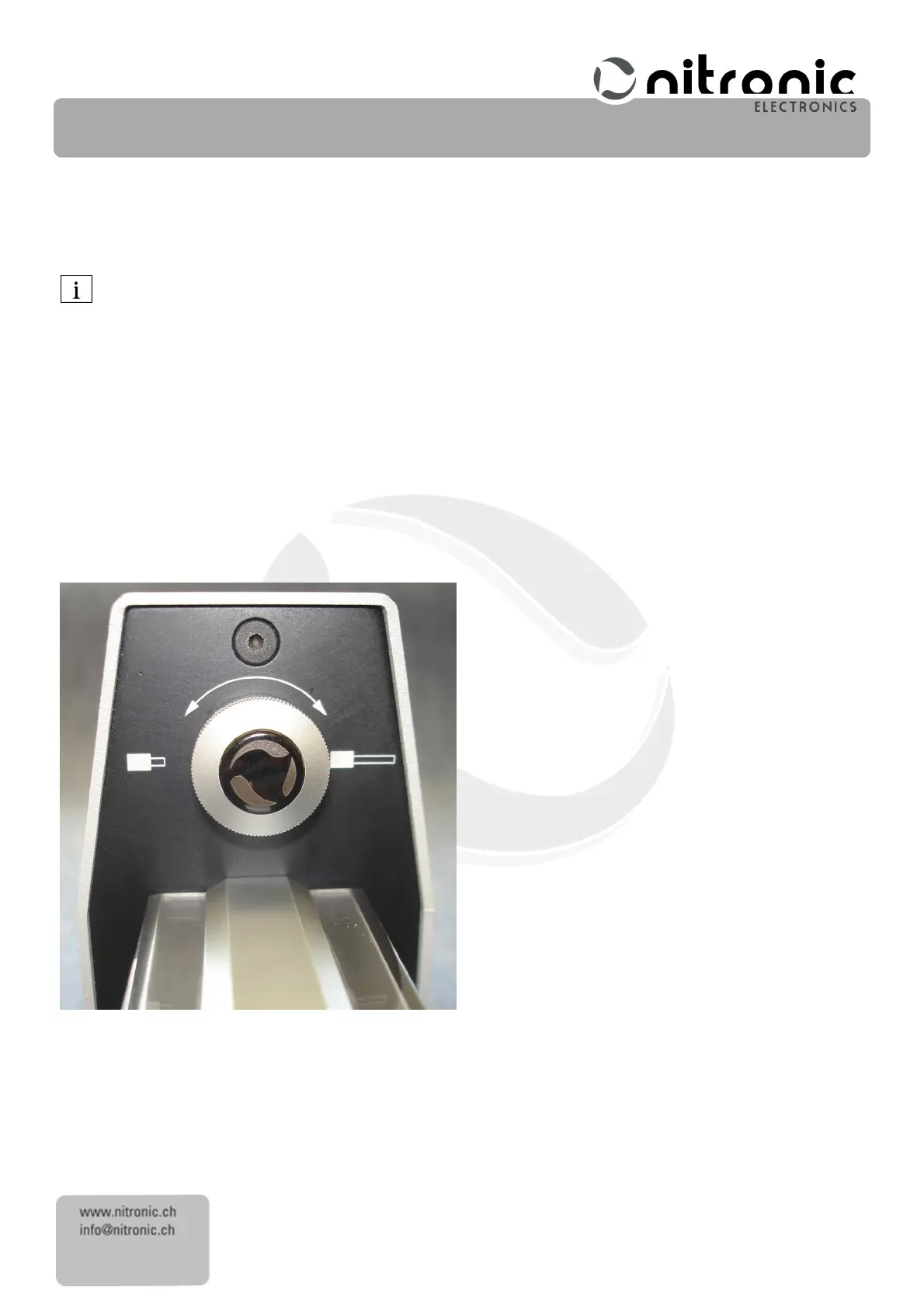

• Set the desired stripping length with the length setting knob and read off the length at the length scale.
Fig. 3
