Nobles Frontier 608549 - Brush Breakdown

PARTS LIST
LISTA DE PIEZAS
30
Frontier Carpet Extractor (06–01)

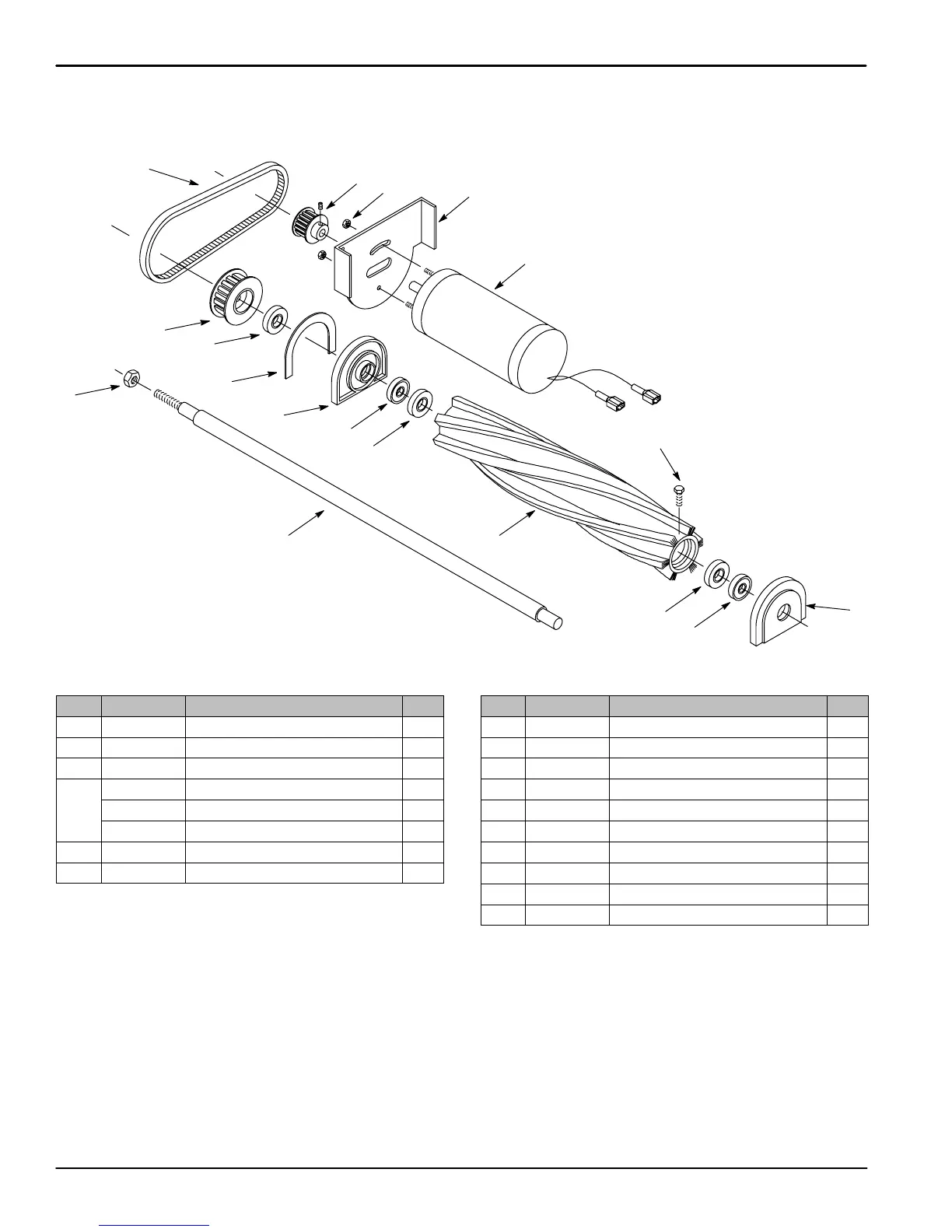

BRUSH BREAKDOWN
CONJUNTO DE CEPILLO
5
6
7
8
9
10
11
10
9
8
14
13
1
2
3
4
12
15
REF PART # DESCRIPTION QTY.
1 230507 BELT, BRUSH DRIVE 1
2 230506 PULLEY, MOTOR 1
3 230366 BRACKET, MOTOR (120V/230V) 1
4 130471 MOTOR, BRUSH DRIVE (120V) 1
190150 BRUSH, CARBON (120V) 1
575782 BRUSH, CARBON (240V) 1
∇ 700094 ASSEMBLY, BRUSH 1
 5 230505 PULLEY, BRUSH 1
∇ ASSEMBLY / CONJUNTO
 INCLUDED IN ASSEMBLY / INCLUIDO EN EL CONJUNTO
 RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS PARA
MANTENER EN EXISTENCIA
REF PART # DESCRIPTION QTY.
 6 230363 SPACER 1
 7 100005 GASKET, BEARING BLOCK 1
 8 230261 BLOCK, BEARING 2
 9 140125 BEARING, BRUSH 2
 10 100049 SEAL, BRUSH BEARING 2
 11 240050 BRUSH, CYLINDER 1
 12 140554 SCREW, 1/4–20X3/4 4
 13 230362 SHAFT, BRUSH 1
 14 140548 NUT, 5/16 FINJAM 1
15 140518 NUT, KEP 10–32 2
