Nobles Frontier 608549 - Plumbing Group Parts

PARTS LIST
LISTA DE PIEZAS
32

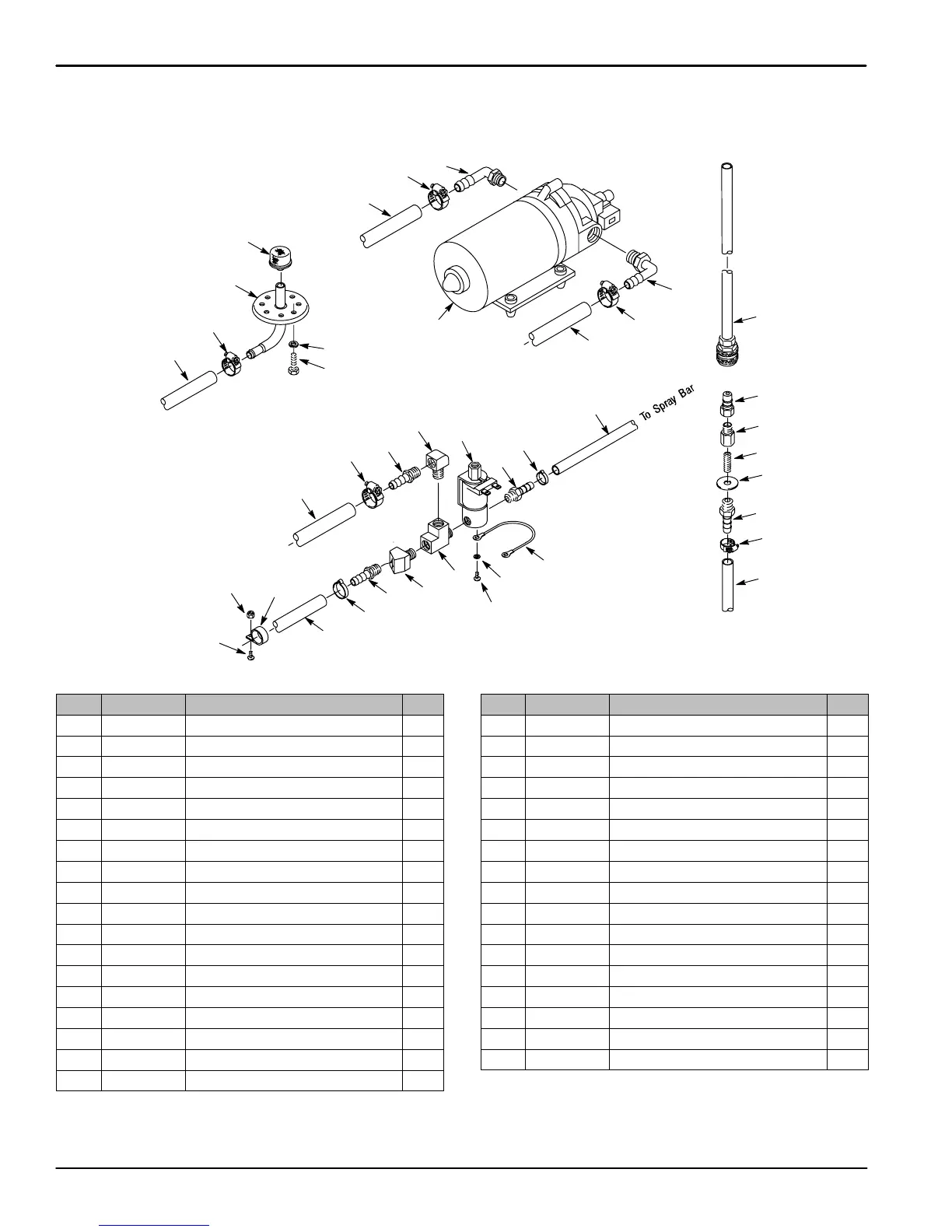

Frontier Carpet Extractor (06–01)
PLUMBING GROUP
GRUPO DE TUBERÍAS
4
5
B
C
30
6
3
2
1
B
33
3
4
7
8
9
10
14
13
12
11
15
16
17
9
21
20
19
18
A
22
23
A
8
32
24
29
17
28
27
26
25
31
C
35
34
REF PART # DESCRIPTION QTY.
1 180628 SCREEN, TANK 1
2 600451 BLADDER PLATE 1
3 140310 CLAMP 2
4 606452 HOSE, 3/8” X 2.75’ LP, GRAY 1
5 140259 SCREW 4
6 140016 WASHER, LOCK 4
7 180103 PUMP, 100PSI (120V) 1
8 606162 HOSE, 1/2” X 26” 1
9 630369 CLAMP 2
10 150425 ELBOW, 3/8M X 1/2H 1
11 150933 QUICK COUPLER 1
12 150000 ADAPTER, 1/4FX1/4M 1
13 150600 NIPPLE, 1/4 X 2 – BRASS 1
14 140008 WASHER, FLAT 1
15 150511 FITTING, BARB, 1/4FX3/8H 1
16 140310 CLAMP 1
17 606451 HOSE, 3/8” X 4.33’ LP 1
18 606453 HOSE, 1/4” X 1.25’ LP 1
 RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS PARA
MANTENER EN EXISTENCIA
REF PART # DESCRIPTION QTY.
19 140325 CLAMP, EAR 1/2” S/S 2
20 150515 FITTING, BARB, 1/4MX1/4H 1
21 210033 VALVE, SOLENOID (120V 60HZ) 1
22 140023 WASHER, LOCK 2
23 140801 SCREW, 8–32X3/8 2
24 150406 ELBOW, 1/4” 1
25 150709 TEE, 1/4” 1
26 150403 FITTING, 1/4MX1/4F ELBOW, 45° 1
27 150516 FITTING, BARB, 1/4MX3/8H 1
28 140301 CLAMP, EAR 1
29 140916 CLAMP 1
30 140895 SCREW, 10–24X3/4 1
31 140552 NUT, LOCK 1
32 150517 FITTING, BARB, 1/4MX1/2H 1
33 150412 ELBOW, 3.8MX3/8H 1
34 700551 ASM., WIRE GROUND 9” 10X10 1
35 700141 HOSE, PUMP-OUT 1
