Nobles Frontier 608549 - Pump Breakdown

PARTS LIST
LISTA DE PIEZAS
33
Frontier Carpet Extractor (06–01)

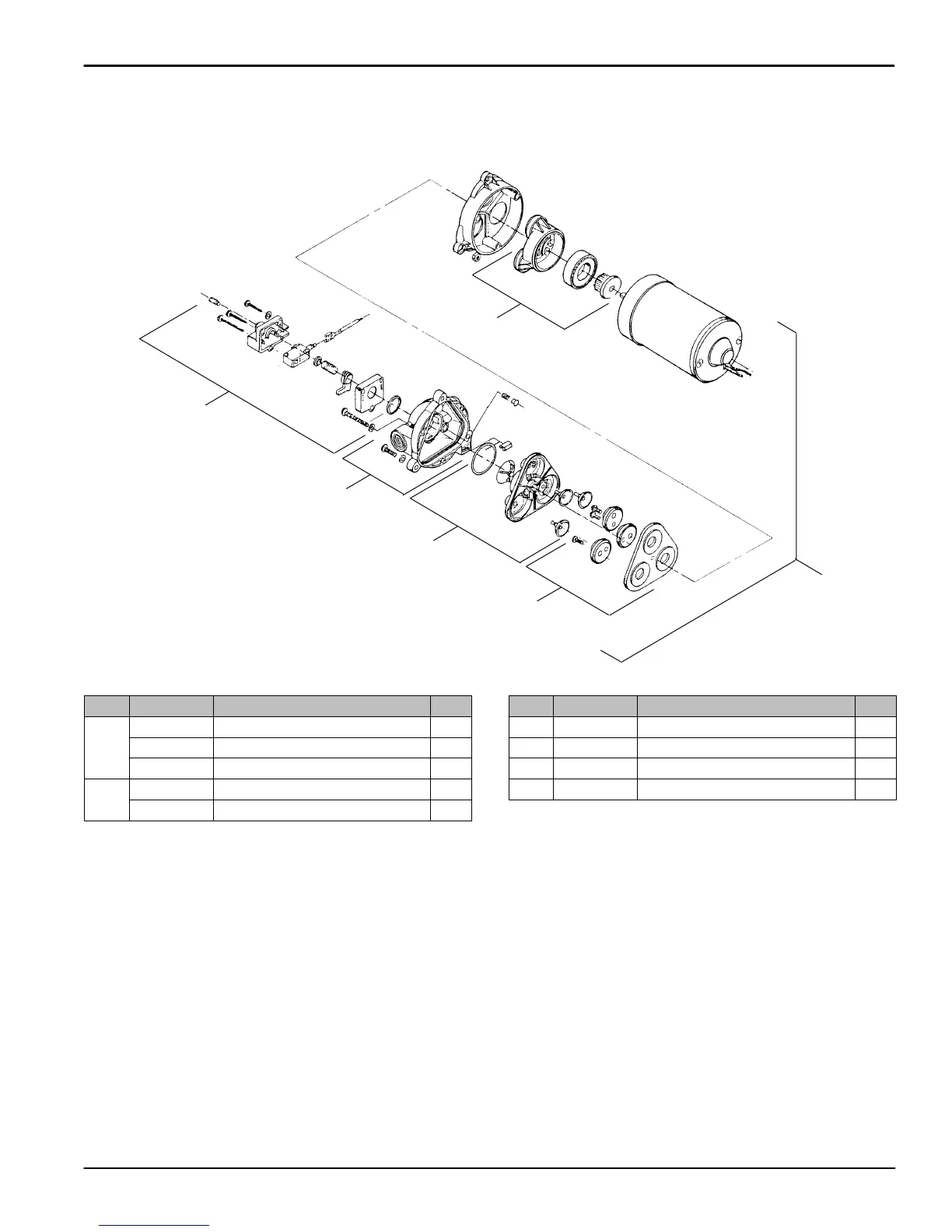

PUMP BREAKDOWN
CLASIFICACIÓN DE LA BOMBA
1
2
3
4
5
6
REF PART # DESCRIPTION QTY.
1 190129 KIT, PRESSURE SWITCH 1
190172 KIT, PRESSURE SWITCH (VITON) 1
190134 KIT, DIAPHRAGM ONLY 1
2 190128 KIT, UPPER PUMP HOUSING 1
190124 KIT, CHECK VALVE ONLY 1
REF PART # DESCRIPTION QTY.
3 190171 KIT, VALVE (VITON) 1
4 190131 KIT, SERVICE 1
5 190130 KIT, LOWER PUMP HOUSING 1
6 180103 PUMP, 100 PSI (120V) 1
