Nokia E52 User Manual

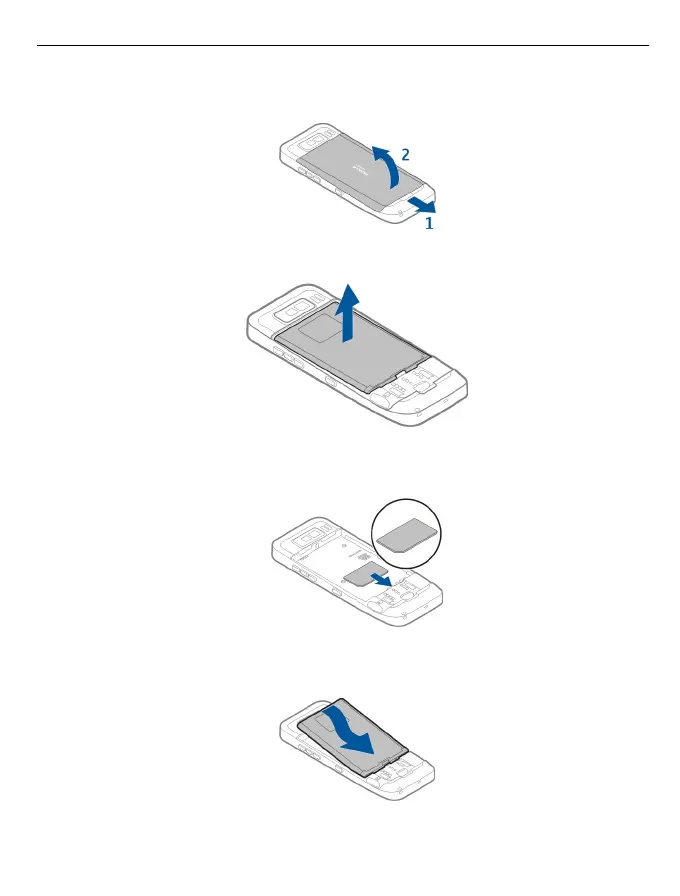

1 To open the back cover of the device, with the back facing you, unlock the back
cover release latch, and lift the back cover.
2 If the battery is inserted, lift the battery in the direction of the arrow to remove it.
3 Insert the SIM card. Ensure the contact area on the card is facing the connectors on
the device and that the bevelled corner is facing the bottom of the device.
4 Align the contacts of the battery with the corresponding connectors on the battery
compartment, and insert the battery in the direction of the arrow.
5 To replace the back cover, direct the top locking catches toward their slots, and
press down until the cover locks into place.
Get started 11

Nokia E52 Specifications

General

Technology	GSM / HSPA
2G bands	GSM 850 / 900 / 1800 / 1900
3G bands	HSDPA 900 / 2100
Speed	HSPA 10.2/2 Mbps
GPRS	Class 32
EDGE	Class 32
Dimensions	116 x 49 x 9.9 mm, 54 cc (4.57 x 1.93 x 0.39 in)
Weight	98 g (3.46 oz)
SIM	Mini-SIM
Display Type	TFT, 16M colors
Display Resolution	240 x 320 pixels, 4:3 ratio (~167 ppi density)
OS	Symbian OS 9.3, Series 60 v3.2 UI
Internal Memory	60MB
Alert types	Vibration; Downloadable polyphonic, MP3 ringtones
Loudspeaker	Yes
3.5mm jack	Yes
Bluetooth	2.0, A2DP
GPS	Yes, with A-GPS; Nokia Maps
Radio	Stereo FM radio, RDS
USB	microUSB 2.0
Browser	WAP 2.0/xHTML, HTML, Adobe Flash Lite
Java	Yes, MIDP 2.1
Talk time	Up to 8 h (2G) / Up to 6 h (3G)
Announced	2009, May
Display Size	2.4 inches
CPU	ARM 11
Card slot	microSDHC (dedicated slot)
Camera Single	3.2 MP
WLAN	Wi-Fi 802.11 b/g
Sensors	Accelerometer
Battery	Removable Li-Po 1500 mAh (BP-4L)
Stand-by	Up to 672 h (2G) / Up to 432 h (3G)
Colors	Metal Grey
SAR	0.79 W/kg (body)
