Nokia N900 Service Manual

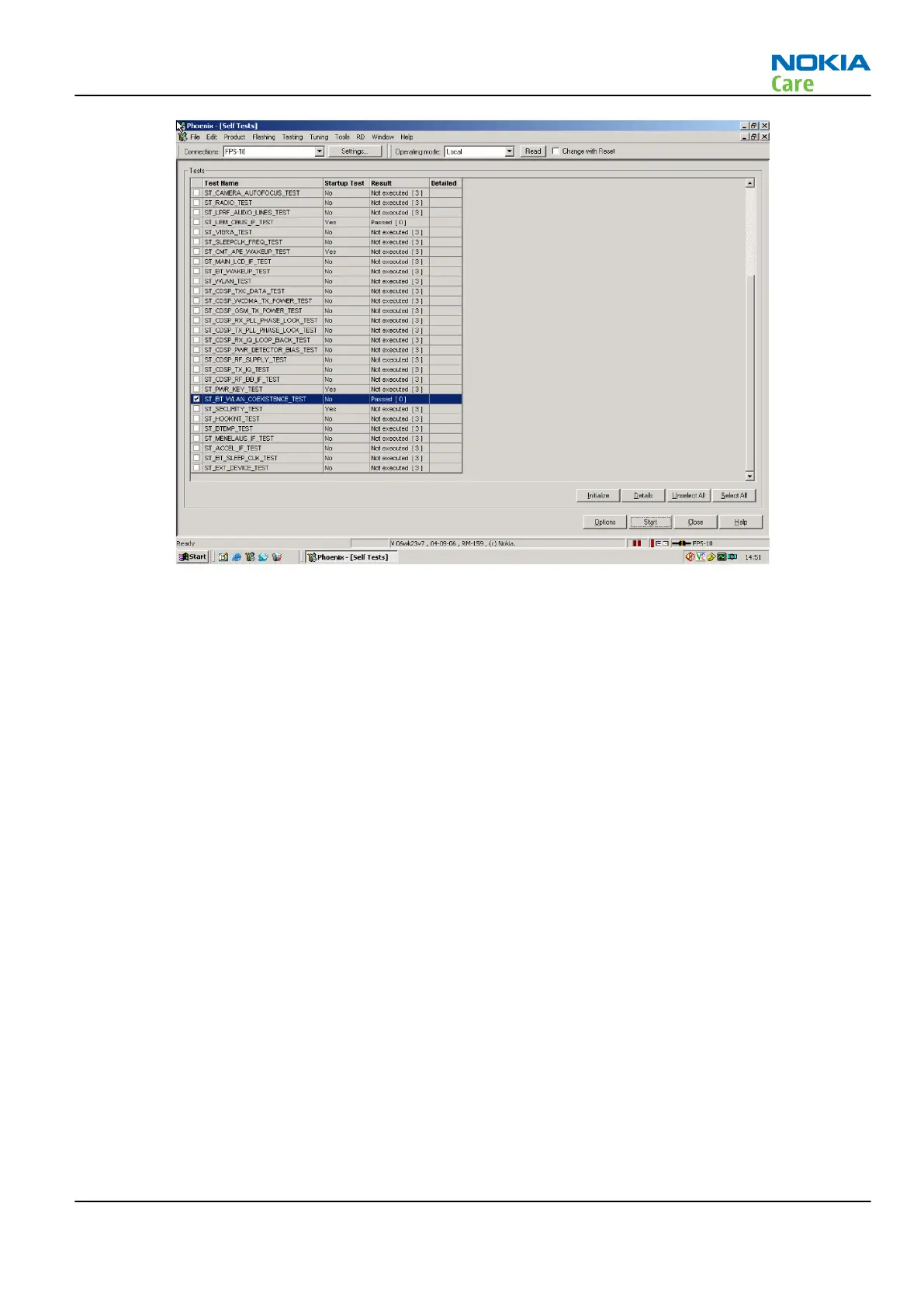

In summary these two Self tests provide a simple means of ensuring the Host engine is able to communicate
with the WLAN module and check the interface to BTH. More detailed WLAN performance test is covered in
WLAN functional test section.
WLAN functional tests
On/Off test
Prerequisites
A flash adapter connected to a PC with Phoenix service software is required.
From the testing toolbar select WLAN Configuration option. This opens the WLAN configuration dialogue
box below. Selecting the Power state option button (as indicated), the WLAN can be turned ON and OFF:
1 With Power State set to OFF, measure the dc power supply current consumption of the flash adaptor.
2 Next return the Power state to ON and re-measure the dc power supply current of the flash adaptor.
The difference between the currents in (1) and (2) should be between 190 to 220mA. When WLAN is ON, the
firmware has been downloaded and the WLAN module is in the receive state. When OFF WLAN is powered
down.
RX-51
BB Troubleshooting
Issue 1 COMPANY CONFIDENTIAL Page 3 –59
Copyright © 2009 Nokia. All rights reserved.
