Bluetooth audio signals are sent to and from the device using a PCM and UART interface. The Bluetooth RF
signal is routed via a buried track to the Bluetooth antenna on the side of the PWB. An RF filter is needed
between the Bluetooth antenna and Bluetooth ASIC to prevent interference to and from the celluar phone
antenna. Phones that have both Bluetooth and WLAN use a shared antenna, as both services occupy the
2.4GHz ISM frequency band. The co-existence signaling interface between Bluetooth and WLAN ASICs controls
the RF activity in the shared frequency band.
The audio signal from the FM radio is routed via the phone Audio ASIC to the phone headset or loudspeaker.
The external wired headset is also used as an Antenna for the FM radio. The FM radio receiver RF signal is
routed from the ASIC via a buried track to an impedance matching circuit placed near the headset connector.
The following block diagram shows how Bluetooth-FM is connected to the host engine.

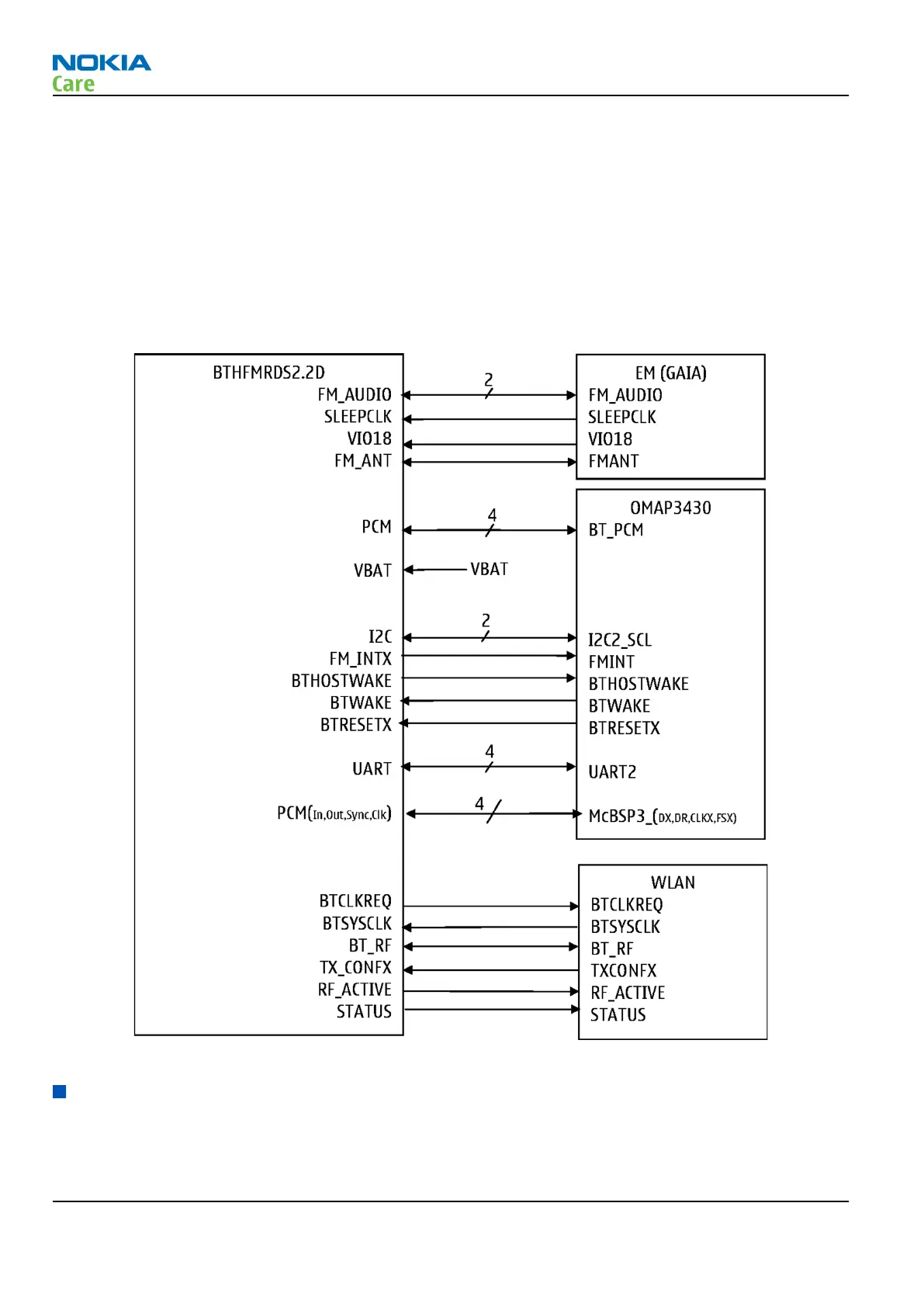

Figure 52 Bluetooth and FM radio block diagram
GPS module
RX-51 supports GPSCost4.0 release. GPS module is connected to cellular engine via I2C interface and GenIO
control signals. GPS clock configuration includes dedicated GPS TCXO and reference clock from Vapaus.
RX-51
System Module
Page 6 –12 COMPANY CONFIDENTIAL Issue 1
Copyright © 2009 Nokia. All rights reserved.

Nokia N900 Specifications

General

RAM	256 MB
Internal Storage	32 GB
Operating System	Maemo 5
Battery	Removable Li-Ion 1320 mAh battery (BL-5J)
Weight	181 g
Network	GSM / HSPA
SIM	Mini-SIM
GPU	PowerVR SGX530
Memory Card slot	microSD, up to 16 GB (dedicated slot)
Loudspeaker	Yes, with stereo speakers
3.5mm jack	Yes
GPS	Yes, with A-GPS; Ovi Maps
Sensors	Accelerometer, proximity, compass
Talk time	Up to 6 h 30 min (2G) / Up to 4 h 30 min (3G)
Display	3.5 inches, 800 x 480 pixels
Processor	TI OMAP 3430
Camera	5 MP
Dimensions	110.9 x 59.8 x 18 mm
Connectivity	Wi-Fi 802.11 b/g, Bluetooth 2.1
Radio	Stereo FM radio
Browser	HTML, Adobe Flash
