Nokia N900 - FM Transmitter Module

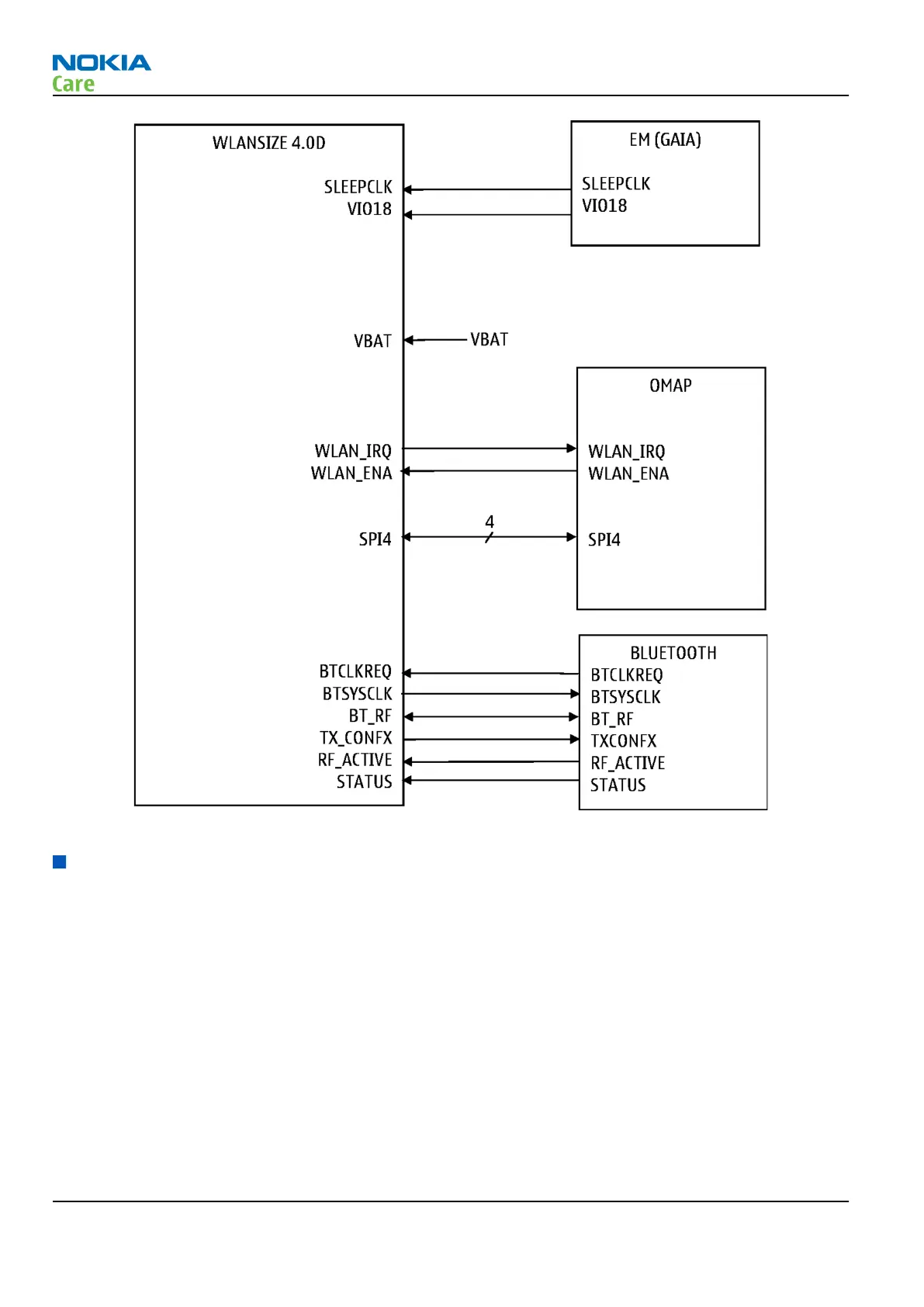

Figure 54 WLAN module block diagram
FM transmitter module
The FM transmitter module Si4713 is controlled by I2C from OMAP with left and right analog audio input from
the audio circuitry.
RX-51
System Module
Page 6 –14 COMPANY CONFIDENTIAL Issue 1
Copyright © 2009 Nokia. All rights reserved.
