Service concept for RF testing and RF/BB tuning

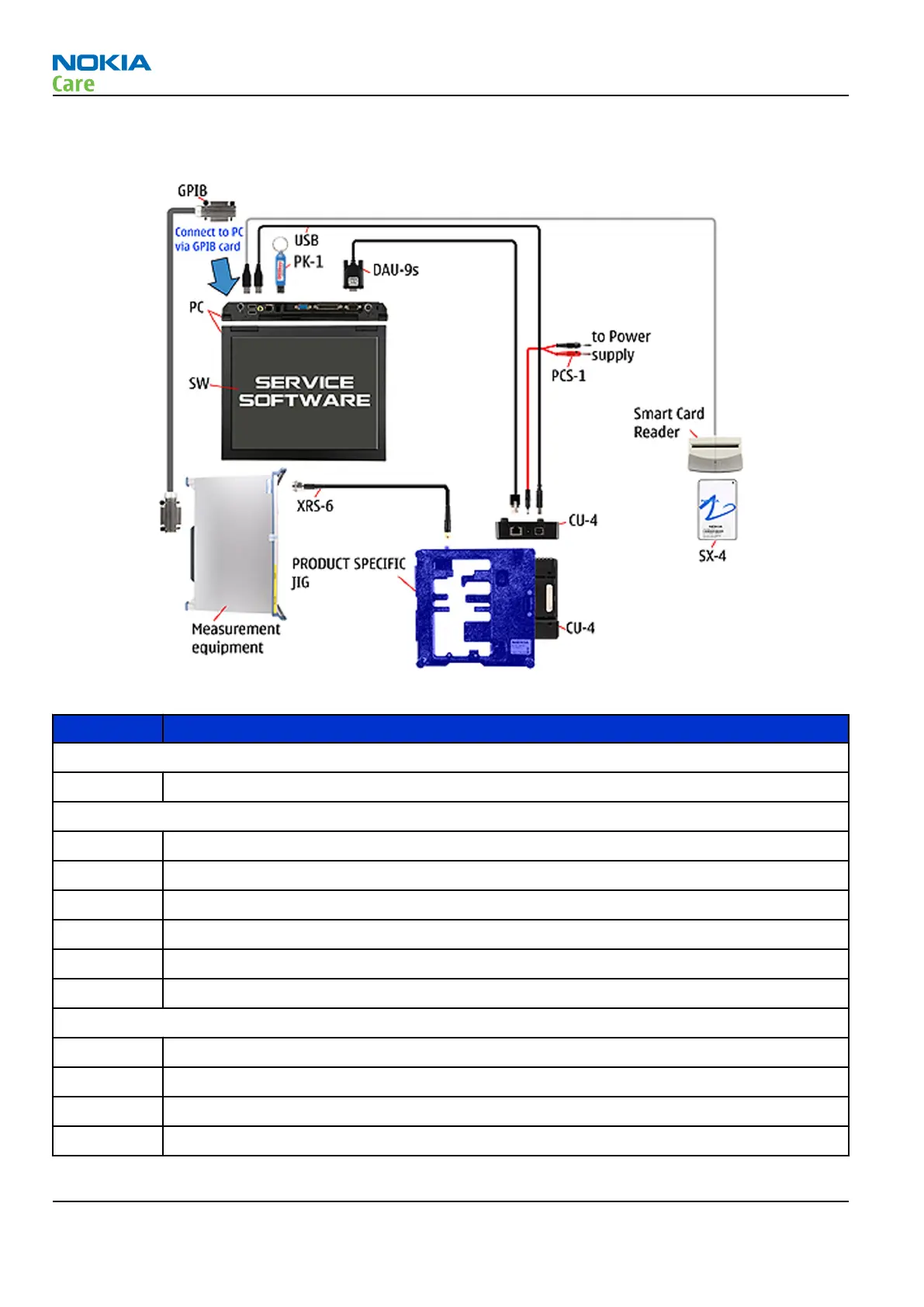

Figure 9 Service concept for RF testing and RF/BB tuning
Type Description
Product specific devices
MJ-174 Module jig
Other devices
CU-4 Control unit
PK-1/PKD-1 SW security device
SX-4 Smart card
Measurement equipment
Smart card reader
PC with Phoenix service software
Cables
DAU-9S MBUS cable
PCS-1 DC power cable
XRS-6 RF cable
GPIB control cable
RX-51
Service Tools and Service Concepts
Page 2 –20 COMPANY CONFIDENTIAL Issue 1
