The phone supports full speed (12 Mb/s) in device mode.
Charger interface
The charger interface is a 2 mm Dynamo charger plug. Older chargers with a 3.5 mm plug are supported via
the charger adapter cable CA-44.
Charging is controlled by GAZOO (N2200). Additional external components are needed for EMC purposes,
reverse polarity and transient protection of the input to the baseband module.

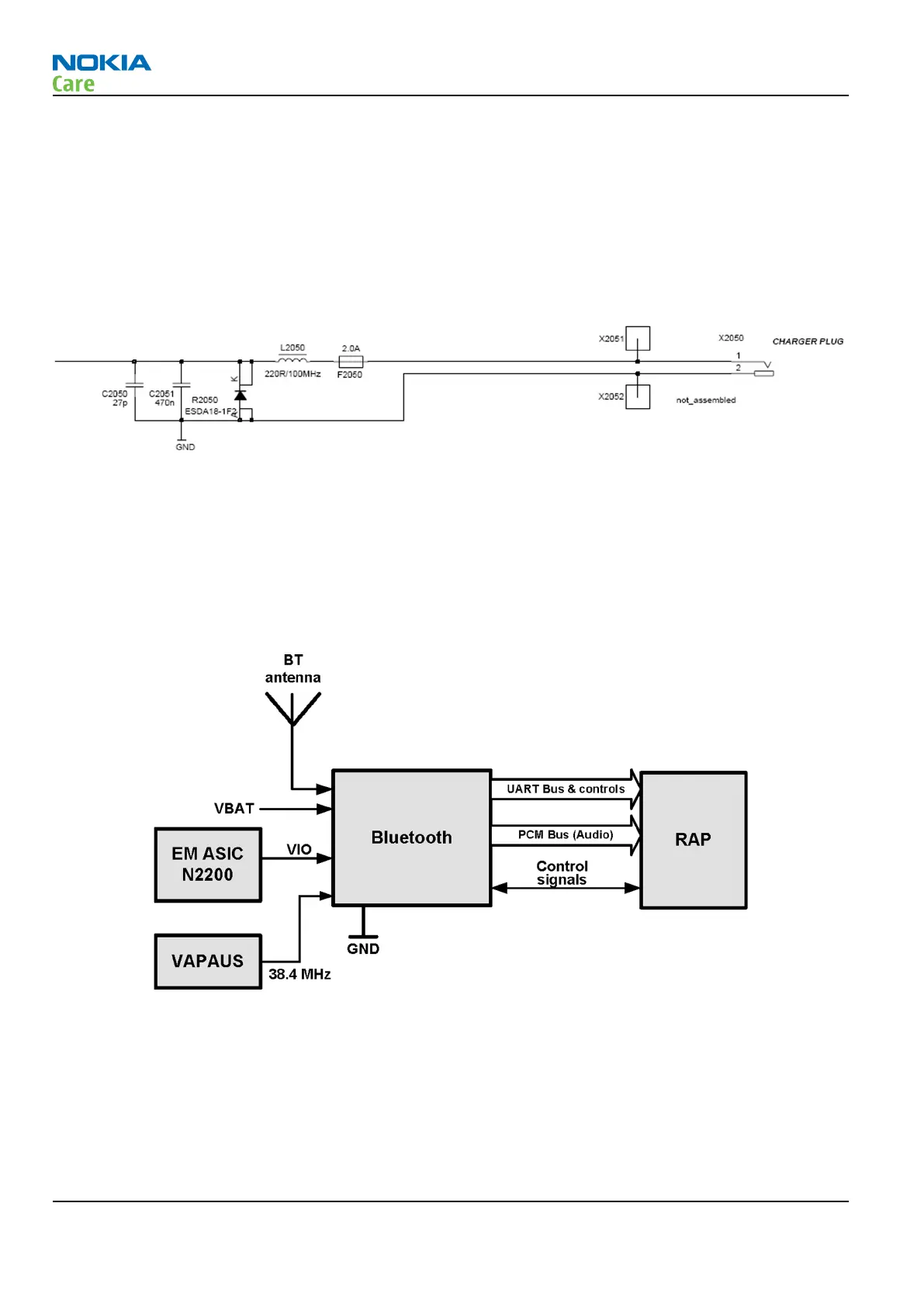

Figure 36 Charger interface
Bluetooth
Bluetooth provides a fully digital link for communication between a master unit (the phone) and one or more
slave units (e.g. a wireless headset). Data and control interface for a low power RF module is provided by the
module.
The Bluetooth is physically integrated with the FM radio into one single module. From a functional point of
view they, however, have nothing in common.
Figure 37 Bluetooth interface
The Bluetooth has a separate built in antenna and is powered by VBAT and the regulated voltage VIO. For
audio applications the Bluetooth has a PCM data bus. In addition a UART (universal asynchronous receiver/
transmitter) is used for data communication and controls.
FM radio
The FM radio is physically integrated with the Bluetooth into one single module. From a functional point of
view they, however, have nothing in common.
RM-509; RM-510; RM-511
System Module
Page 5 –14 COMPANY CONFIDENTIAL Issue 2
Copyright © 2009 Nokia. All rights reserved.
