Nokia RM-509 - Module Jig Service Concept

Type Description
PCS-1 Power cable
CA-89DS Service cable
Standard USB cable
USB cable

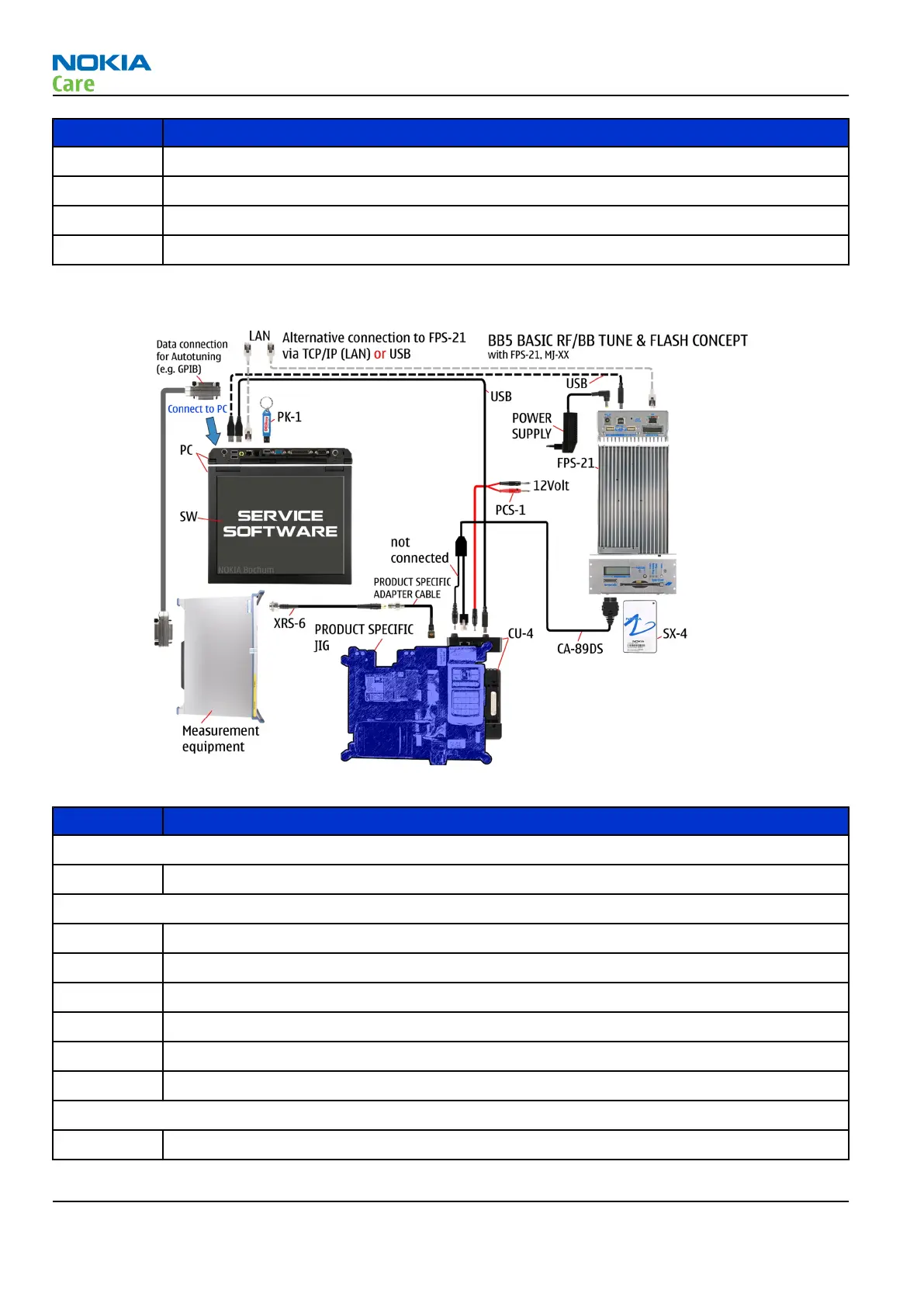

Module jig service concept
Figure 5 Module jig service concept
Type Description
Phone specific tools
MJ-212 Module jig
Other tools
CU-4 Control unit
FPS-21 Flash prommer box
PKD-1/PK-1 SW security device
SX-4 Smart card
PC with Phoenix service software
Measurement equipment
Cables
CA-128RS RF service cable (product-specific adapter cable)
RM-509; RM-510; RM-511
Service Devices and Service Concepts
Page 2 –18 COMPANY CONFIDENTIAL Issue 2
Copyright © 2009 Nokia. All rights reserved.
