GPS troubleshooting
GPS antenna
The GPS antenna covers the GPS band. The GPS antenna is a ceramic SMT type, mounted directly on the engine
PWB.

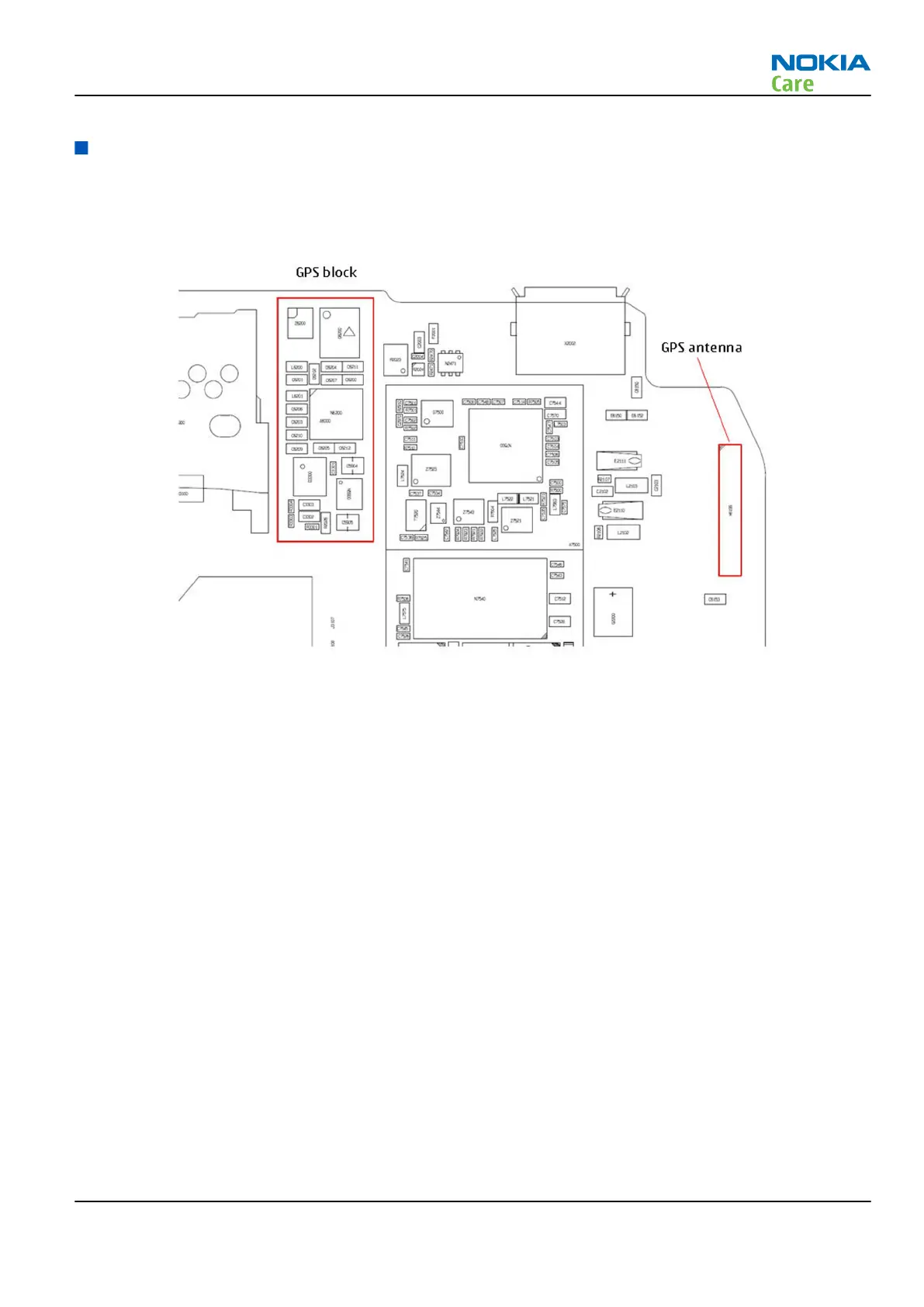

Figure 10 GPS antenna and GPS block location
