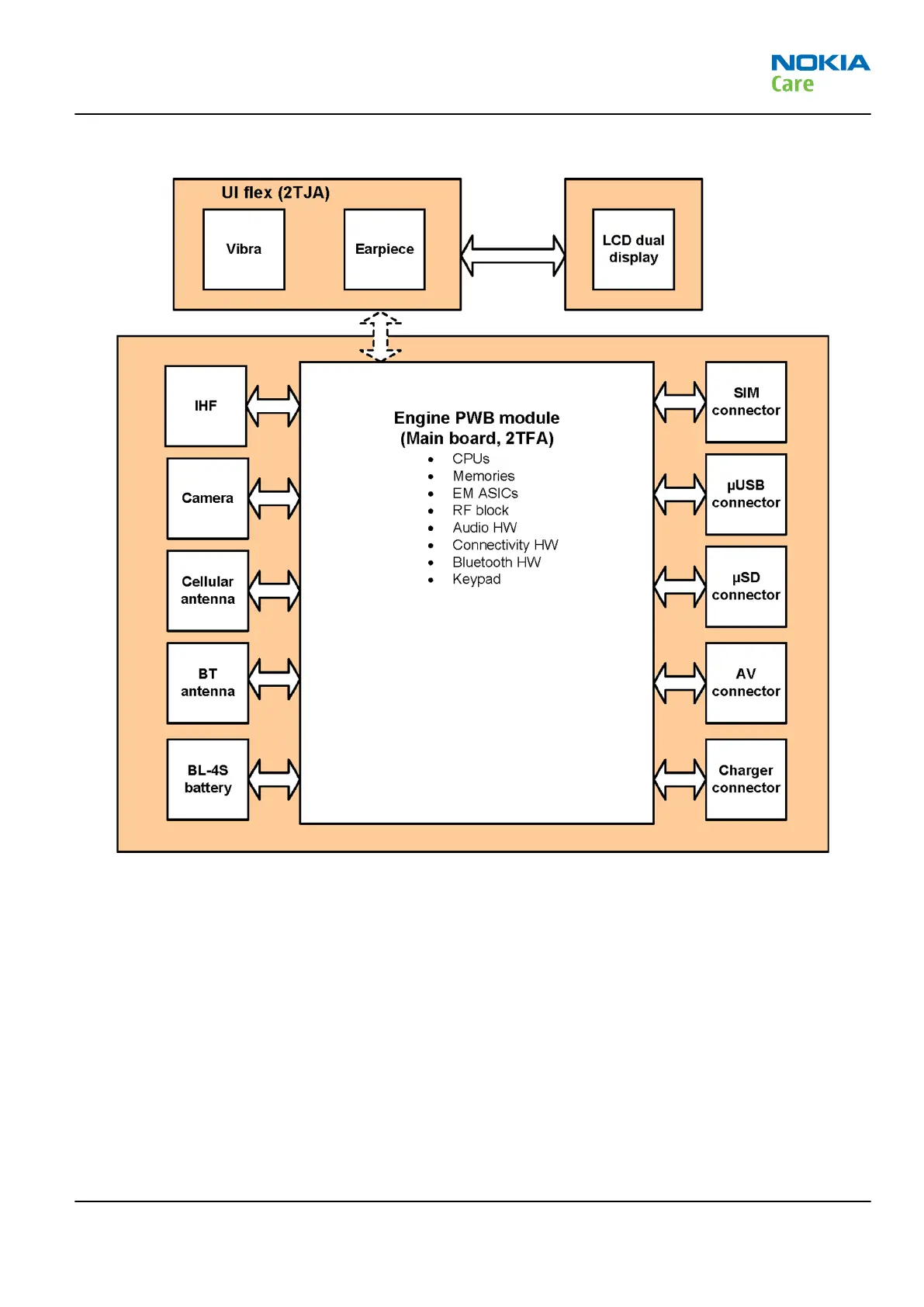

Board and module connections
Camera
The camera module is a SMIA65 2 Mpix module. The camera is connected directly to the baseband, no
hardware accelerator is used. Processing of the image is done by the phone processor.
The CCI-bus (Camera Command Interface) is an I2C-compatible interface that is used bidirectional to transfer
commands from BB to the camera and to get information of the camera register settings from the camera
to BB.
The CCP-bus (Compact Camera Port) is a unidirectional interface that is used to transfer the image data from
the camera to BB. It is a high speed differential interface. The camera is equipped with CCP class2 interface,
i.e. up to 650 Mbit/s. The device baseband supports CCP class0 (specified up to 208 MHz) and CCP2 (specified
up to 650 MHz). The camera is connected to the CCP2 intferface.
RM-509; RM-510; RM-511
Service information differences between RM-511 and
RM-509
Issue 2 COMPANY CONFIDENTIAL Page 6 –15
Copyright © 2009 Nokia. All rights reserved.
