11
FOR N87, N80-8, N100-5 HELMENTS ONLY – positioning the keypad
Important:
Installation of the keypad on the N87, N80-8, N100-5 helmets requires the use of the
“KEYPAD ADAPTER” accessory, which is included in the package.
LETTER ON THE ADAPTER COMPATIBLE HELMETS
A N100-5/PLUS, N87/PLUS
C N80-8

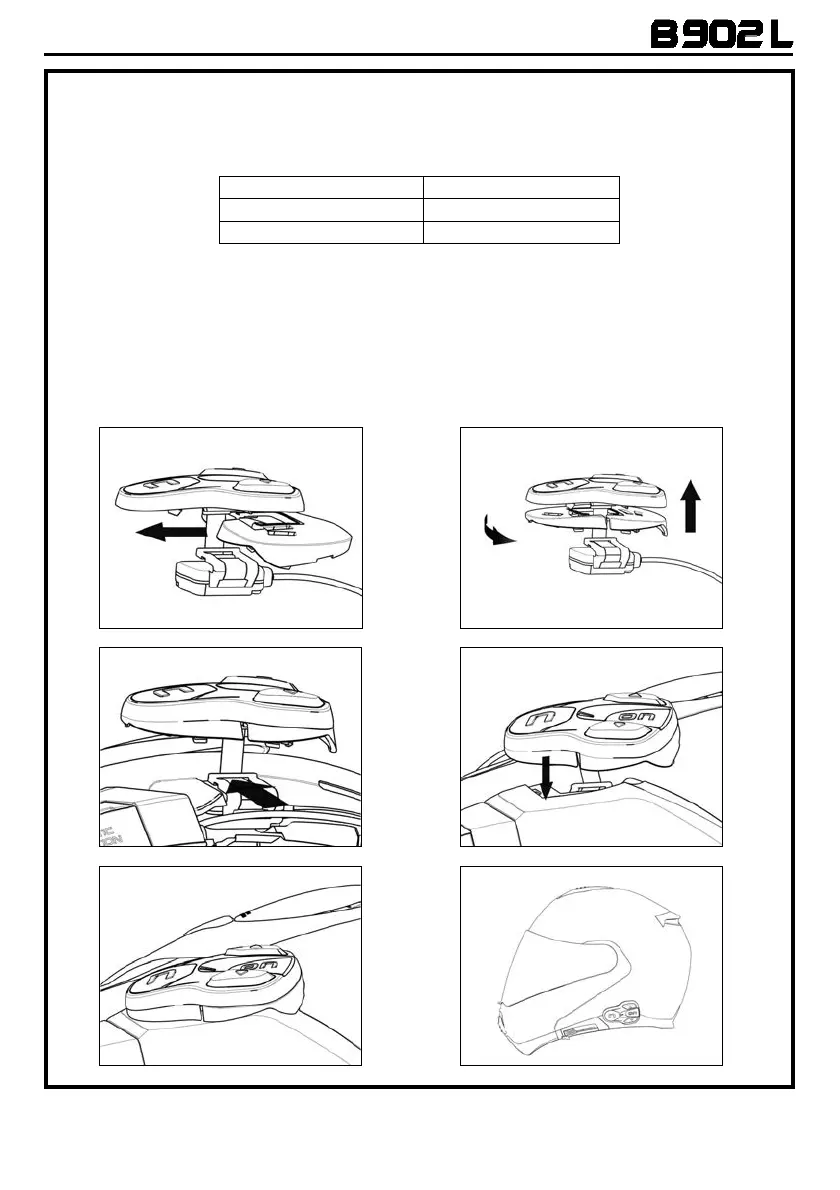

• Insert the support specific for your helmet in the flex cable of the keypad (Fig. 15).
• Rotate the keypad support so as to position it like in Fig. 16, then hook it to the keypad.
• Fix the cable inside the helmet and make sure the left fixing clip snaps into its housing (Fig. 17).
• Open the rubber cap of the B902L system.
• Reassemble the gasket and secure it with the specific screw.
• Hook up the keypad to the helmet by clicking in the relevant hooks (Fig. 18).
• The proper positioning of the keypad is illustrated in Fig. 19 and in Fig. 20.
Fig. 15
Fig. 16
Fig. 17
Fig. 18
Fig. 19
Fig. 20
