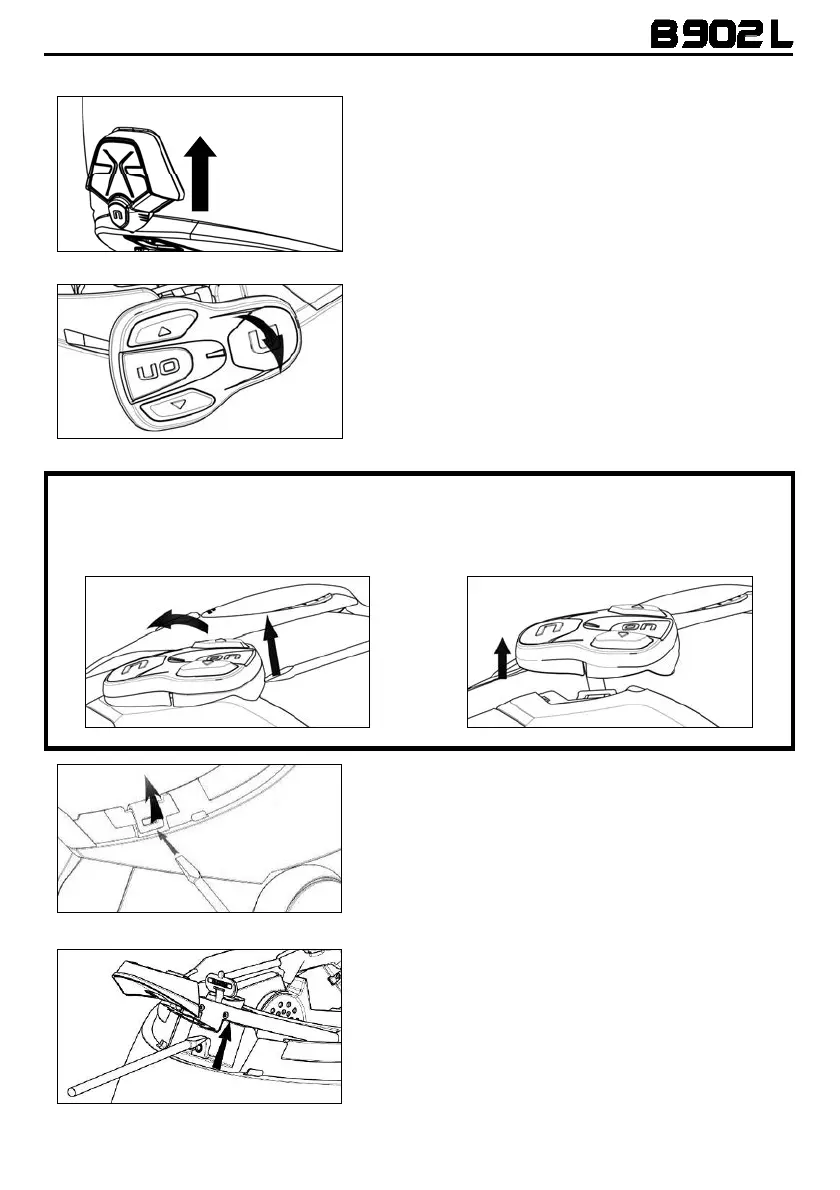

Removing the B902L system from the helmet
Fig. 36
Proceed as follows to remove the B902L system
from the helmet:
• Push the ESS light upward to release it from
the adapter and have free access to the shell
edge gasket (Fig. 36).
Fig. 37
• Remove the cheek padding and the shell
gasket.
• Remove the keypad from the shell, as shown
in Fig. 37.
FOR N87, N80-8, N100-5 HELMENTS ONLY – removing the keypad
• Remove the keypad from the shell, as indicated in Fig. 38.
• Rotate the keypad in a counterclockwise direction (Fig. 39).
• Remove the cheek padding and the shell gasket.
Fig. 38
Fig. 39
Fig. 40
• Unhook the right and left clips from the
shell, levering upward using a flat head
screw (or a similar tool), as shown in figure
40.
Fig. 41
• Completely remove the B902L system from
helmet using a flat head screwdriver (or
similar tool) and re-install the cheek padding
and the edge gasket.
To Next Page
