Nomadic L500 - Projection Dimensions

19

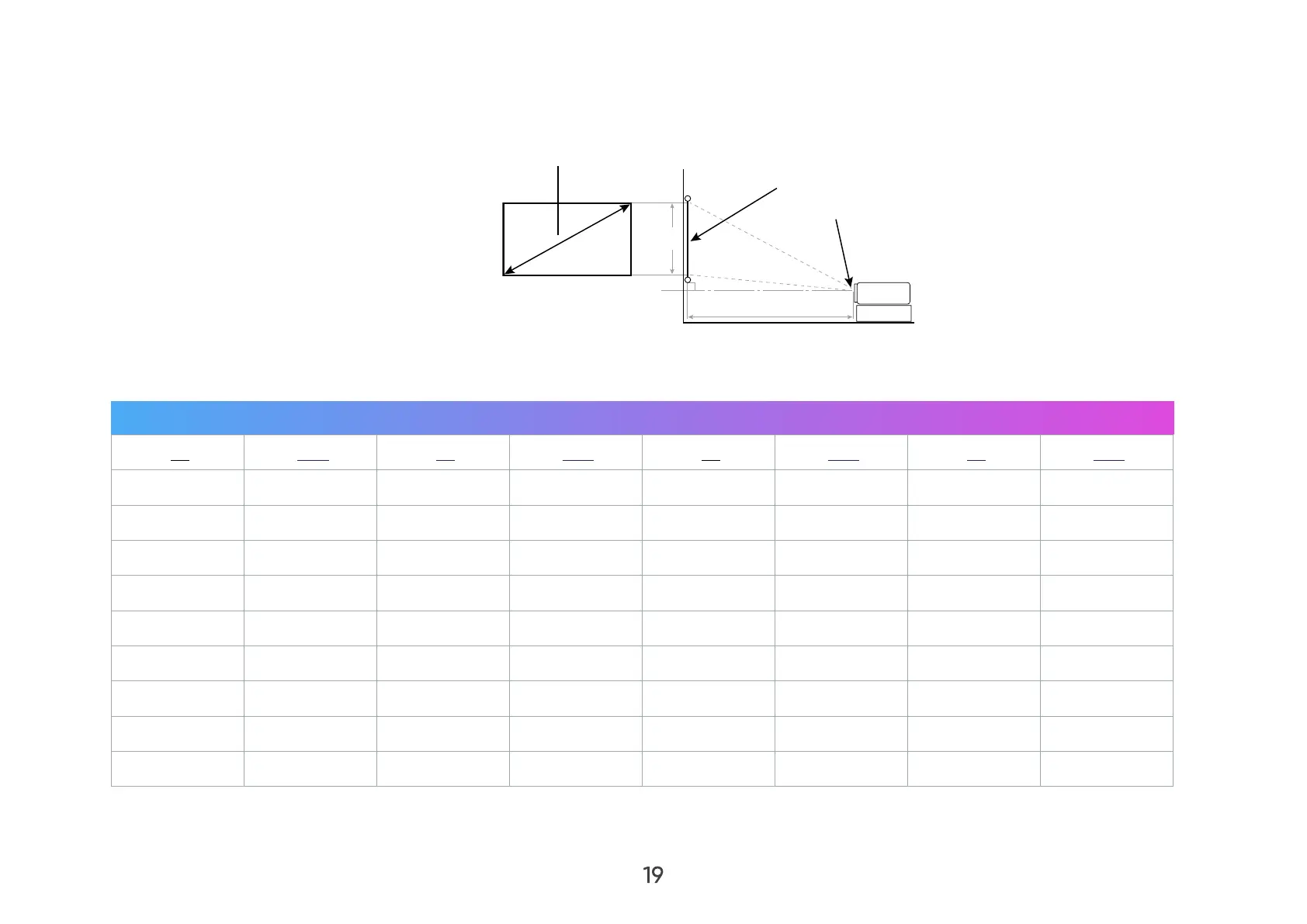

Projection Dimensions
• 16:9 Image on a 16:9 Screen
(a)
(c)
(e)
(f)
(b)
NOTE: (e) = Screen / (f) = Center of Lens
16:9 Image on a 16:9 Screen
(a) Screen Size (b) Projection Distance (c) Image Height Image Width
in. mm in. mm in. mm in. mm
40 1016 41.85 1063 19.4 494 34.86 886
60 1524 62.75 1594 29.2 742 52.29 1328
80 2032 83.66 2125 38.9 987 69.73 1771
90 2286 94.13 2391 44.13 1121 78.44 1992
100 2540 104.60 2657 49.01 1245 87.16 2214
110 2794 115.03 2922 53.93 1370 95.87 2435
120 3048 125.51 3188 58.81 1494 104.59 2657
150 3810 156.88 3985 73.54 1868 130.74 3321
180 4572 188.26 4782 88.18 2240 156.92 3986
NOTE: It is recommended that if you intend to permanently install the projector to physically test the projection size and
distance using the actual projector before you permanently install it.
