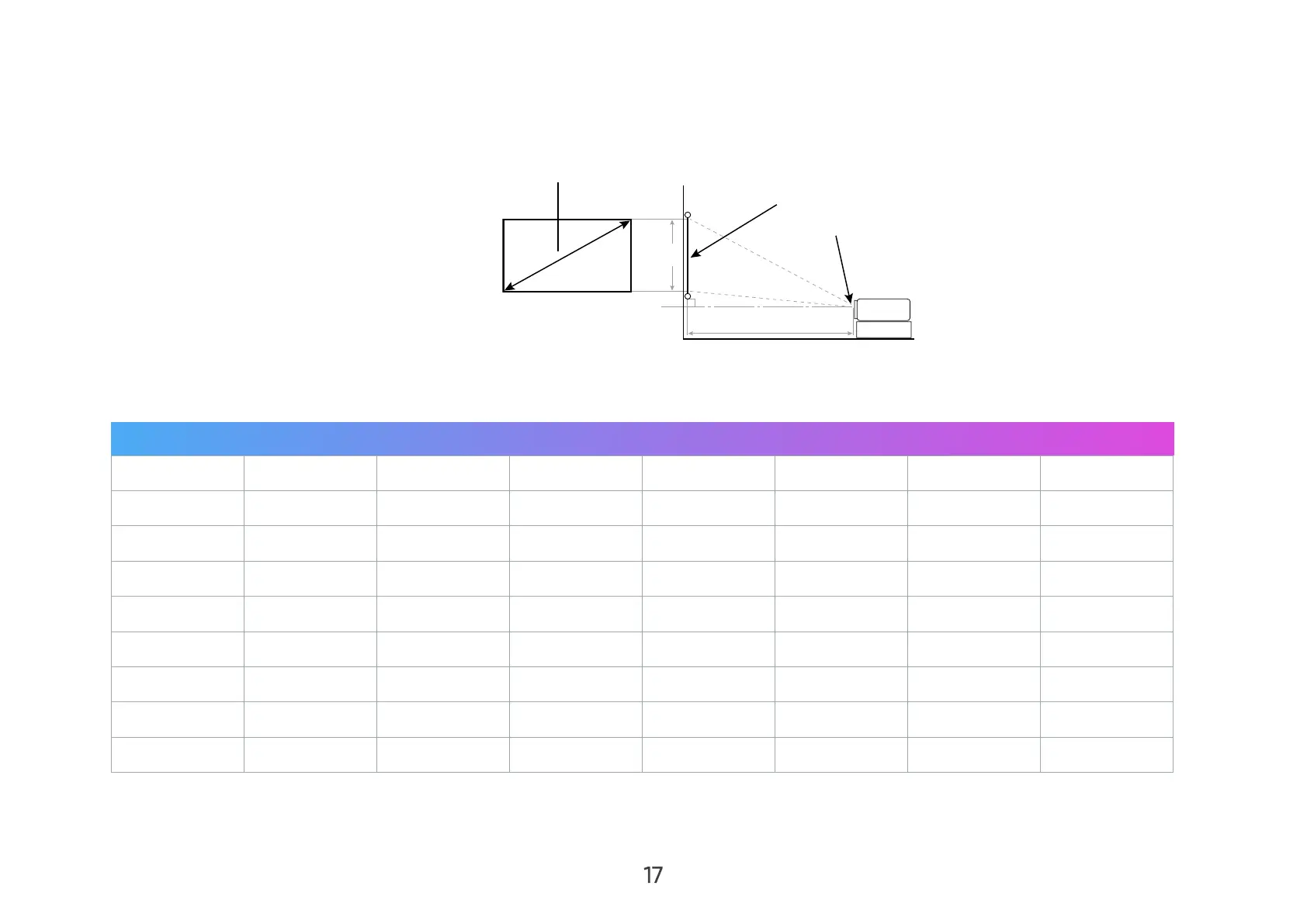

Projection Dimensions
• 16:9 Image on a 16:9 Screen
(a)
(c)
(e)
(f)
(b)
NOTE: (e) = Screen / (f) = Center of Lens
16:9 Image on a 16:9 Screen
(a) Screen Size (b) Projection Distance (c) Image Height Image Width
in. mm in. mm in. mm in. mm
40 1016 38.78 984.97 19.61 498.11 0.05 1.27
50 1270 49. 3 9 1254.46 24.51 622.63 0.05 1.27
60 1524 60 1523.95 29.42 747.16 0.05 1.27
70 1778 70.61 1793.44 34.32 871.68 0.05 1.27
80 2032 81.22 2062.93 39.22 996.21 0.05 1.27
90 2286 91.83 2332.42 44.12 1120.74 0.05 1.27
100 2540 102.44 2601.91 49.03 1245.26 0.05 1.27
110 2794 113.05 2871.41 53.93 1369.79 0.05 1.27
NOTE: There is a 3% tolerance among these numbers due to optical component variations. It is recommended to physically
test the projection size and distance before permanently installing the projector.
