Nor-Del HD+ - Rear Panel Overview

11

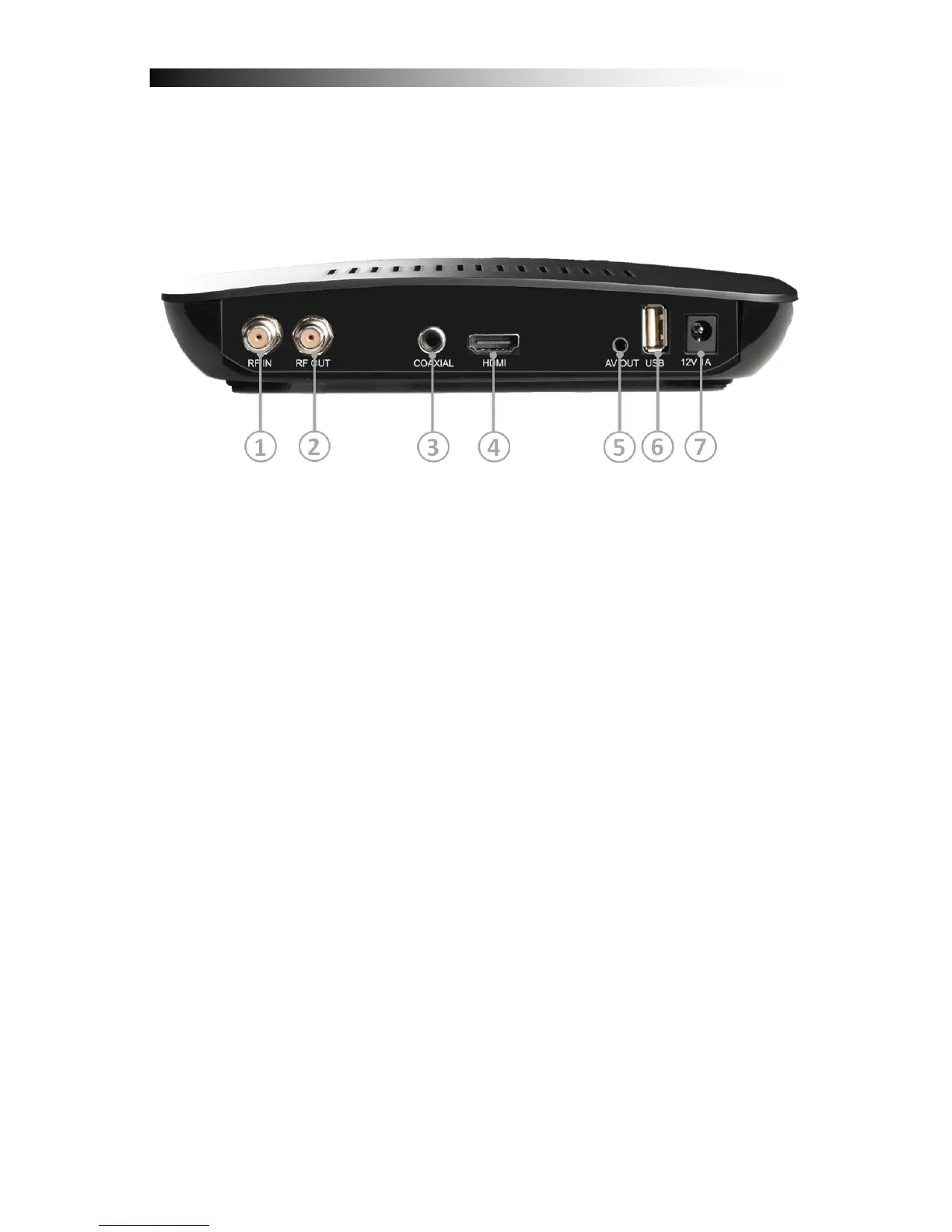

5.3 Rear Panel
No. Name FUNCTION
1 CABLE IN
Input for Cable Signal
2 LOOP OUT Loop Through for Cable Signal
3 S/PDIF Coax. Digital Audio Output coaxial
4 HDMI High-Definition Digital Video/Audio Output
5 AV OUT Audio and Video Output
6 USB USB 2.0 Port
7 12V = 1A Connection for external Power Supply
