Norcold N3150 - Page 19

Installation and Owner’s Manual 19
- Make sure the bafe is the full width of the inside of the enclosure.
The front bafe [13] completes the combustion seal at
the top of the refrigerator. Make sure that the bafe
is sealed around all edges (against the top edge of
the refrigerator, against the enclosure side walls, and
against enclosure ceiling in front of the vent). See also
section entitled “Combustion Seal”.

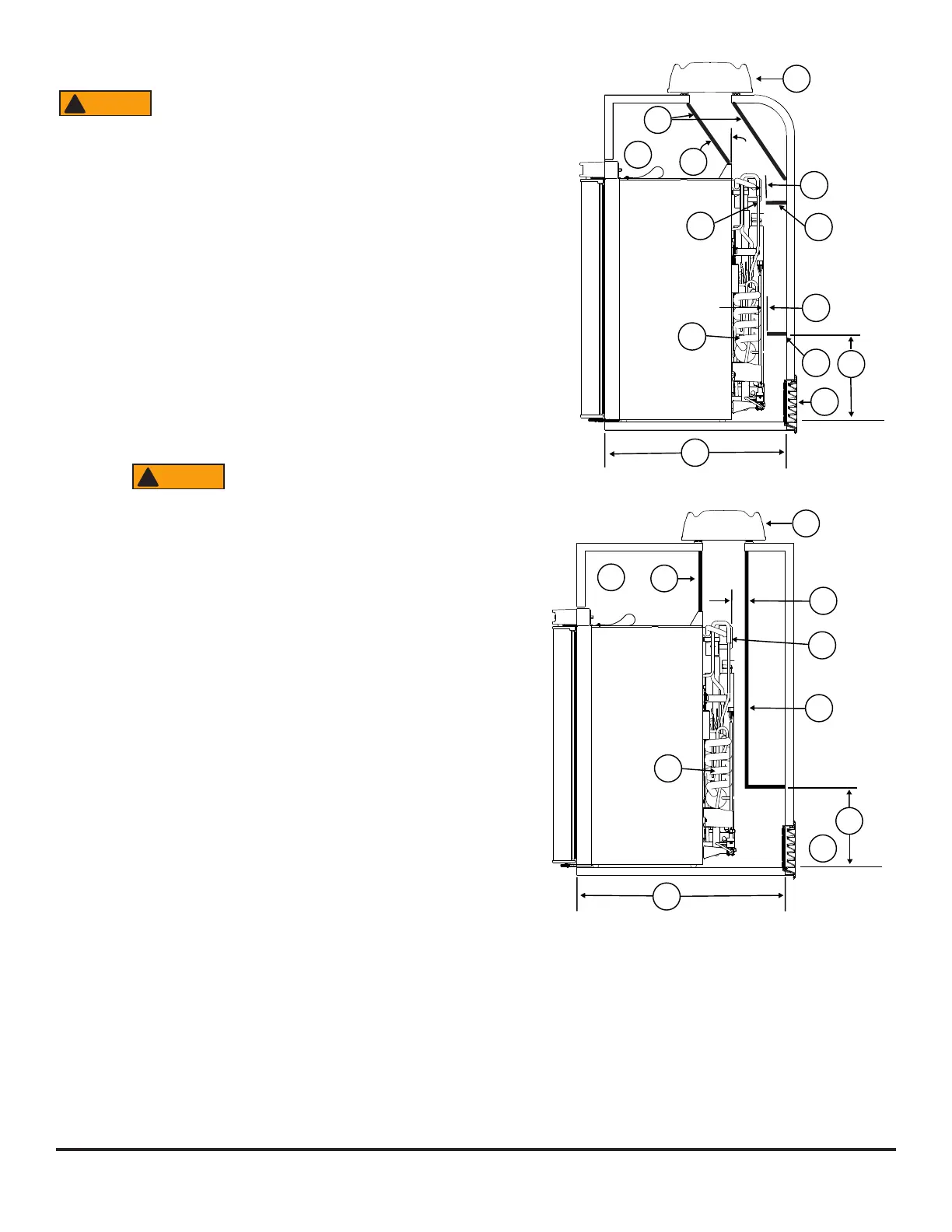

- If the design of the vehicle does not allow you to install the roof exhaust vent
directly above the condenser [11] of the refrigerator (See Art02338):
- Align the roof exhaust vent [12] above the condenser [11] of the
refrigerator and move it inboard as necessary.
- Install two bafes [13] to prevent stagnant hot air in the area [14] above
the refrigerator.
- Make sure the bafes are the full width of the inside of the
enclosure.
- Make sure that the bafes are no more than 45° from vertical [20].
- Put one bafe between the top rear edge of the refrigerator and the
inside edge of the upper exhaust vent opening.
The front bafe [13] completes the
combustion seal at the top of the refrigerator.
Make sure that the bafe is sealed around
all edges (against the top edge of the
refrigerator, against the enclosure side
walls, and against enclosure ceiling
in front of the vent). See also section
entitled “Combustion Seal”.
- Put the other bafe between the outside edge of the upper
exhaust vent opening and the side wall of the vehicle.
- If the depth of the enclosure is 20 3/8 inches or more and is less than
21 3/8 inches [27], no bafes are necessary at the rear of the enclosure.
WARNING
!
WARNING
!
Art02338
9
17
27
10
16
16
19
19
11
13
12
14
20
9
17
27
10
19
21
11
13
12
14
Art02341
