Norcold N4000 - Key Refrigerator Dimensions; Assemble the Enclosure for the Refrigerator

Installation and Owner’s Manual 18
These clearances plus the lower and upper vents cause the natural air draft that is necessary for good refrigeration. Cooler air comes
in through the lower vent, goes up around the refrigerator coils where it removes the excess heat from the refrigerator components, and
goes out through the upper vent. If this air ow is blocked or decreased, the refrigerator will not cool correctly.
Each NORCOLD model is certied by CSA International for correct ventilation. Install only the certied vents that are listed in this
manual.
Key Refrigerator Dimensions
Height* Width Depth* Total Volume Freezer Volume Net Weight
(in.) (in.) (in.) (cu. ft.) (cu. ft.) (lb.)
N4104Axx 32 5/16 20 11/16 23 3/8 3.7 0.39 61
N4150Axx 49 1/16 20 11/16 22 7/8 5.3 0.88 85
N4141Axx 59 1/16 16 15/32 22 3/32 5.0 0.52 84
* Height dimension includes feet. Depth dimension includes the door.
Assemble the Enclosure for the Refrigerator

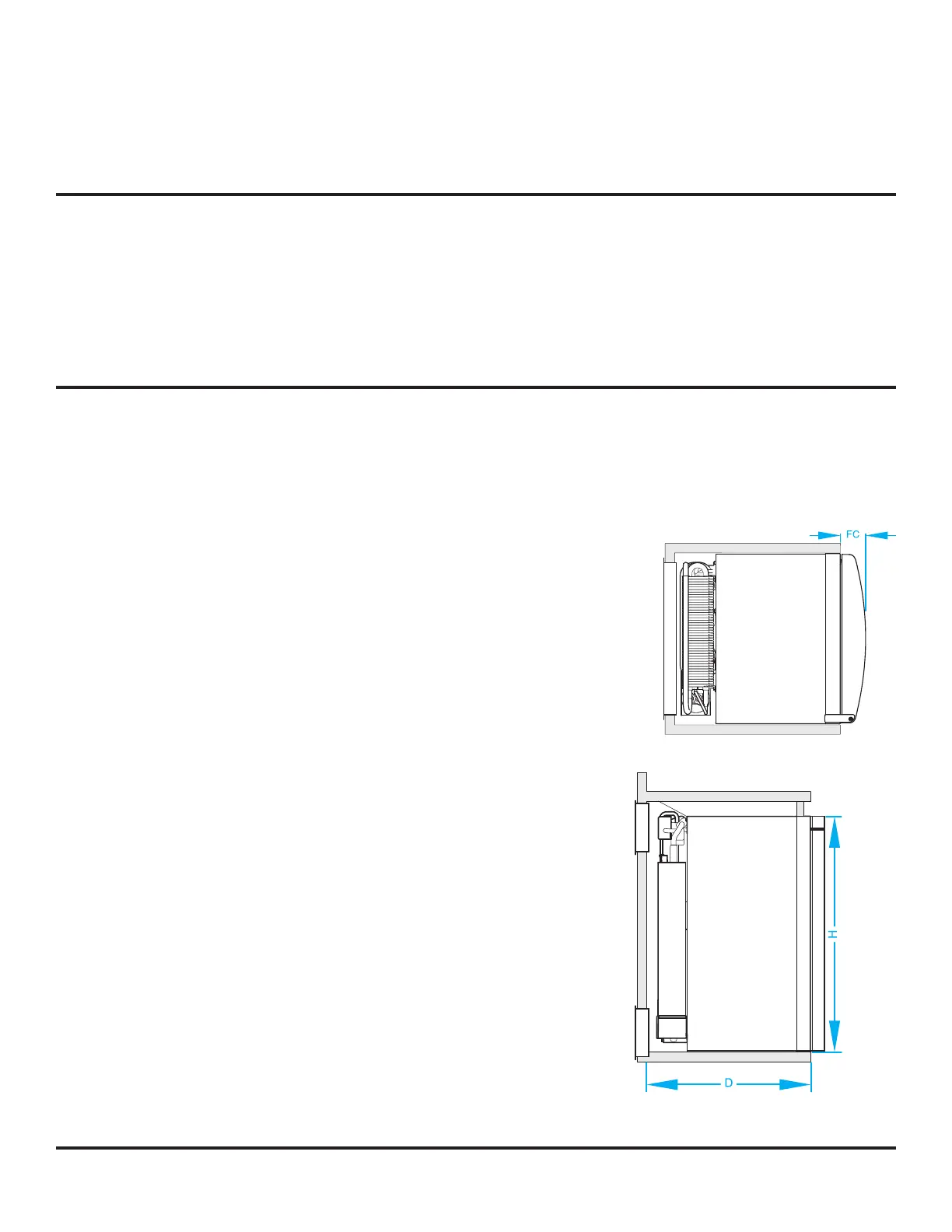

1. Use the table below, and associated gures, to determine the enclosure size.
Model Height Width Depth Door Depth
(in.) (in.) (in.) “FC” (in.)
N4104Axx 32 1/2 20 13/16 min. to 20 15/16 max. 20 3/8 min. 3 1/16
N4150Axx 49 3/16 20 13/16 min. to 20 15/16 max. 19 7/8 min. 3 1/16
N4141Axx 59 3/16 16 5/8 min. to 16 3/4 max. 21 1/16 min
2. Make sure the oor is solid and level.
- The oor must be metal or a wood panel and extend the full width and depth of the
enclosure.
- The oor must be able to support the weight of the refrigerator and its contents.
- The Minimum distance between the bottom of the enclosure and the oor is 12mm.
(N4141Only)
3. Make sure there are no adjacent heat sources such as a furnace vent, a hot
water heater vent, etc.
4. If there is more than 1/2 inch between either side of the refrigerator and the
inside of the enclosure:
- Fill the space with berglass insulation or add a ba󰀪e to eliminate the excess
clearance.
- Make sure that the batt-type insulation extends from the enclosure face, to the
combustion seal at the rear of the refrigerator cabinet.
- Securely attach the batt-type insulation to the enclosure so that it remains in this
position during refrigerator installation, if it becomes wet, and in windy conditions.
