Installation Manual 13
- Remove and save the screw [41] from the front box [68] (See Art01573).
- Pull the front box away from the refrigerator and out from under the controls [69].
- Reverse the front box and put it on the opposite side of the controls.
- Attach the front box to the refrigerator with the screw.
- Put the strike plate on the opposite side of the refrigerator [65b].
- Put the two round plastic caps into the holes that are near the strike plate.
3. Change the position of the door handles (See Art01727):
- Remove the screws [41] and door handle [70] from each door.
- Reverse each door handle and put the lower door handle on the upper door and the
upper door handle on the lower door.
- Attach each door handle with the screws.
4. Reinstall the doors (See Art01726):
- Turn the lower hinge pins into the lower cabinet hinges.
To prevent damage to the threads of the hinge pins, turn the hinge pins by
hand until tight and then tighten with a screwdriver.
Apply Loctite removable thread locker (blue) to the threads of the
hinge screws before assembly to prevent loosening during use.
Do not allow Loctite to contact any of the plastic surfaces of the
refrigerator because it can damage those surfaces.
- Put each door down onto the lower hinge pin.
- Align the holes in the upper hinges and hold in this position.
- Turn the upper hinge pin into the hinges of each door.
- Tighten the hinge pins.
- Put the storage bins in the doors.

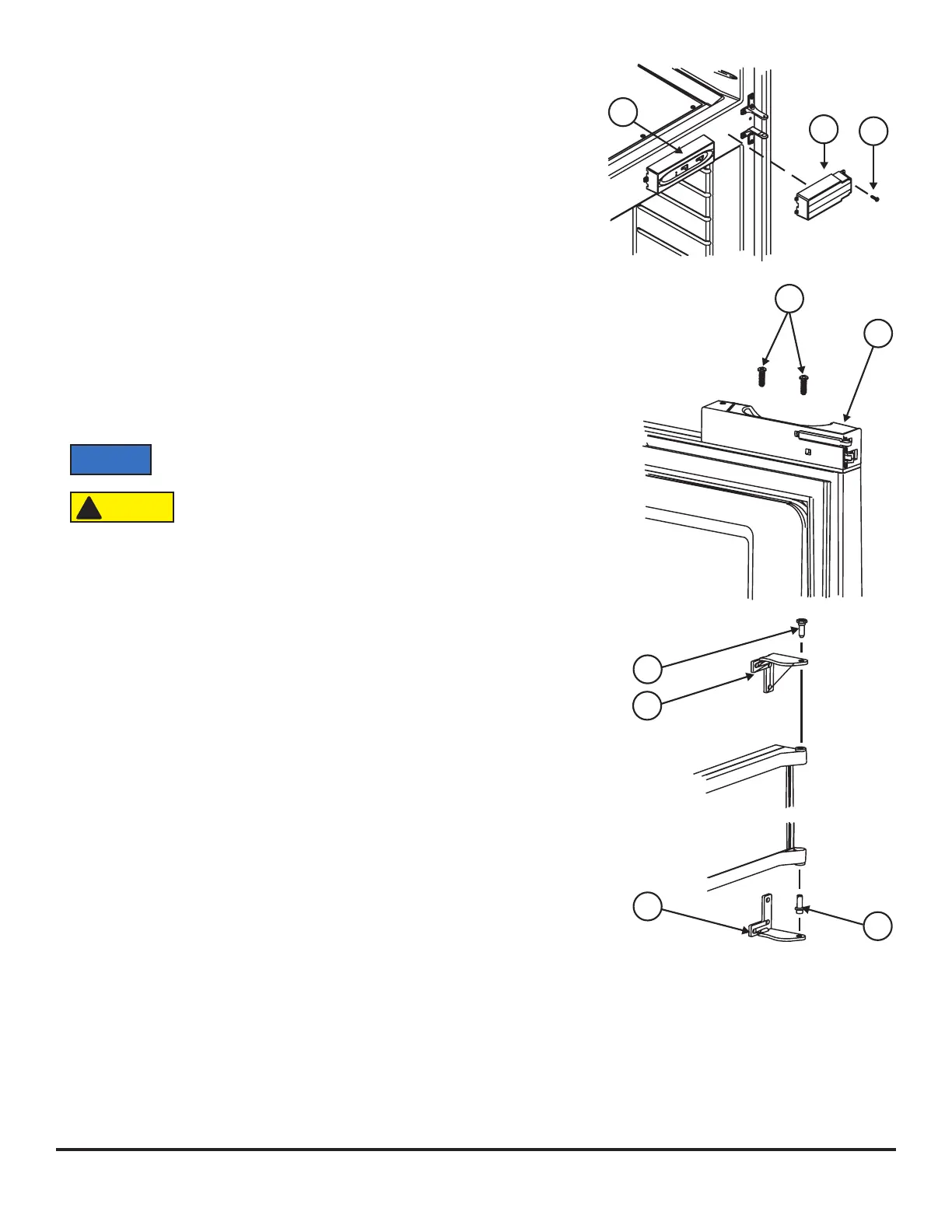

Art01573
69
41
68
66
Art01726
63
64
67
41
70
