Installation Manual 7
3. Install the upper exhaust vent:
Make sure that no sawdust, insulation, or other construction debris is on the refrigerator or in the enclosure.
Debris can cause a combustion hazard and prevent the refrigerator from operating correctly.
Tighten the screws of the upper roof exhaust cap to 10 inch-pounds max. Also make sure that the air ow around the
upper roof exhaust cap is not blocked or decreased by other roof mounted features such as a luggage carrier, an air
conditioner, a solar panel, etc.
- If the design of the vehicle allows, install the roof exhaust vent [12] directly above the condenser [11] of the refrigerator (See
Art01598).
- Install a bafe [13] to prevent stagnant hot air in the area [14] above the refrigerator.
- Make sure there is less than 1/4 inch clearance [715] between the bafe and the top of the refrigerator.
- Make sure the bafe is the full width of the inside of the enclosure.
- If the design of the vehicle does not allow you to install the roof exhaust vent directly above the condenser [11] of the refrigerator
(See Art01599).
- Align the roof exhaust vent [12] above the condenser [11] of the refrigerator and move it inboard as necessary.

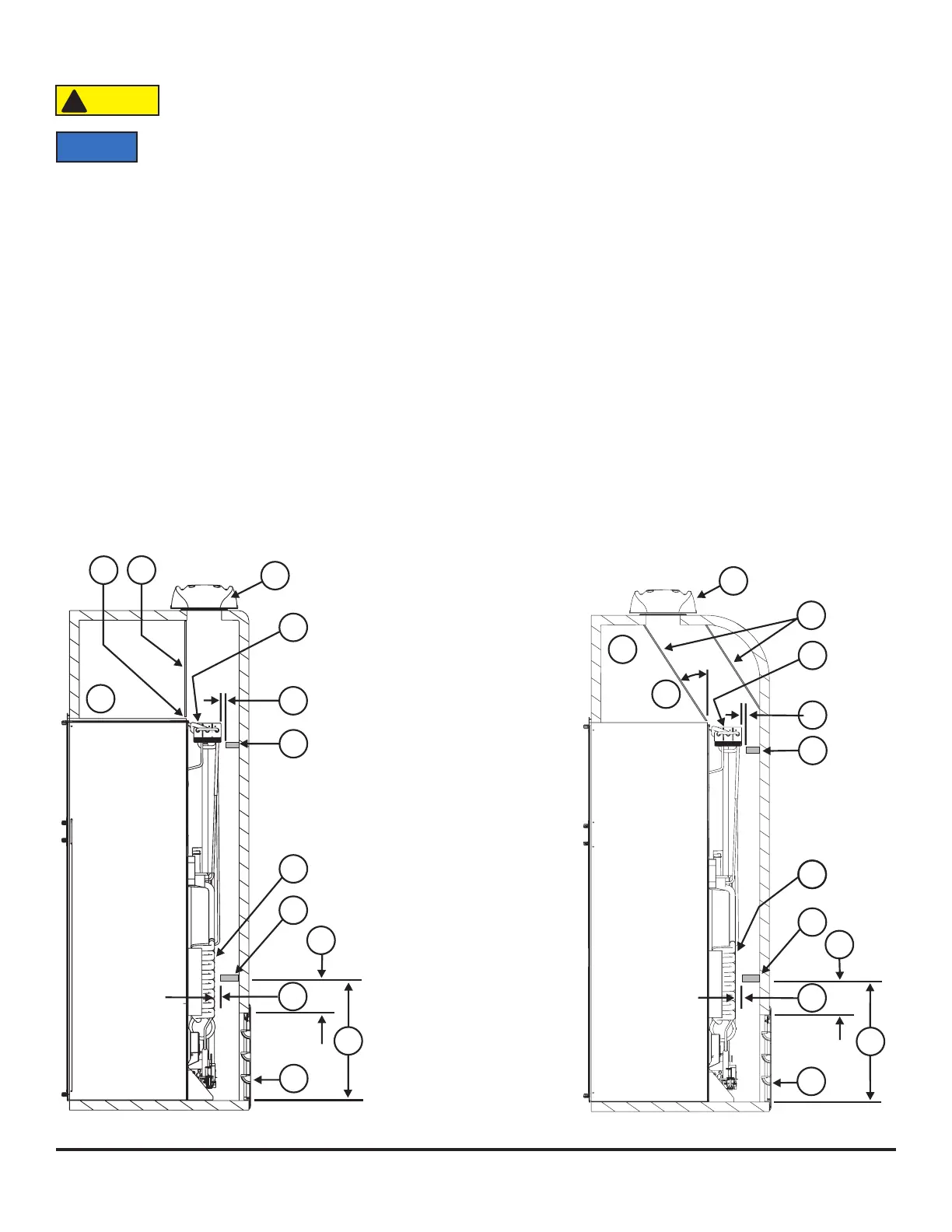

Art01598
14
9
11
12
13
15
16
10
17
18
15
15
16
Art01599
20
14
13
12
11
16
9
10
18
17
19
16
19
