Introduction, cont’d.
Model Number Codes
Explanation
1
N = Norcold
2
X = Sequence number indicating
custom features / aftermarket XA /
3
3 = Approximate storage volume in
cubic feet
4
X = Sequence number indicating
custom features
5
Blank = 2-Way Model
.3 = 3-Way Model
6
Blank = Without icemaker
IM = With icemaker
7
Low Ambient Operation:
Blank=Not Equipped
C=Is Equipped
8
Door design:
Blank = Insert panel
SS=Stainless steal wrapped BK=Black
wrapped
WH=White wrapped
WPM=Pewter Royce wrapped
9
Fan:
Blank=No fan
F = Equipped (1 Fan)
F2 = Equipped (2 Fans)
J = Equipped (1) High Velocity Fan
10
Door swing:
L = Left-hand door swing
R = Right-hand door swing
11
P=Black acrylic door panels
12
Packaging Type:
Blank=Corrugated packaging
T = Returnable packaging
M4 = 4-unit multi-pack
M6 = 6-unit multi-pack
M8 = 8-unit multi-pack
NX3X .3 IMCBK FRPT
xxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxx
D
E
S
I
G
N
C
E
R
T
I
F
i
E
D
NORC OLD
SA
Serial Number
Model Number
x.xx
LBS.
test pressure
xxx VOLTS - AC xx HZ
x.xx AMPS xxx Watts
xx VDC xx HZ
x.x AMPS xx xx Watts
G
roup Code
Input Pressure
BTUH
Refrigerant
A
C
B
D

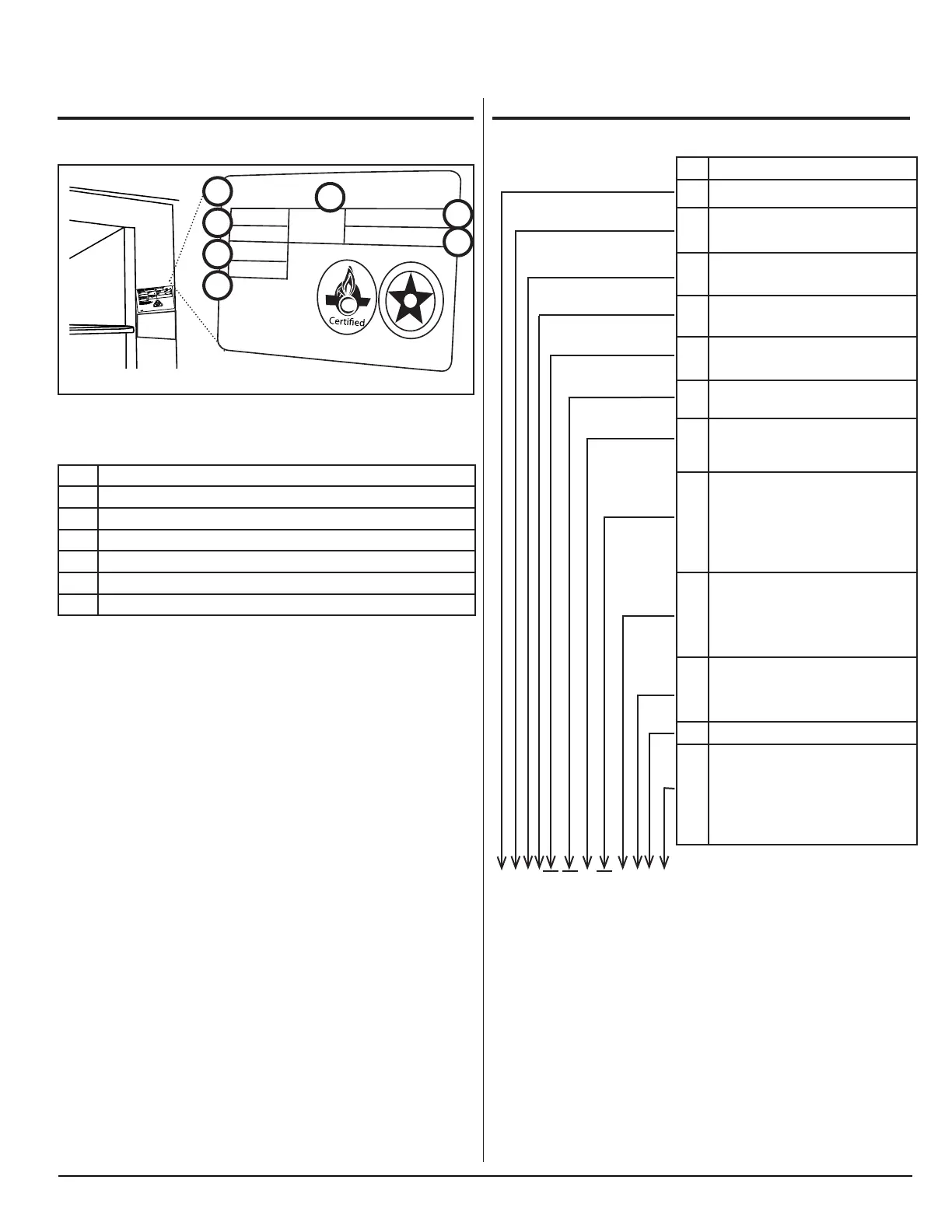

Fig. 3 - Refrigerator information label location
x
x
x
x
xx
x
x
x
x
x
x
x
xx
x
x
x
x
x
x
x
x
x
x
x
x
E
E
F
G
A Serial Number
B Model Number
C Group Code
D BTU / h
E Amount of refrigerant in cooling system
F AC Voltage / Amperage
G DC Voltage / Amperage
Refrigerator Model Number
Fig. 4 - Model Number
