Norcold Polar N10LX Service Manual

SERVICE MANUAL
33
www.norcold.com

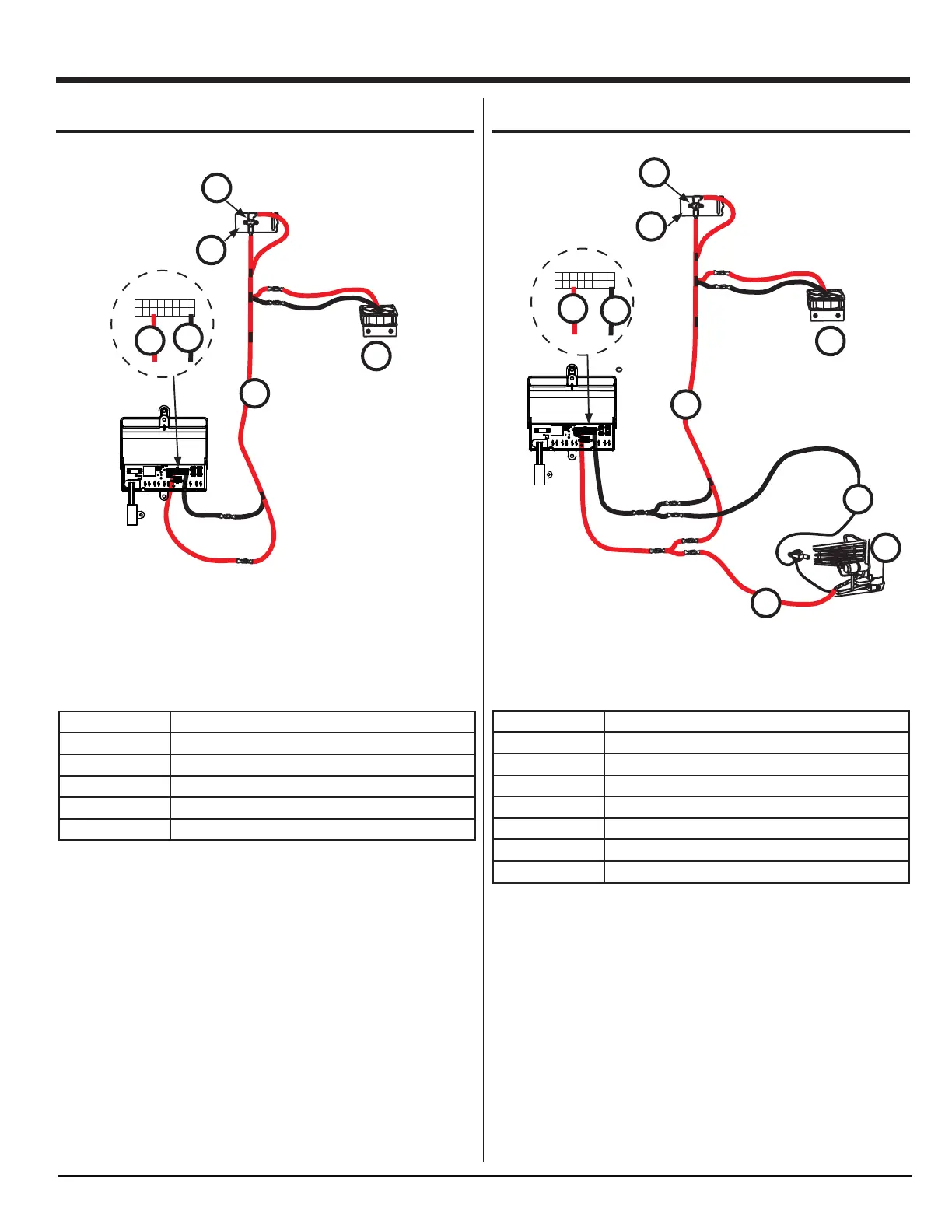

AUXILIARY WIRING CIRCUITS
Fan Only
Fig. 17 - Fan only wiring
A Fan / Bracket Assembly
B Fan Thermostat
C Condenser
D Auxiliary Wire Harness
E P1-1 Auxiliary 12 VDC (ground)
F P1-6 Auxiliary 12 VDC (positive)
Fan and Cold Weather Heater
Fig. 18 - Fan and cold weather heater wiring
A Fan / Bracket Assembly
B Fan Thermostat
C Condenser
D Auxiliary Wire Harness
E Cold Weather Heater
F Cooling Unit
G P1-1 Auxiliary 12 VDC (ground)
H P1-6 Auxiliary 12 VDC (positive)
NOR000793A
11 10 9
5
4
38
7
6
2
1
1213141516
P1
B
C
D
A
E
F
11 10 9
5
4
38
7
6
2
1
1213141516
P1
NOR000799A
B
C
A
H
G
D
E
F
E
