Norcold Polar N10LX Service Manual

34
www.norcold.com
Polar Series N10LX, NA10LX
AUXILIARY WIRING CIRCUITS, cont’d.

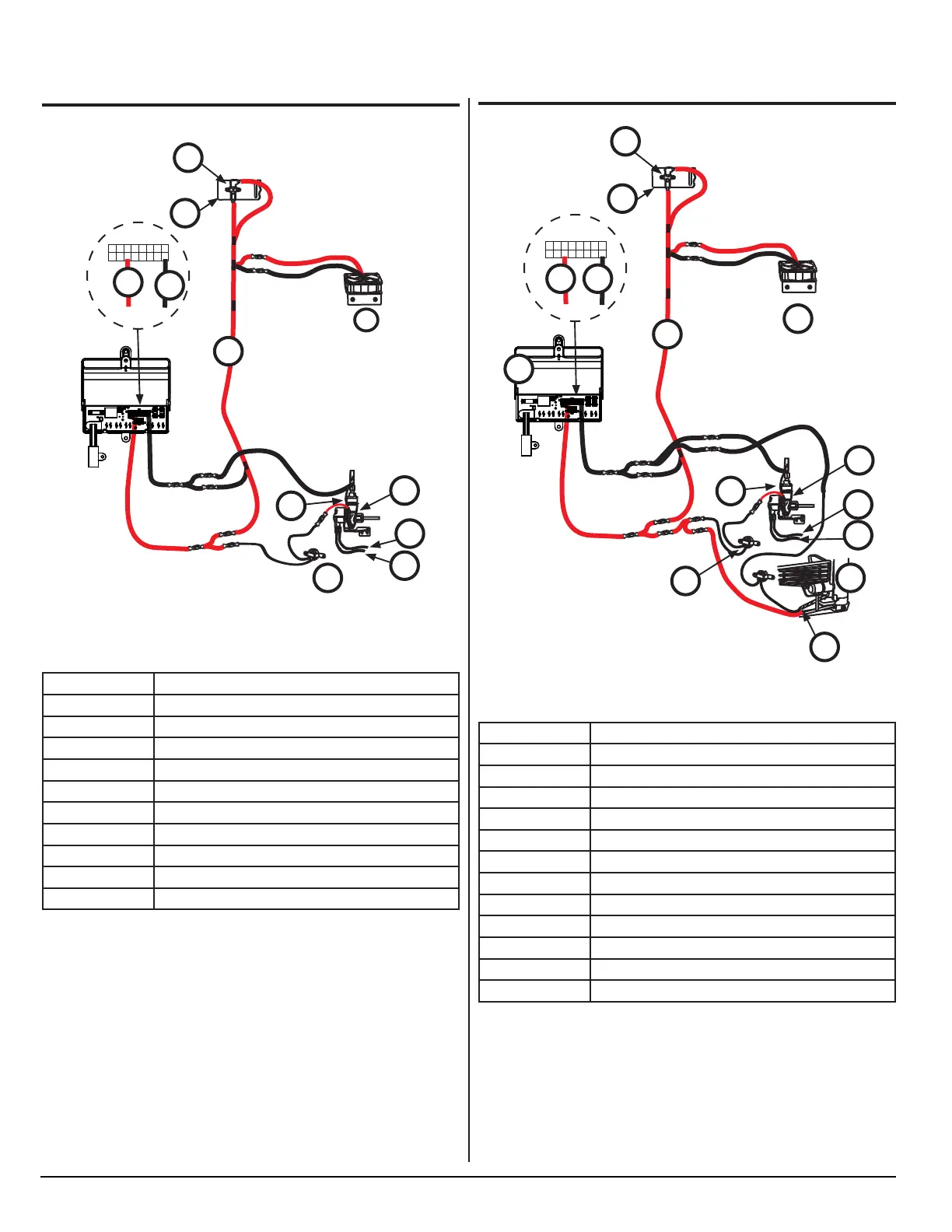

Fig. 19- Fan and ice maker wiring
A Water Valve
B Water Valve / IM Water Line Heater
C Water Valve / IM Water Line Heater Thermostat
D White from Power Cord
E Brown from Ice Maker
F Fan / Bracket Assembly
G Fan Thermostat
H Condenser
I Auxiliary Wire Harness
J P1-1 Auxiliary 12 VDC (ground)
K P1-6 Auxiliary 12 VDC (positive)
Fan and Ice Maker
Fan, Ice Maker, and Cold Weather Heater
Fig. 20 - Fan, ice maker, and cold weather heater wiring
A Water Valve
B Water Valve / IM Water Line Heater
C Water Valve / IM Water Line Heater Thermostat
D White from Power Cord
E Brown from Ice Maker
F Fan / Bracket Assembly
G Fan Thermostat
H Condenser
I Cold Weather Heater
J Cooling Unit
K Auxiliary Wire Harness
L P1-1 Auxiliary 12 VDC (ground)
M P1-6 Auxiliary 12 VDC (positive)
5
11 10 9
5
4
38
7
6
2
1
1213141516
P1
NOR000802A
5
11 10 9
5
4
38
7
6
2
1
1213141516
P1
NOR000801A
F
G
H
I
K
J
A
D
E
C
B
A
G
H
M
L
F
K
B
A
D
E
J
I
C
