Norcold Polar N10LX Service Manual

28
www.norcold.com
Polar Series N10LX, NA10LX

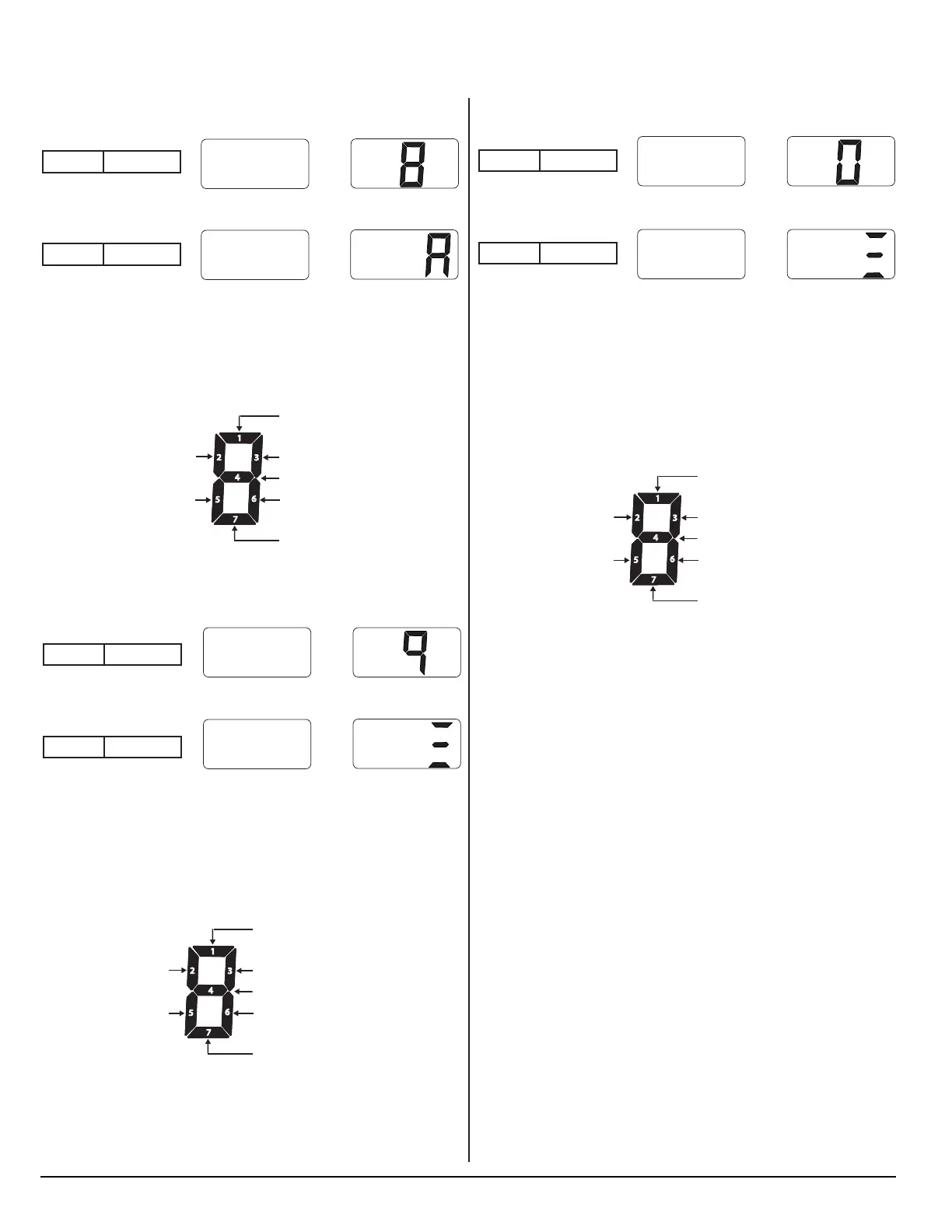

SCREEN 8. Power Board Outputs
Touch and release the MODE button to bring up screen 8.
Screen 8 displays “live” power board outputs using lighted LED
segments. The following illustration provides defi nitions of the
“live” outputs indicated by the individual LED segments. If a power
board output is active or “live,” its assigned output LED seg-
ment will be on.
SCREEN 9. Power Board DC Input Voltage Status
Touch and release the MODE button to bring up screen 9.
This screen displays DC voltage status using lighted LED seg-
ments. Refer to illustration below for defi nitions of the individual
LED segments.
If DC voltage at the power board is within normal range (10.5
to 16.0 VDC), LED segment 4 will be on.
1
2
3
5
6
7
4
DC heater is energized
(3-way models only).
Interior light is
energized.
AC heater is energized.
Divider heater is energized.
Gas valve is energized.
Spark is enabled.
Not used.
NOR000651A-3
NOR000650A-21
Screen 8 Second view
Screen 8 Initial view
NOR000650A-22
Screen 9 Second view
Screen 9 Initial view
1
2
3
5
6
7
4
Not used.
Not used.
DC voltage higher than 16.0 volts.
Not used.
DC voltage normal.
Not used.
DC voltage lower than 8.0 volts.
NOR000651A-4
NOR000650A-23
Screen 0 Second view
Screen 0 Initial view
SCREEN 0. Power Board AC Input Voltage Status
Touch and release the MODE button to bring up screen 0.
This screen displays AC voltage status using lighted LED seg-
ments. Refer to illustration below for defi nitions of the individual
LED segments.
If AC voltage at the power board is within normal range (85 to
135 VAC), LED segment 4 will be on.
SCREEN A.
Touch and release the MODE button to bring up screen A.
This screen is not used.
SCREEN B.
Touch and release the MODE button to bring up screen b.
This screen is not used.
1
2
3
5
6
7
4
Not used.
Not used.
AC voltage higher than 135 volts.
ACvoltage high
AC voltage lower than 85 volts.
Not used.
Not used.
NOR000651A-5
Diagnostic Mode - N10LX, NA10LX Models, cont’d.
