3 Displays and control
BU 0540 EN-1516 31
3 Displays and control
As delivered, without the technology unit, 2 LEDs (green/red) are visible externally. These indicate the
actual device status.
The green LED indicates that the mains voltage is present and operational, while a flashing code that
increases in speed shows the degree of overload at the frequency inverter output.
The red LED signals actual error by flashing with a frequency which corresponds to the number code
of the fault (please see chapter 6 "Operating status messages").
Pos: 10 7 /Anlei tung en/El ektr onik/FU und Star ter/3 . Anzei ge, Be dienu ng und Optionen/SK 5xxE/3.1 Modulare Baugruppen [SK 5xxE] @ 0\mod_1327492754652_388.docx @ 6283 @ 2 @ 1
3.1 Modular assemblies SK 5xxE
By the use of various modules for display, control and parameterisation, the SK 5xxE can be easily
adapted to a wide range of requirements.
Alphanumerical display and operating modules can be used for simple commissioning. For more
complex tasks, various connections to a PC or an automation system can be selected.
The Technology Unit (Technology Unit, SK TU1-...) is connected externally to the front of the
frequency inverter and is therefore easy to access and replace at any time.

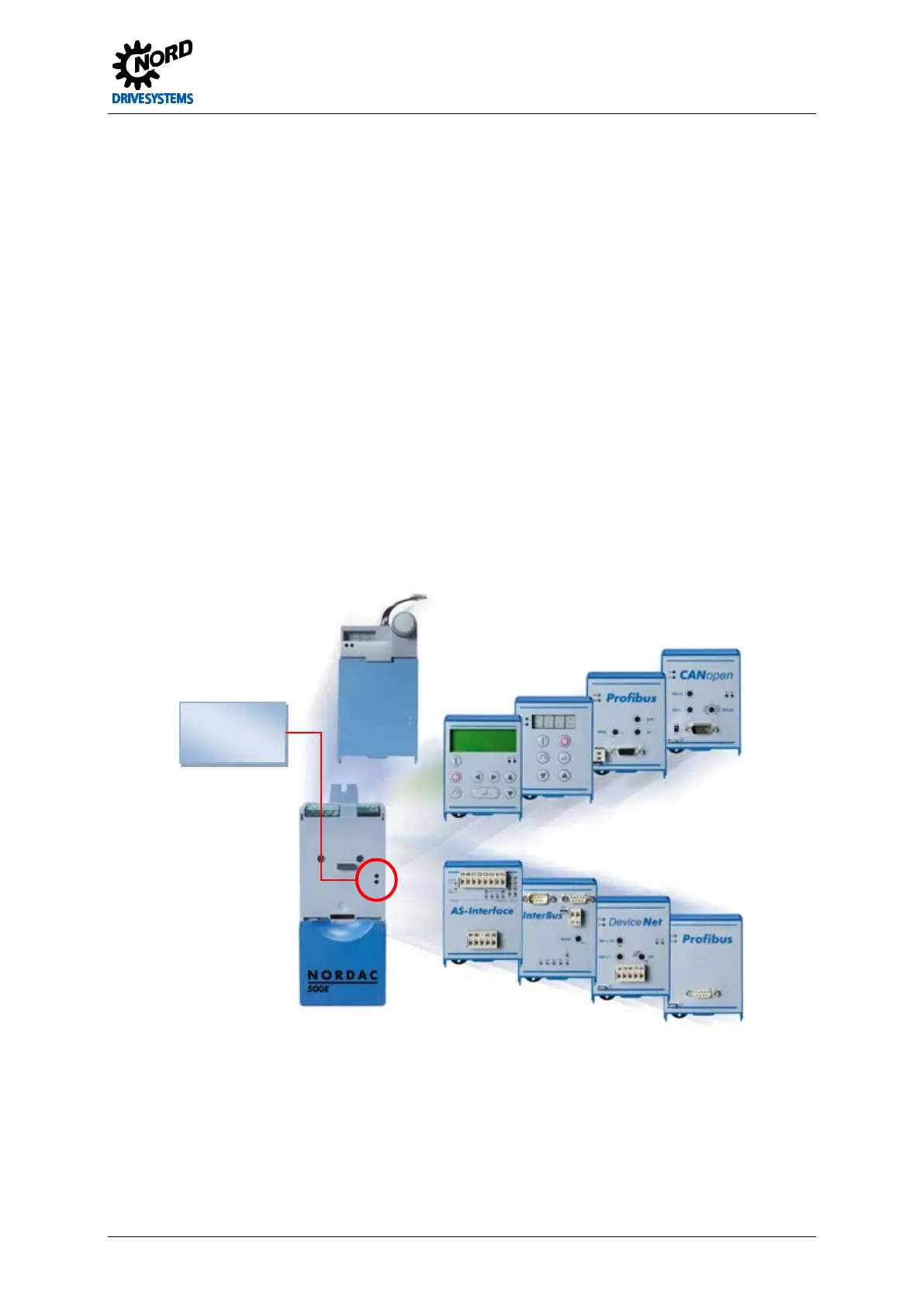

Fig. 2: Modular assemblies SK 5xxE
Pos: 10 8 /Anlei tung en/El ektr onik/FU und Star ter/3 . Anz eig e, B edi enu ng und Opti one n/SK 5x xE/ 3.2 Ü ber sic ht der T ec hnol ogi ebo xen -1- @ 0\mod_1327492858354_388.docx @ 6306 @ 2555 @ 1
LED
