Nordic nRF9160 User Manual

Hardware description

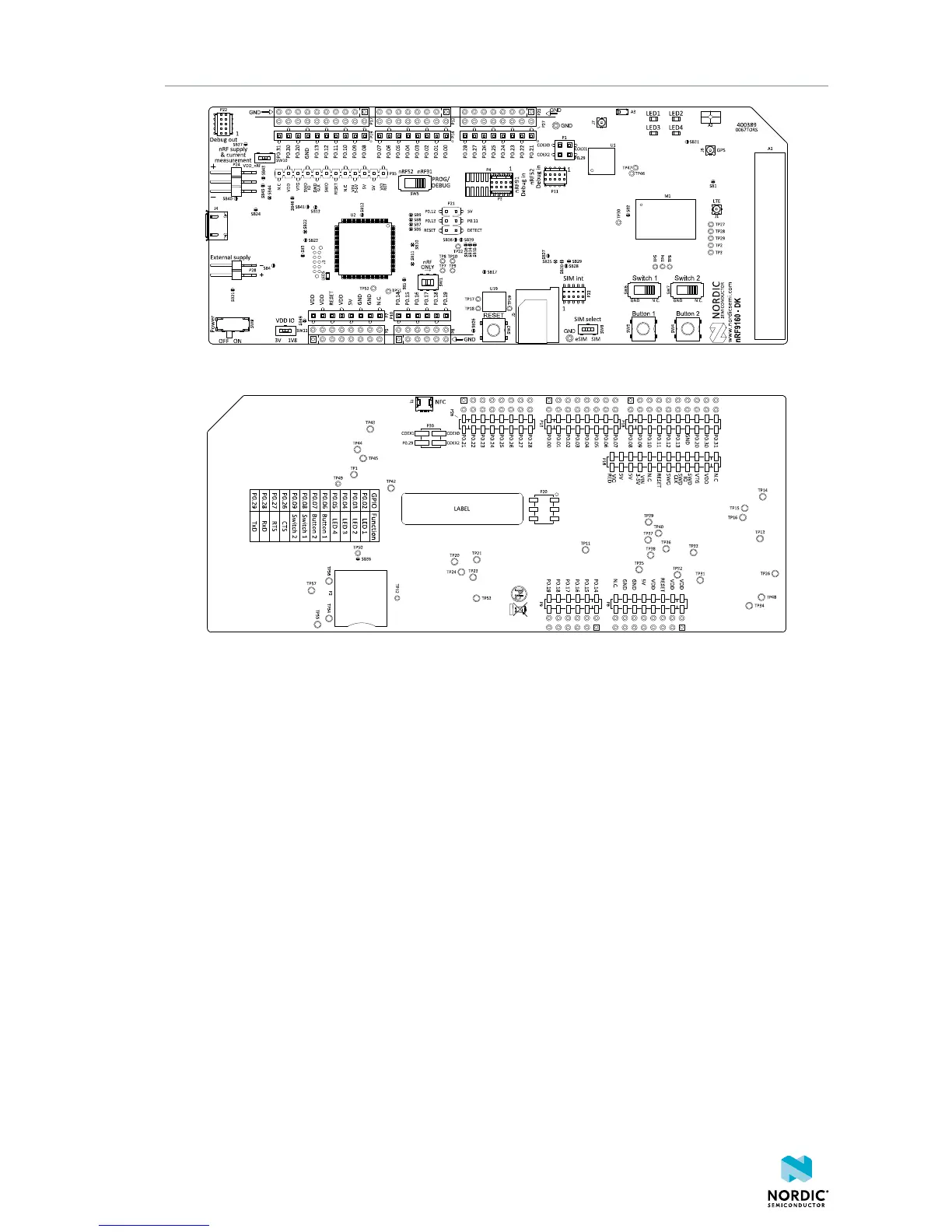

Figure 6: nRF9160 DK board (PCA10090), front view
Figure 7: nRF9160 DK board (PCA10090), back view
5.3 Power supply
nRF9160 DK has a flexible and configurable power supply system to allow software development and
testing using different power sources and to facilitate accurate power measurements.
The power source options are:
• USB connector J4 (5 V)
• External supply on P28 (3.3 V–5 V)
• VIN 3–5 V on P15 (3.3 V–5 V)
4418_1216 v0.7
12
