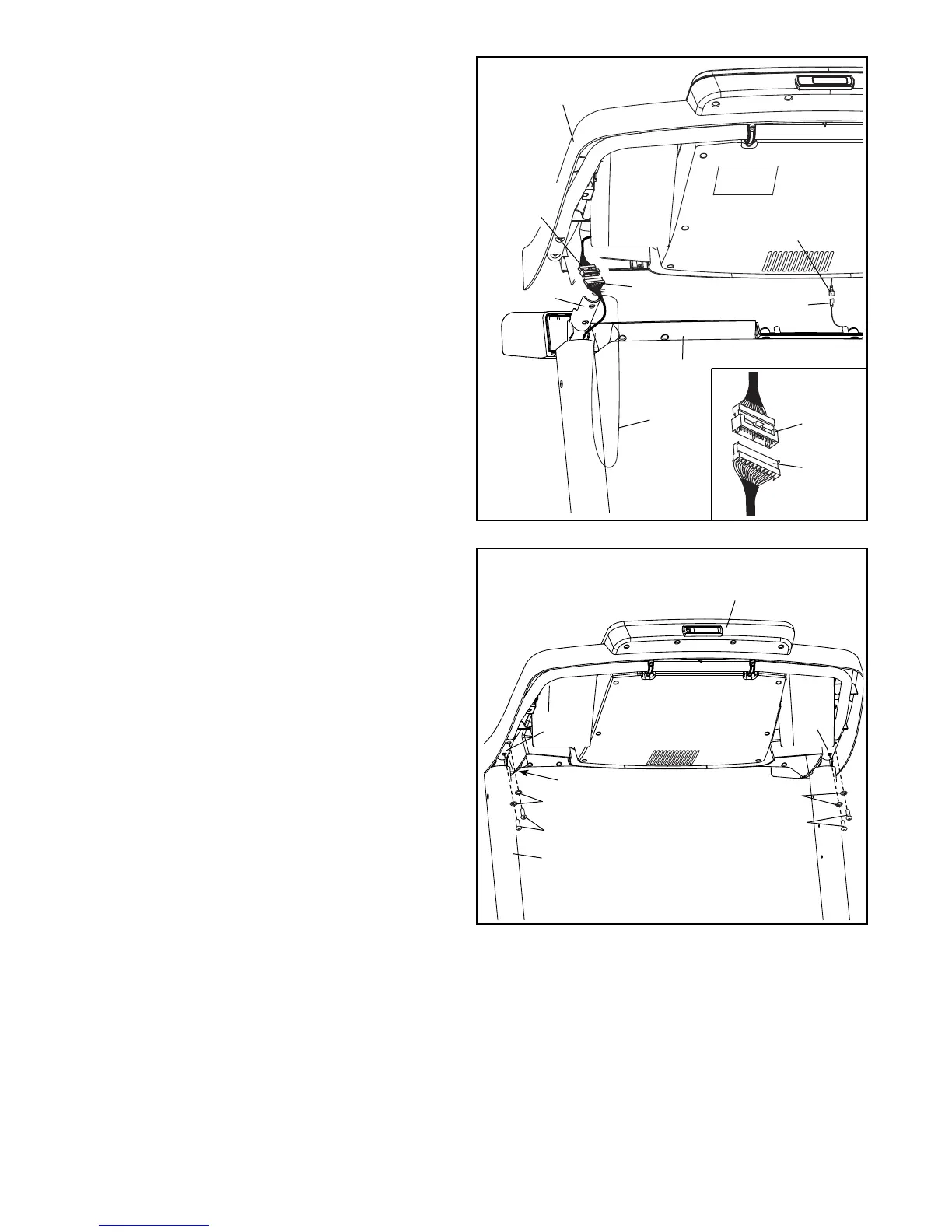

12. With the help of a second person, hold the con-
sole assembly near the Handrails (86) (only one
side is shown).
Connect the ground wire from the console
assembly to the Console Ground Wire (58) on
the Pulse Crossbar (93).
Connect the Upright Wire (81) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Then, remove the wire tie from
the Upright Wire.
12
Console
Assembly
81
81
Wire
Tie
Console
Wire
86
58
Ground
Wire
93
13. Set the console assembly on the brackets on
the Handrails (86). Make sure not to pinch any
wires. Insert the excess Upright Wire (81) into
the Right Upright (90).
Attach the console assembly to the brackets
on the Handrails (86) with the four 5/16" x 3/4"
Screws (4) that you removed in step 9 and four
5/16" Star Washers (11). Do not fully tighten
the Screws yet.
13
86
Console
Assembly
4
4
81
86
11
11
90
Console
Wire
