16

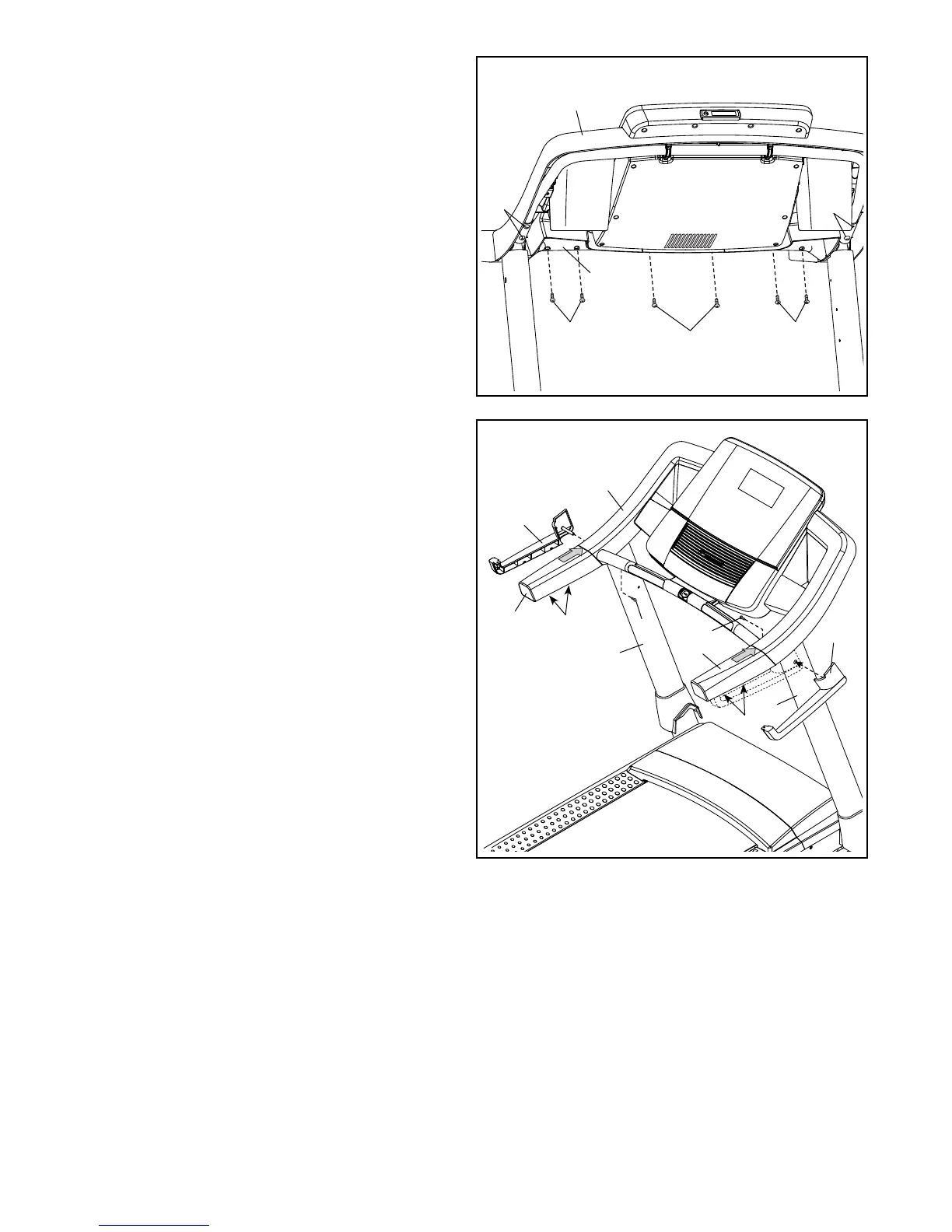

14. Attach the Pulse Crossbar (93) to the console
assembly with six #8 x 3/4" Screws (2). Start all
six Screws, and then tighten them.
Firmly tighten the four 5/16" x 3/4" Screws (4).
14
93
Console
Assembly
4
4
2
2
2
15. Check the gaps between the handrail assem-
blies (B, D) and the console assembly.
If necessary, loosen the four #8 x 3/4" Screws
(2) under the handrails and slide the handrails
forward against the console assembly. Then,
retighten the Screws.
Attach the Left Outside Upright Cover (87) and
the Right Outside Upright Cover (96) to the Left
and Right Uprights (89, 90) with two #8 x 1/2"
Screws (1). Rotate the Covers at an angle as
you press them against the Uprights. Do not
overtighten the Screws.
15
96
89
90
1
1
87
2
D
B
2
Console
Assembly
To Next Page
