13
16. Make sure that all parts of the elliptical are properly tightened. Note: An extra grease packet and some
hardware may be left over after assembly is completed. To protect the floor or carpet from damage, place a
mat under the elliptical.
2
4
25

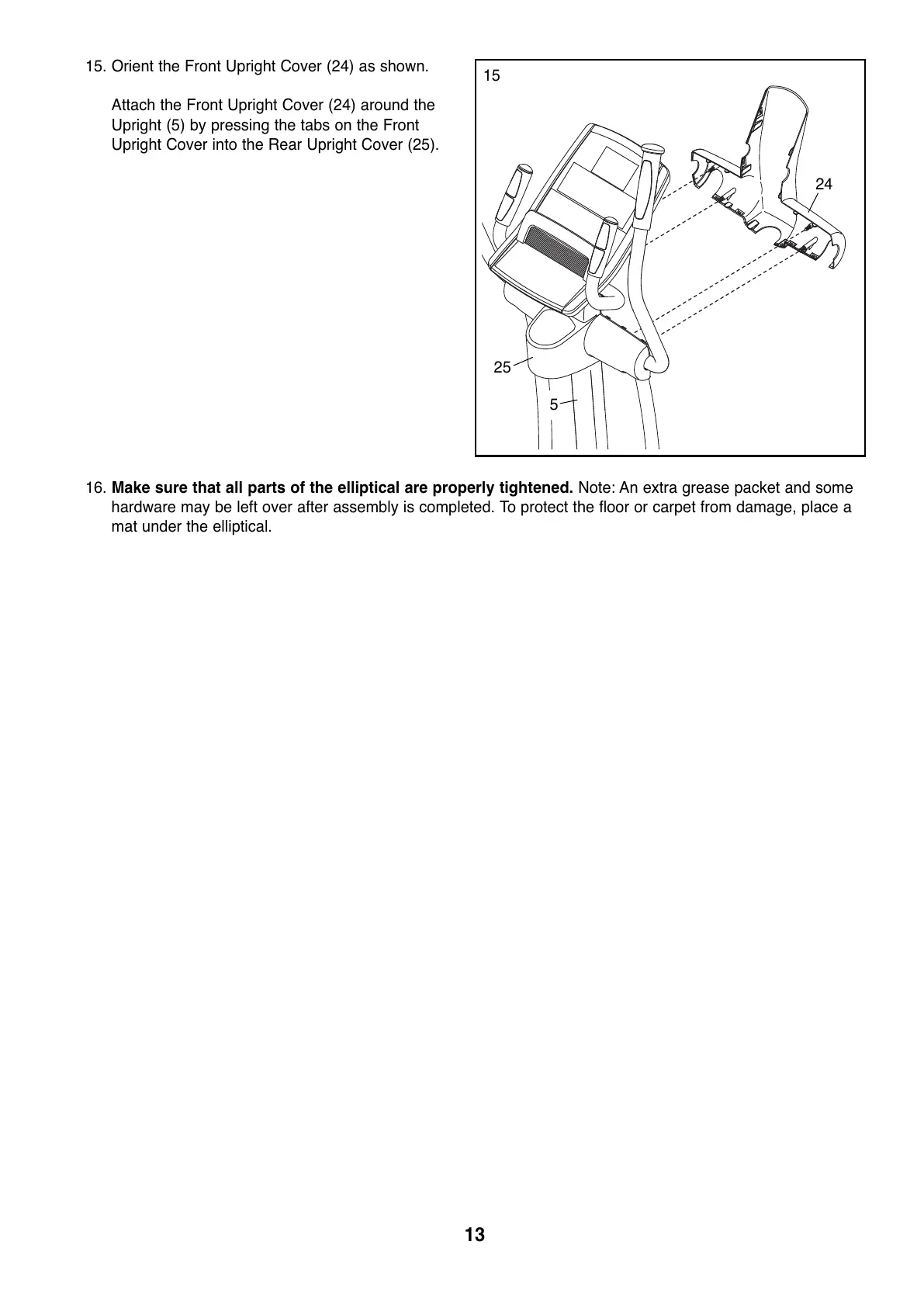

15. Orient the Front Upright Cover (24) as shown.
Attach the Front Upright Cover (24) around the
U
pright (5) by pressing the tabs on the Front
Upright Cover into the Rear Upright Cover (25).
5
15
