27
11Main Frame
2
1 Folding Frame
31Front Stabilizer
41Rear Stabilizer
51Upright
61Right Upper Body Leg
71Left Upper Body Leg
81Right Upper Body Arm
91Left Upper Body Arm
10 1 Right Handlebar
11 1 Left Handlebar
12 1 Right Pedal Arm
13 1 Left Pedal Arm
14 1 Right Pedal
15 1 Left Pedal
16 2 Wheel Cap
17 2 Disc
18 1 Right Shield
19 1 Left Shield
20 1 Access Cover
21 1 Right Frame Cover
22 1 Left Frame Cover
23 6 Double Tree Fastener
24 1 Front Upright Cover
25 1 Rear Upright Cover
26 1 Accessory Tray
27 1 Top Cover
28 2 Pedal Arm Cap
29 18 Mount w/Screw
30 2 Magnet Cover
31 4 Pedal Arm Magnet
32 2 Pedal Arm Roller
33 1 Console
34 2 Pulse Sensor/Wire
35 2 Handgrip
36 2 Wheel
37 2 Stabilizer Cap
38 1 Drive Belt
39 2 Crank Arm
40 2 Hairpin Cotter Pin
41 3 Leveling Foot
42 1 Latch Bracket
43 1 Right Link Arm
44 2 Lift Bracket
45 2 Lift Axle Bushing
46 2 Pedal Arm Sleeve
47 2 Inner Sleeve Bushing
48 1 Upright Axle
49 2 Latch Housing
50 2 Latch
51 2 Large Latch Spring
5
2 2 Latch Insert
53 4 Long Latch Spring
54 16 Arm/Leg Bushing
55 4 M4 x 16mm Flat Head Screw
56 6 Small Axle Cover
57 2 Upright Bushing
58 2 Outer Sleeve Bushing
59 1 Audio Cable
60 1 Main Wire
61 1 Flywheel
62 4 M6 x 50mm Patch Screw
63 1 Frame Axle
64 4 Main Frame Bushing
65 1 Latch Bracket Axle
66 1 Latch Bracket Spring
67 1 Latch Button
68 1 Button Housing
69 1 Reed Switch/Wire
70 1 Clamp
71 1 Crank Hub
72 1 Crank
73 1 Crank Spacer
74 1 Large Pulley
75 2 Pulley Magnet
76 2 Folding Frame Bearing
77 1 Idler
78 1 Resistance Motor
79 1 Adjustment Assembly
80 1 Resistance Wheel
81 1 Resistance Bracket
82 1 Motor Bracket
83 1 C-magnet Bracket
84 1 Flywheel Axle
85 1 Belt Adjustment Screw
86 8 M8 x 28mm Patch Screw
87 2 Crank Snap Ring
88 1 C-magnet Bracket Bolt
89 4 Motor Screw
90 1 M5 x 7mm Screw
91 1 M3.5 x 12mm Screw
92 1 M6 Locknut
93 1 Lift Arm Axle
94 2 M8 Jam Nut
95 10 M8 Washer
96 1 M6 Washer
97 1 Pivot Screw
98 2 Motor Bracket Screw
99 1 Idler Bolt
100 4 M10 x 95mm Patch Screw
Key No. Qty. Description Key No. Qty. Description

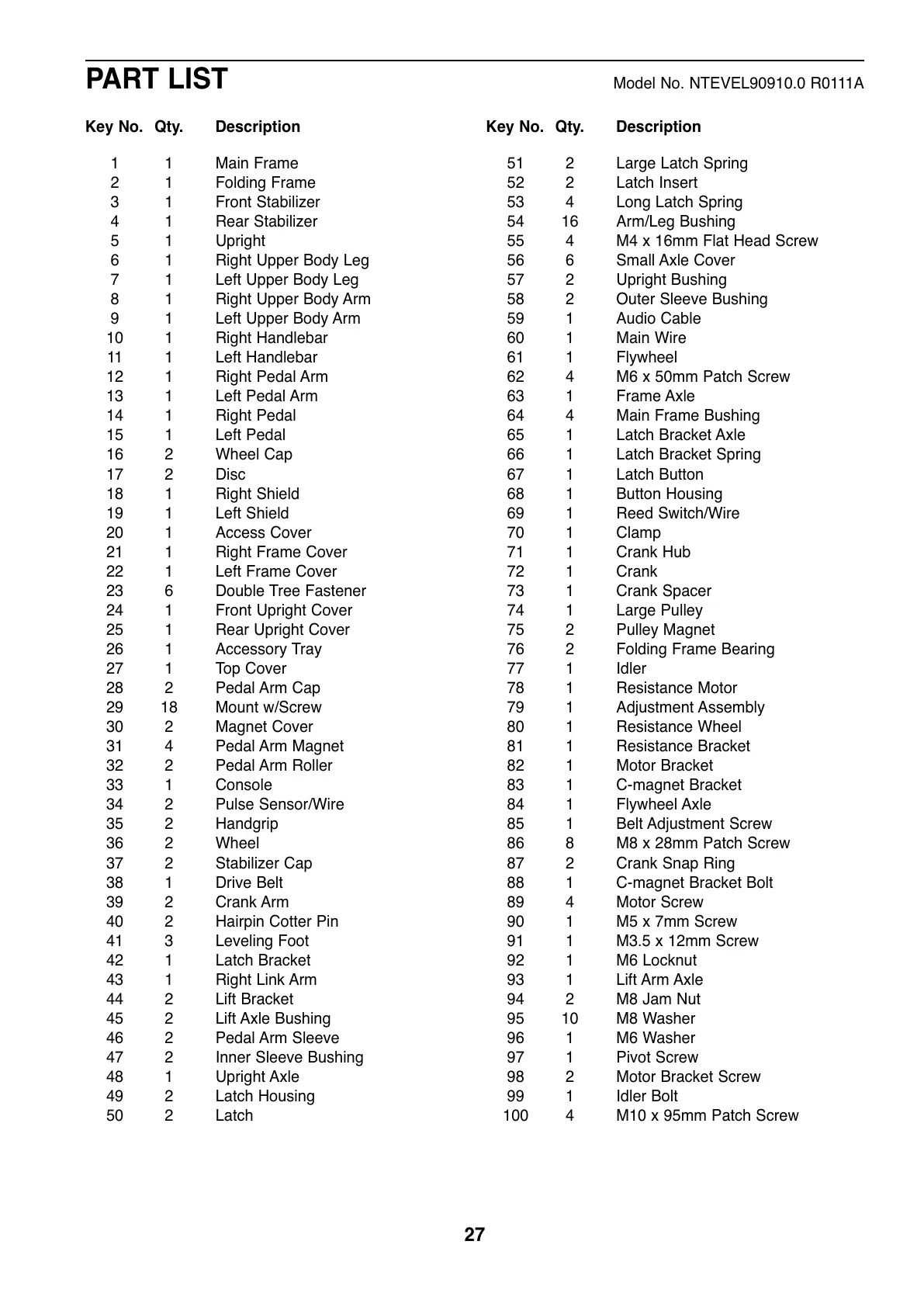

PART LIST M
odel No. NTEVEL90910.0 R0111A
