8
6
5
5

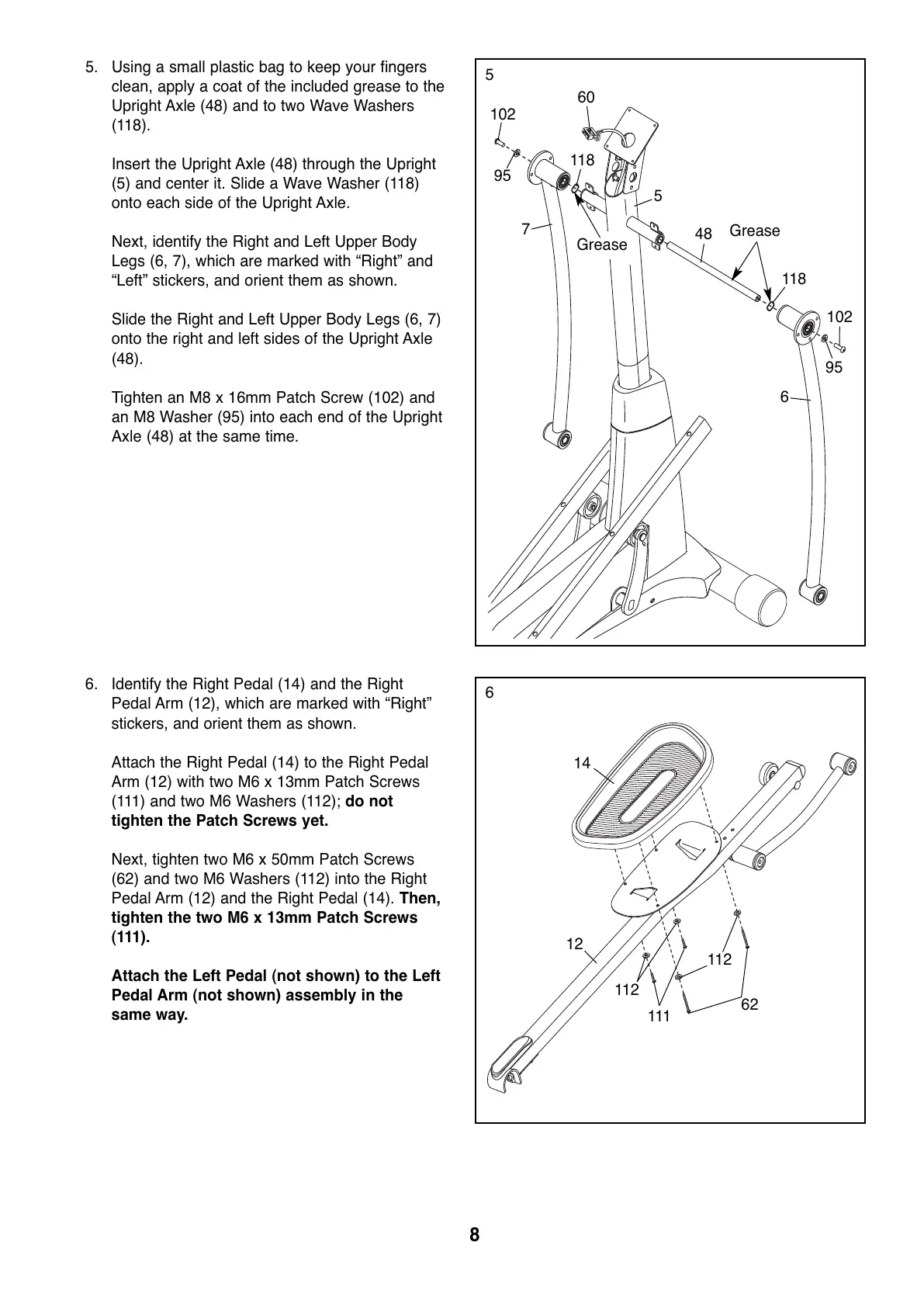

. Using a small plastic bag to keep your fingers
clean, apply a coat of the included grease to the
Upright Axle (48) and to two Wave Washers
(118).
Insert the Upright Axle (48) through the Upright
(
5) and center it. Slide a Wave Washer (118)
onto each side of the Upright Axle.
Next, identify the Right and Left Upper Body
Legs (6, 7), which are marked with “Right” and
“Left” stickers, and orient them as shown.
Slide the Right and Left Upper Body Legs (6, 7)
onto the right and left sides of the Upright Axle
(48).
Tighten an M8 x 16mm Patch Screw (102) and
an M8 Washer (95) into each end of the Upright
Axle (48) at the same time.
Grease
Grease
95
5
7
102
9
5
1
02
118
48
60
6
118
6. Identify the Right Pedal (14) and the Right
Pedal Arm (12), which are marked with “Right”
stickers, and orient them as shown.
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with two M6 x 13mm Patch Screws
(111) and two M6 Washers (112); do not
tighten the Patch Screws yet.
Next, tighten two M6 x 50mm Patch Screws
(62) and two M6 Washers (112) into the Right
Pedal Arm (12) and the Right Pedal (14). Then,
tighten the two M6 x 13mm Patch Screws
(111).
Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) assembly in the
same way.
14
12
111
112
112
62
To Next Page
