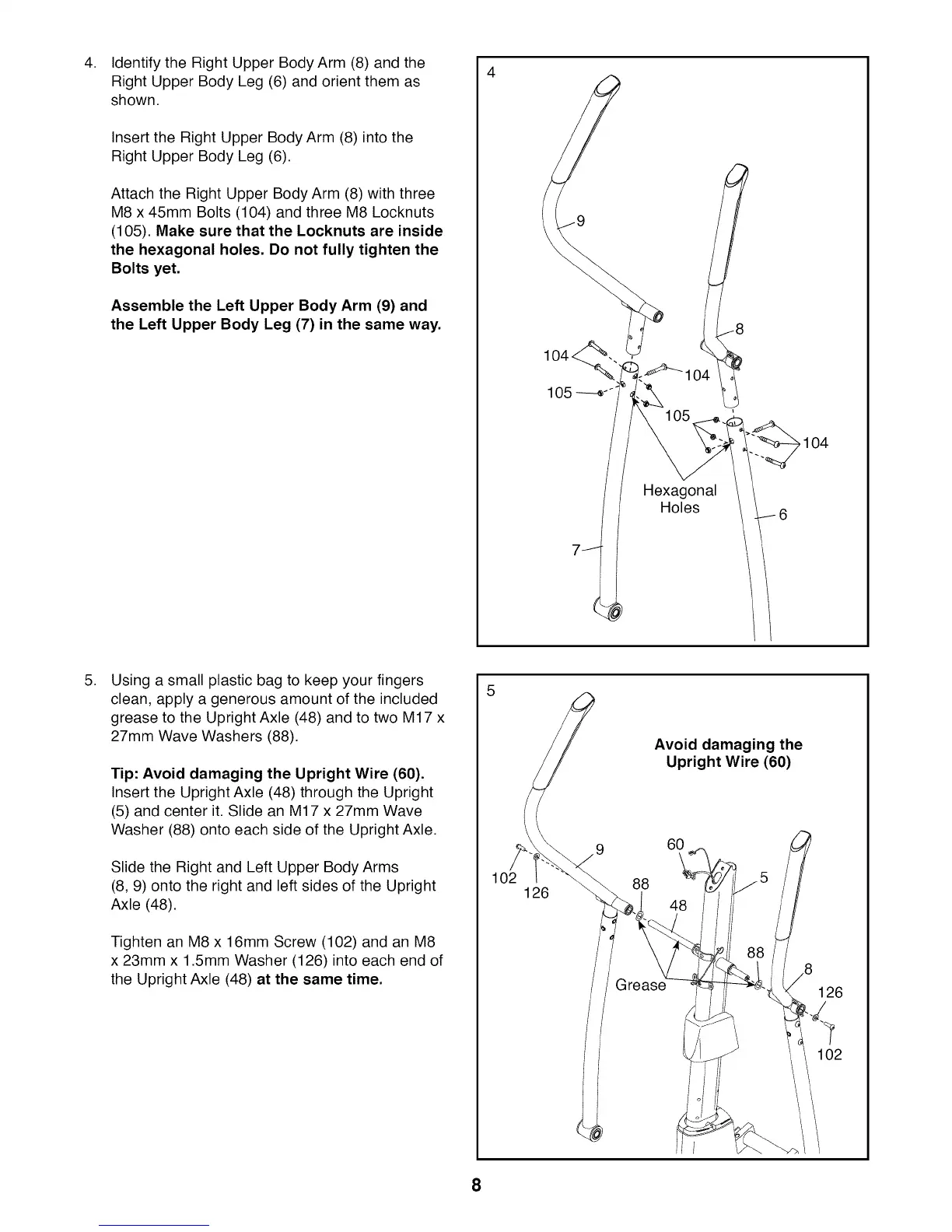

Identify the Right Upper Body Arm (8) and the
Right Upper Body Leg (6) and orient them as
shown.
Insert the Right Upper Body Arm (8) into the
Right Upper Body Leg (6).
Attach the Right Upper Body Arm (8) with three
M8 x 45mm Bolts (104) and three M8 Locknuts
(105). Make sure that the Locknuts are inside
the hexagonal holes. Do not fully tighten the
Bolts yet.
Assemble the Left Upper Body Arm (9) and
the Left Upper Body Leg (7) in the same way.
Hexagonal
Holes
,104
,
Using a small plastic bag to keep your fingers
clean, apply a generous amount of the included
grease to the Upright Axle (48) and to two M17 x
27mm Wave Washers (88).
Tip: Avoid damaging the Upright Wire (60).
Insert the Upright Axle (48) through the Upright
(5) and center it. Slide an M17 x 27mm Wave
Washer (88) onto each side of the Upright Axle.
Slide the Right and Left Upper Body Arms
(8, 9) onto the right and left sides of the Upright
Axle (48).
Tighten an M8 x 16mm Screw (102) and an M8
x 23mm x 1.5mm Washer (126) into each end of
the Upright Axle (48) at the same time.
5
1C
126
Avoid damaging the
Upright Wire (60)
60
88
48
rease
126
/ 02
8
