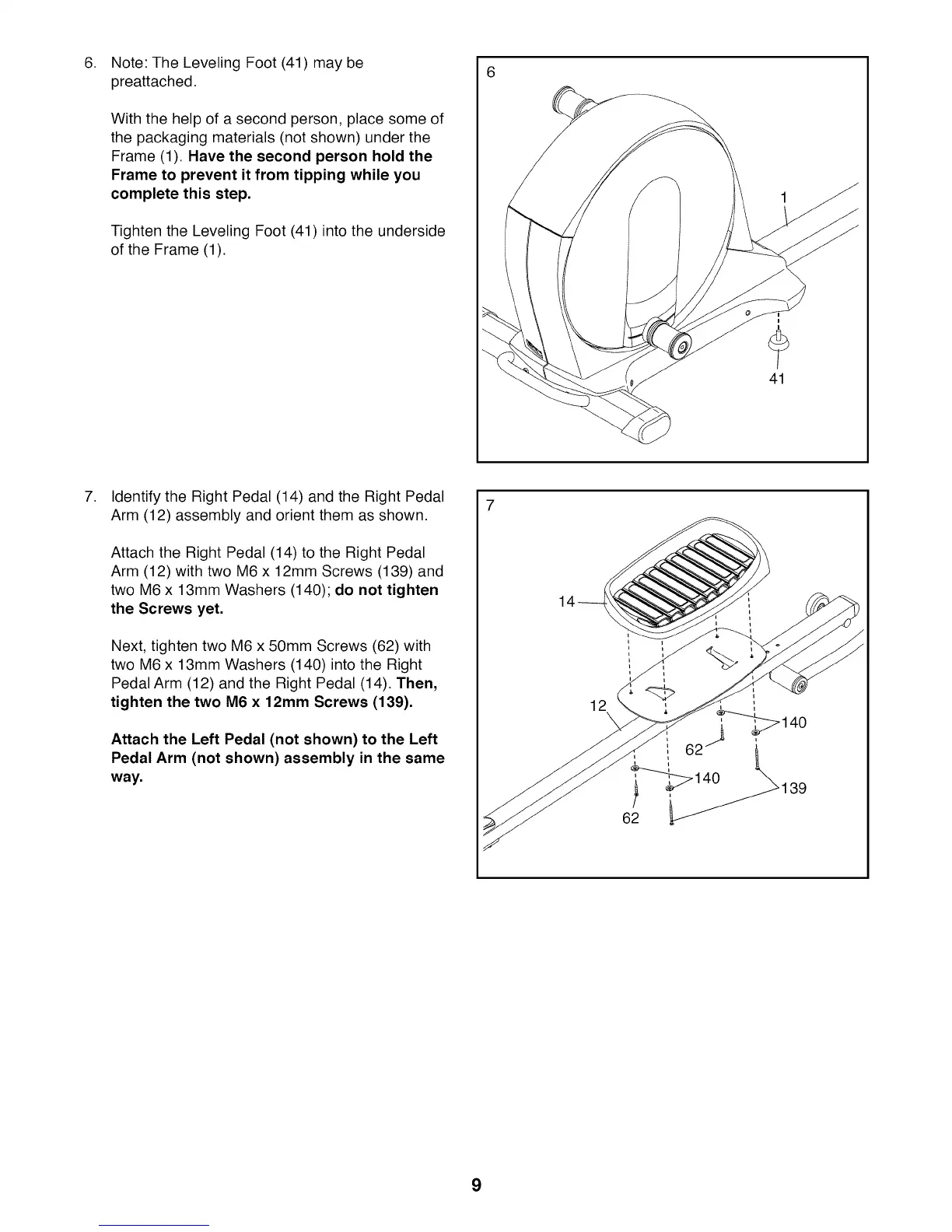

6. 6
Note: The Leveling Foot (41) may be
preattached.
With the help of a second person, place some of
the packaging materials (not shown) under the
Frame (1). Have the second person hold the
Frame to prevent it from tipping while you
complete this step.
Tighten the Leveling Foot (41) into the underside
of the Frame (1).
41
,
Identify the Right Pedal (14) and the Right Pedal
Arm (12) assembly and orient them as shown.
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with two M6 x 12mm Screws (139) and
two M6 x 13mm Washers (140); do not tighten
the Screws yet.
Next, tighten two M6 x 50mm Screws (62) with
two M6 x 13mm Washers (140) into the Right
Pedal Arm (12) and the Right Pedal (14). Then,
tighten the two M6 x 12turn Screws (139).
Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) assembly in the same
way.
7
12
o ' ' 140
1 62_ __'
' ' 140
139
62
