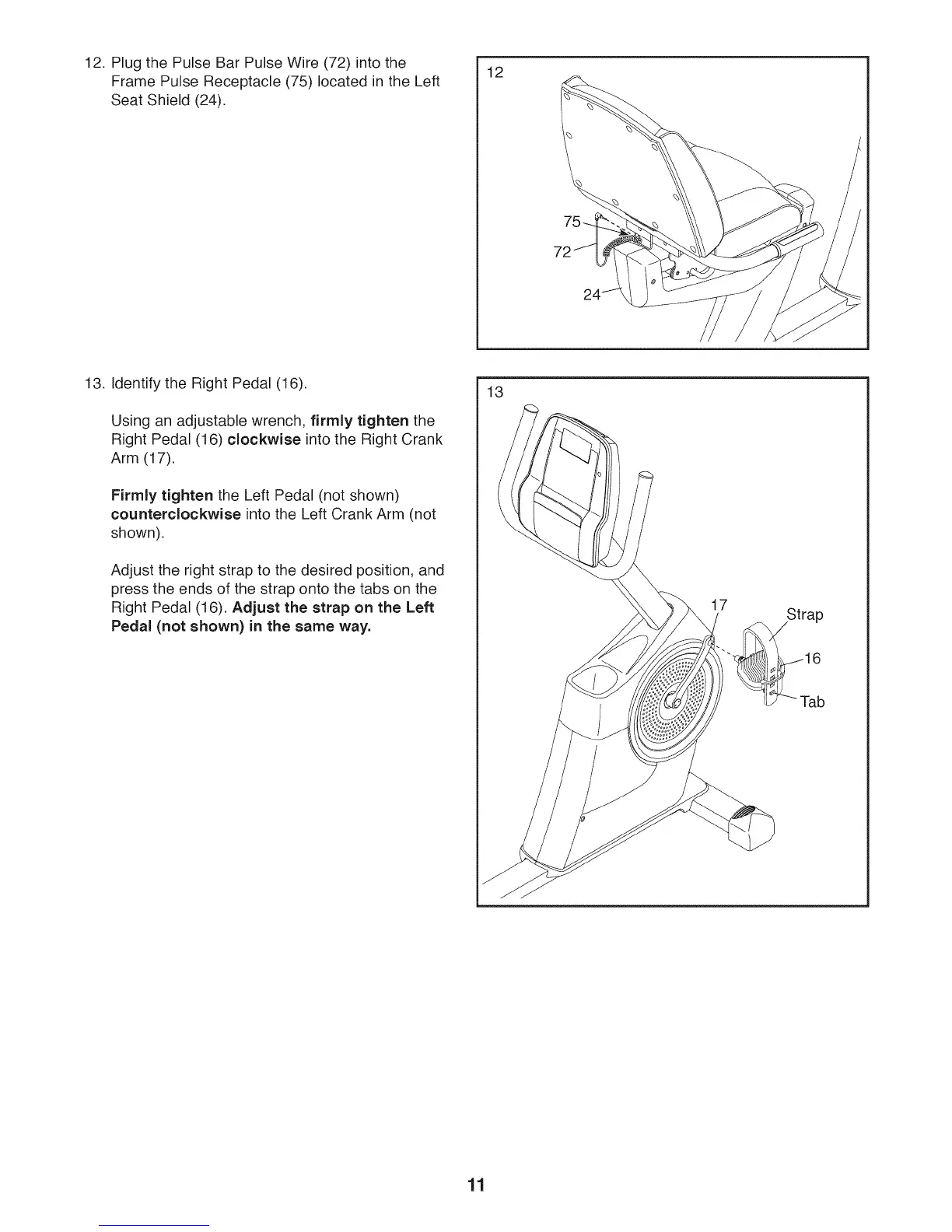

12. Plug the Pulse Bar Pulse Wire (72) into the
Frame Pulse Receptacle (75) located in the Left
Seat Shield (24).
12
75
13. Identify the Right Pedal (16).
Using an adjustable wrench, firmly tighten the
Right Pedal (16) clockwise into the Right Crank
Arm (17).
Firmly tighten the Left Pedal (not shown)
counterclockwise into the Left Crank Arm (not
shown).
Adjust the right strap to the desired position, and
press the ends of the strap onto the tabs on the
Right Pedal (16). Adjust the strap on the Left
Pedal (not shown) in the same way.
13
17
Strap
6
Fab
11
