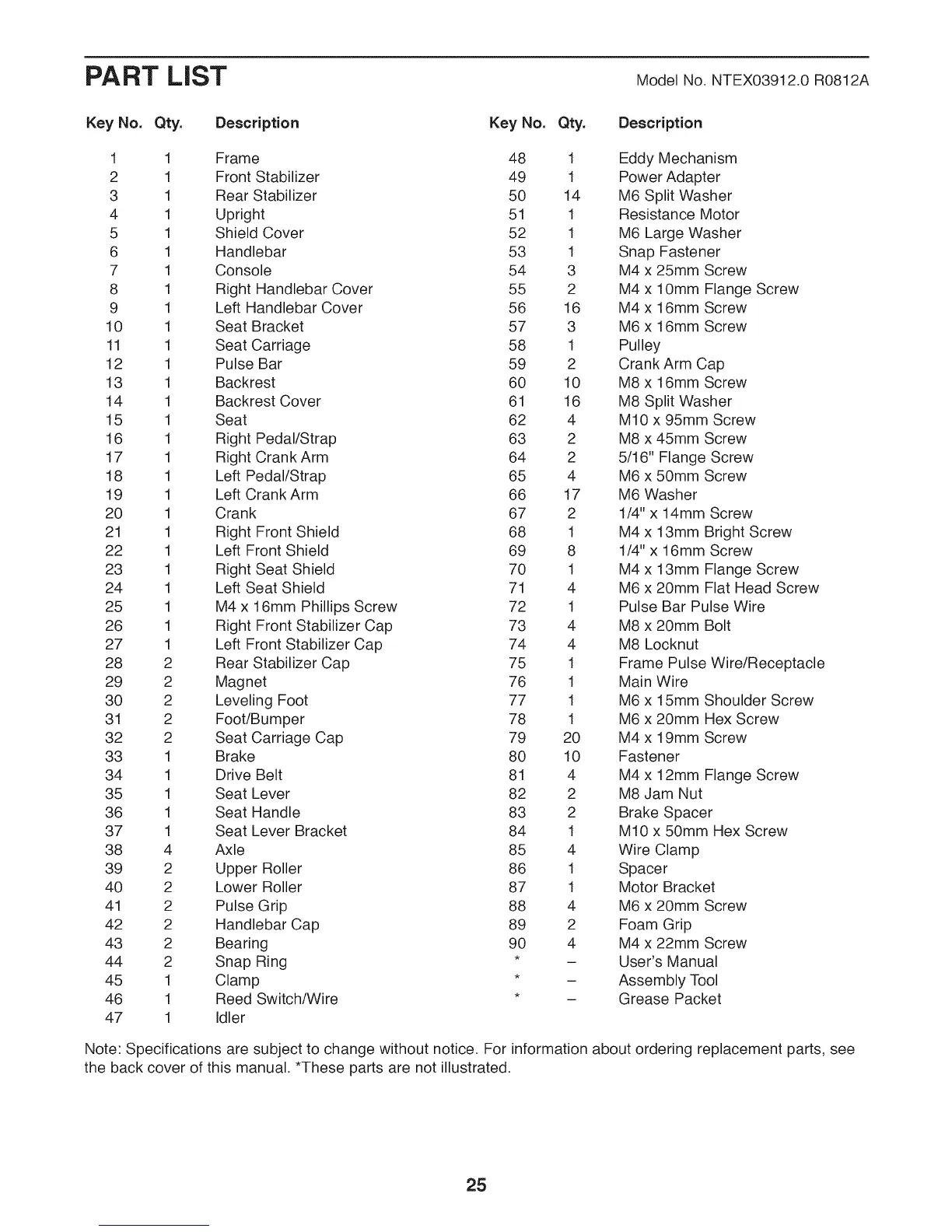

PART LIST Model No. NTEX03912.0 R0812A
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 48 1 Eddy Mechanism
2 1 Front Stabilizer 49 1 Power Adapter
3 1 Rear Stabilizer 50 14 M6 Split Washer
4 1 Upright 51 1 Resistance Motor
5 1 Shield Cover 52 1 M6 Large Washer
6 1 Handlebar 53 1 Snap Fastener
7 1 Console 54 3 M4 x 25mm Screw
8 1 Right Handlebar Cover 55 2 M4 x 10mm Flange Screw
9 1 Left Handlebar Cover 56 16 M4 x 16mm Screw
10 1 Seat Bracket 57 3 M6 x 16mm Screw
11 1 Seat Carriage 58 1 Pulley
12 1 Pulse Bar 59 2 Crank Arm Cap
13 1 Backrest 60 10 M8 x 16mm Screw
14 1 Backrest Cover 61 16 M8 Split Washer
15 1 Seat 62 4 M10 x 95mm Screw
16 1 Right Pedal/Strap 63 2 M8 x 45mm Screw
17 1 Right Crank Arm 64 2 5/16" Flange Screw
18 1 Left Pedal/Strap 65 4 M6 x 50mm Screw
19 1 Left Crank Arm 66 17 M6 Washer
20 1 Crank 67 2 1/4" x 14mm Screw
21 1 Right Front Shield 68 1 M4 x 13mm Bright Screw
22 1 Left Front Shield 69 8 1/4" x 16mm Screw
23 1 Right Seat Shield 70 1 M4 x 13mm Flange Screw
24 1 Left Seat Shield 71 4 M6 x 20mm Flat Head Screw
25 1 M4 x 16mm Phillips Screw 72 1 Pulse Bar Pulse Wire
26 1 Right Front Stabilizer Cap 73 4 M8 x 20mm Bolt
27 1 Left Front Stabilizer Cap 74 4 M8 Locknut
28 2 Rear Stabilizer Cap 75 1 Frame Pulse Wire/Receptacle
29 2 Magnet 76 1 Main Wire
30 2 Leveling Foot 77 1 M6 x 15mm Shoulder Screw
31 2 Foot/Bumper 78 1 M6 x 20mm Hex Screw
32 2 Seat Carriage Cap 79 20 M4 x 19mm Screw
33 1 Brake 80 10 Fastener
34 1 Drive Belt 81 4 M4 x 12mm Flange Screw
35 1 Seat Lever 82 2 M8 Jam Nut
36 1 Seat Handle 83 2 Brake Spacer
37 1 Seat Lever Bracket 84 1 M10 x 50mm Hex Screw
38 4 Axle 85 4 Wire Clamp
39 2 Upper Roller 86 1 Spacer
40 2 Lower Roller 87 1 Motor Bracket
41 2 Pulse Grip 88 4 M6 x 20mm Screw
42 2 Handlebar Cap 89 2 Foam Grip
43 2 Bearing 90 4 M4 x 22mm Screw
44 2 Snap Ring * - User's Manual
45 1 Clamp * - Assembly Tool
46 1 Reed Switch/Wire * - Grease Packet
47 1 Idler
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
25
