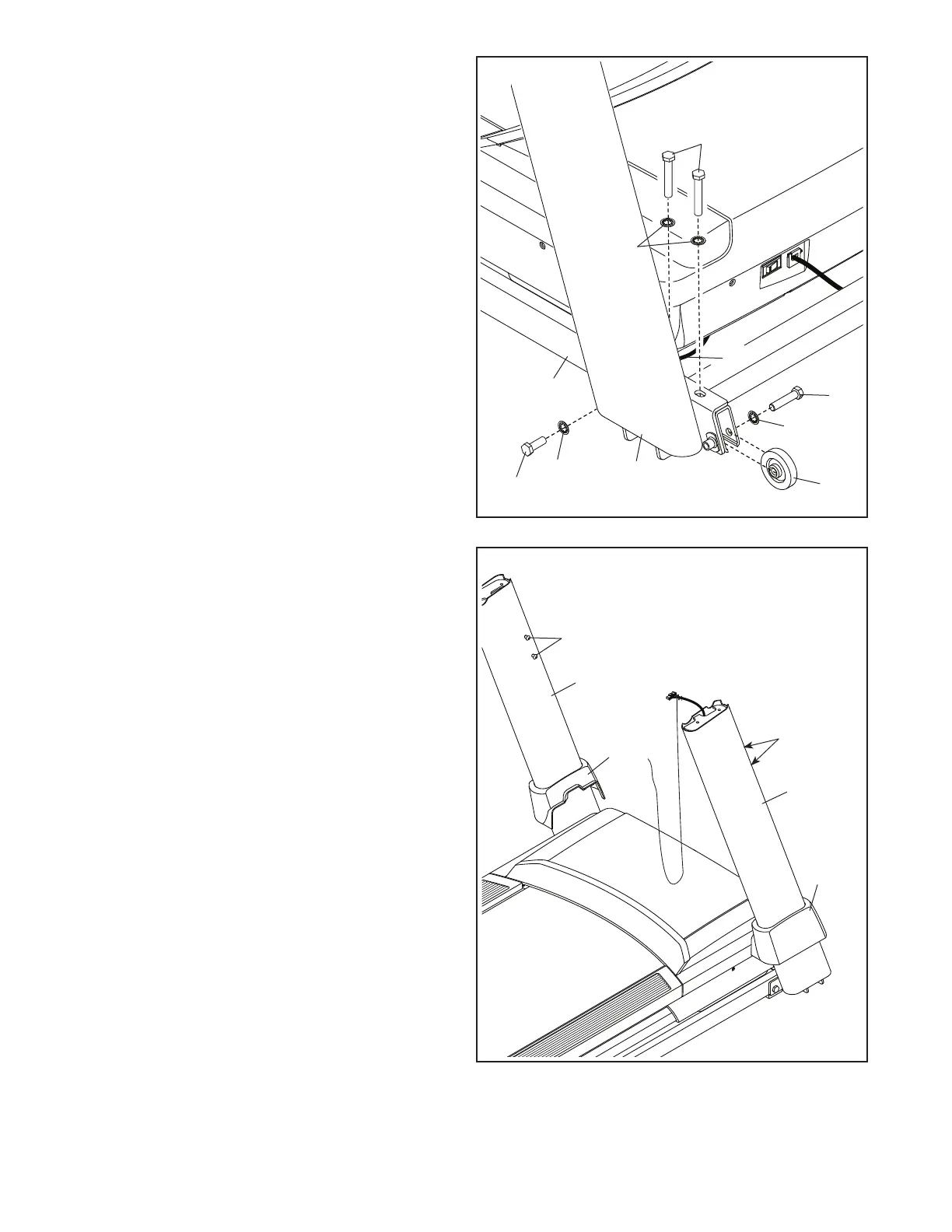

4. Hold the Right Upright (84) against the Base
(98). Make sure not to pinch the Upright
Wire (90).
Attach the Right Upright (84) and a Wheel (99)
with two 3/8" x 2 3/8" Screws (5), a 3/8" x 1 1/4"
Screw (7), a 3/8" x 1 3/4" Screw (6), and four
3/8" Star Washers (10) as shown; do not fully
tighten the Screws yet.
Attach the Left Upright (not shown) and the
other Wheel (not shown) in the same way.
Note: There are no wires on the left side.
5. Remove and save the four 5/16" x 3/4"
Screws (9).
Identify the Left and Right Base Covers (94, 93).
Slide the Left Base Cover onto the Left Upright
(83), and slide the Right Base Cover onto the
Right Upright (84); do not press the Base
Covers into place yet.
94
84
93
5
83
9
9
