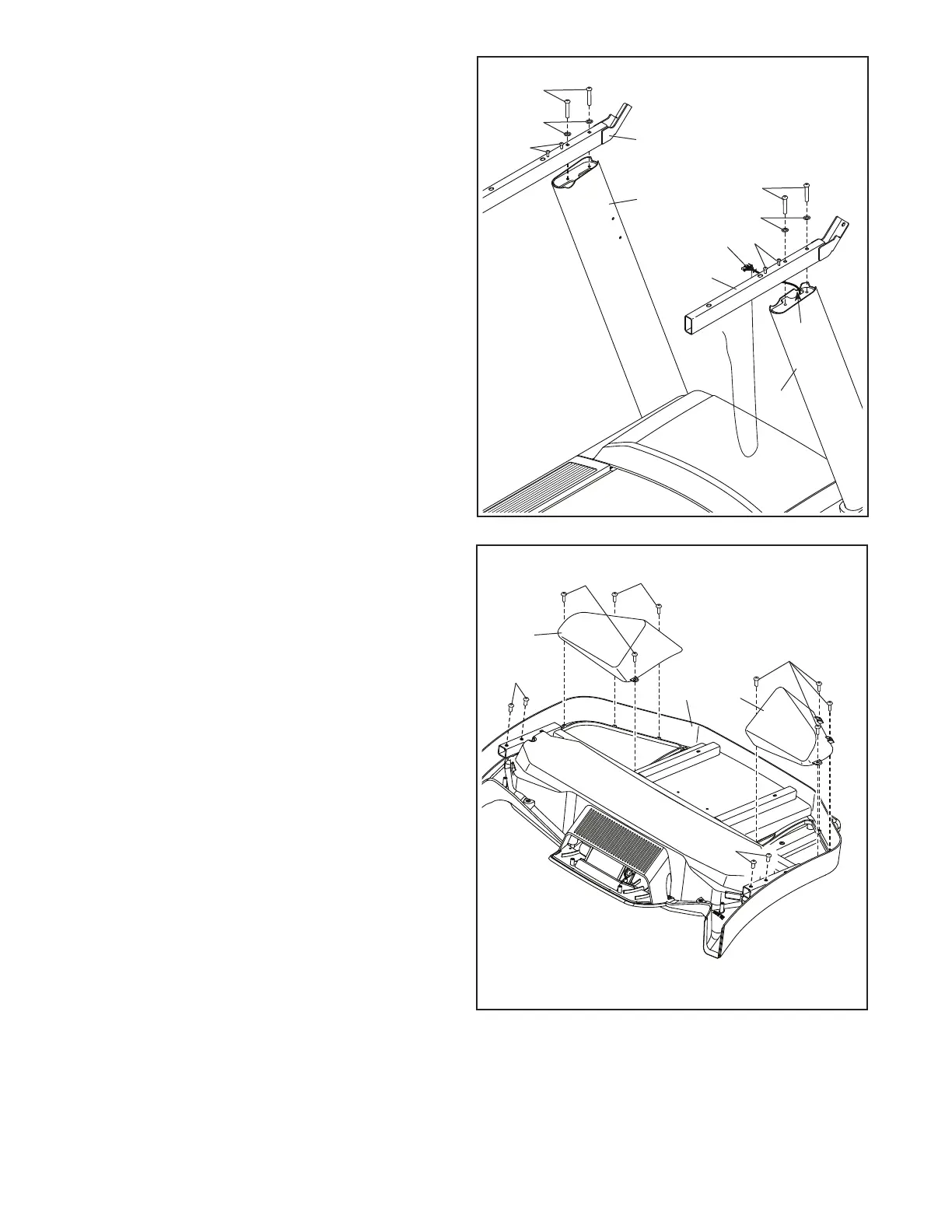

6. Attach the Left and Right Handrails (81, 82) to
the Left and Right Uprights (83, 84) with four
5/16" x 2 1/2" Screws (8) and four 5/16" Star
Washers (12); do not fully tighten the Screws
yet. Be careful not to pinch the Upright Wire
(90) on the right side. Position the Upright
Wire in the notch (E) as shown.
Then, remove and discard the four indicated
screws (F).
F
F
E
84
90
81
12
12
6
8
8
83
82
7. Set the console assembly (G) face down on
a soft surface to avoid scratching the console
assembly. Remove and save the four 1/4" x
1/2" Screws (21).
Next, identify the Left and Right Trays (102, 103).
Attach the Trays to the console assembly (G)
with eight #8 x 3/8" Screws (34); do not over-
tighten the Screws.
G
7
34
21
21
103
102
34
34
