12
9. With the help of a second person, hold the con-
sole assembly (G) near the Right Handrail (82).
Connect the Upright Wire (90) to the console
wire (I). The connectors should slide together
easily and snap into place. If they do not, turn
one connector and try again.
Then, remove the wire tie (A) from the Upright
Wire (90).
90
G
I
A
9
82

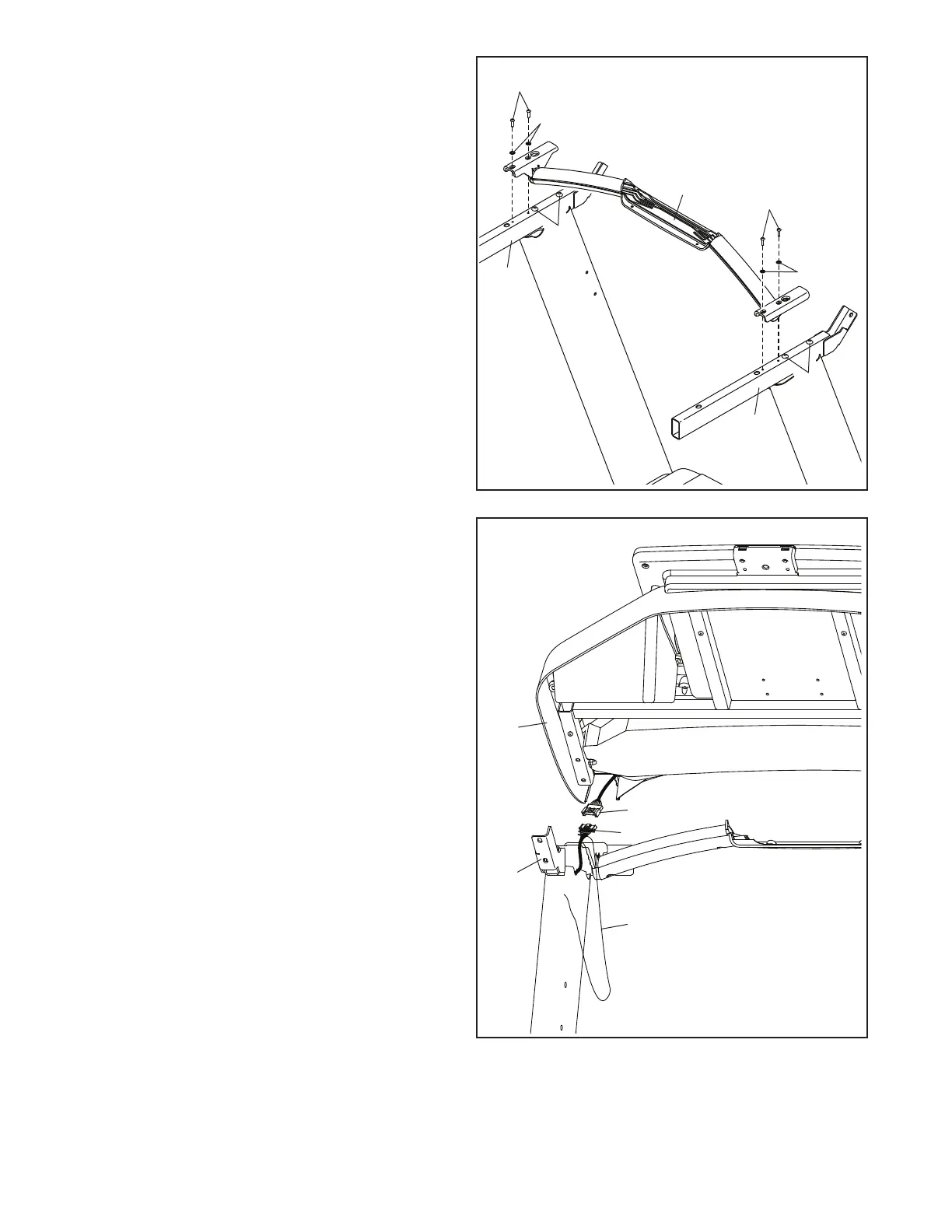

8. IMPORTANT: To avoid damaging the Crossbar
(87), do not use power tools, and do not over-
tighten the #10 x 3/4" Screws (4).
Orient the Crossbar (87) as shown. Attach the
Crossbar to the Handrails (81, 82) with four
#10 x 3/4" Screws (4) and four #10 Star Washers
(11); start all four Screws, and then tighten
them.
Then, tighten the four 5/16" x 2 1/2"
Screws (8).
87
8
11
4
8
8
81
11
4
82
To Next Page
