24

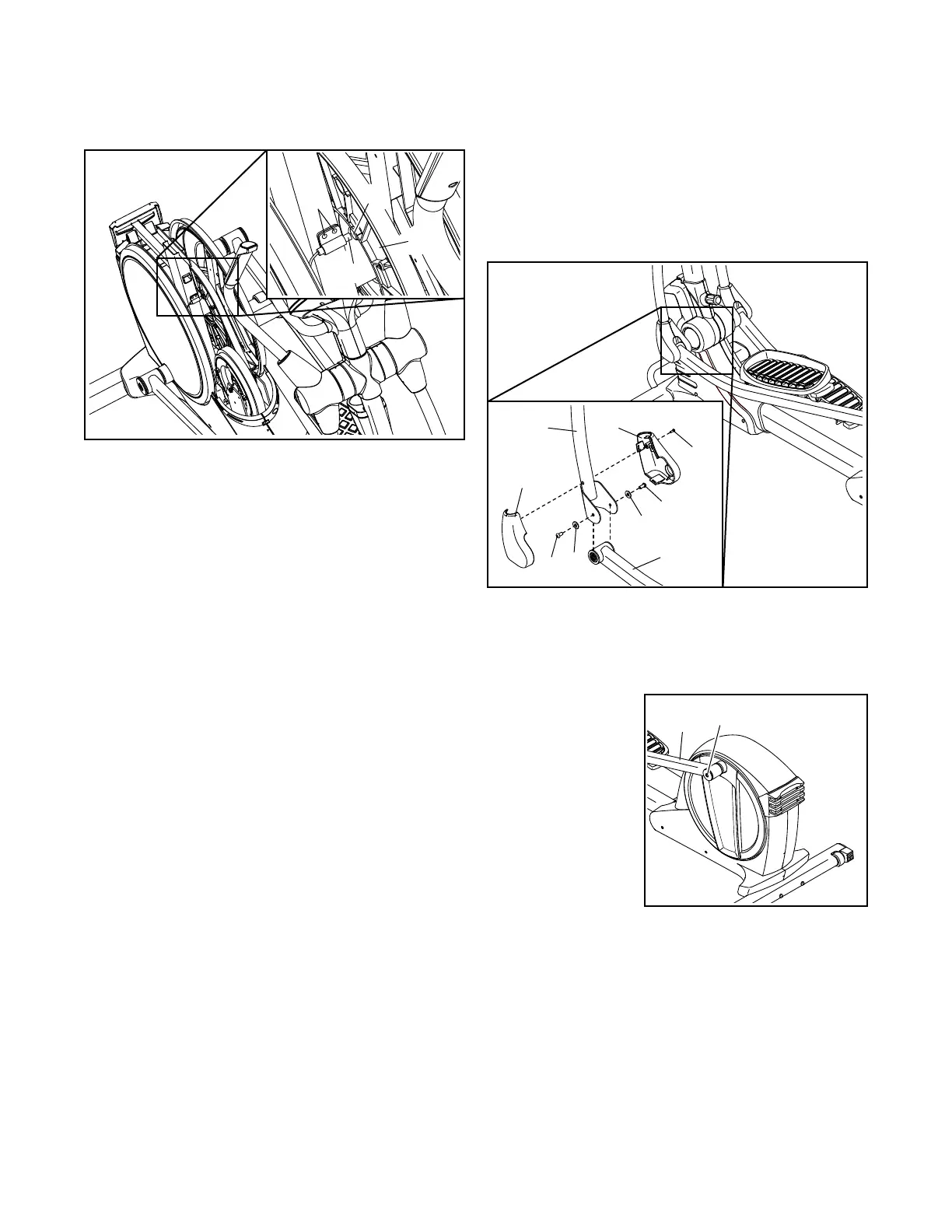

Next, slightly loosen the two indicated M4 x 16mm
Screws (61). Slide the Reed Switch (58) slightly
toward or away from the Magnet (41). Then, retighten
the Screws.
Plug in the power adapter, press the power switch
to the reset position, and rotate the Pulley (66) for
a moment. Repeat these actions until the console
displays correct feedback.
When the reed switch is correctly adjusted, press the
power switch to the off position, unplug the power
adapter, and reattach the top shield and the large stor-
age foot. Then, plug in the power adapter.
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while the
resistance is adjusted to the highest setting, the drive
belt may need to be adjusted. To adjust the drive belt,
first unplug the power adapter.
Next, remove the indicated M4 x 16mm Screw (61),
the Left Leg Inner Cover (39), and the Left Leg Outer
Cover (92).
Then, remove the two M8 x 15mm Hex Screws (76)
and the two M8 Washers (33) from the Left Upper
Body Leg (101) and the Left Pedal Arm (14).
Next, remove
the M8 x 17mm
Shoulder Screw
(81) from the Left
Pedal Arm (14),
and remove the
Left Pedal Arm
from the elliptical.
58
41
66
61
39
33
33
92
101
76
14
76
61
14
81
To Next Page
