NordicTrack Spacesaver SE7i User Manual

25
Next, remove the
four M4 x 16mm
Screws (not
shown) from the
Large Storage
Foot (27), and
remove the Large
Storage Foot.
Next, remove the
two M4 x 16mm
Screws (not
shown) from the
Top Shield (37),
and then use a standard screwdriver to pry the Top
Shield upward off the elliptical. Then, pry the left Pedal
Disc (36) off the elliptical.

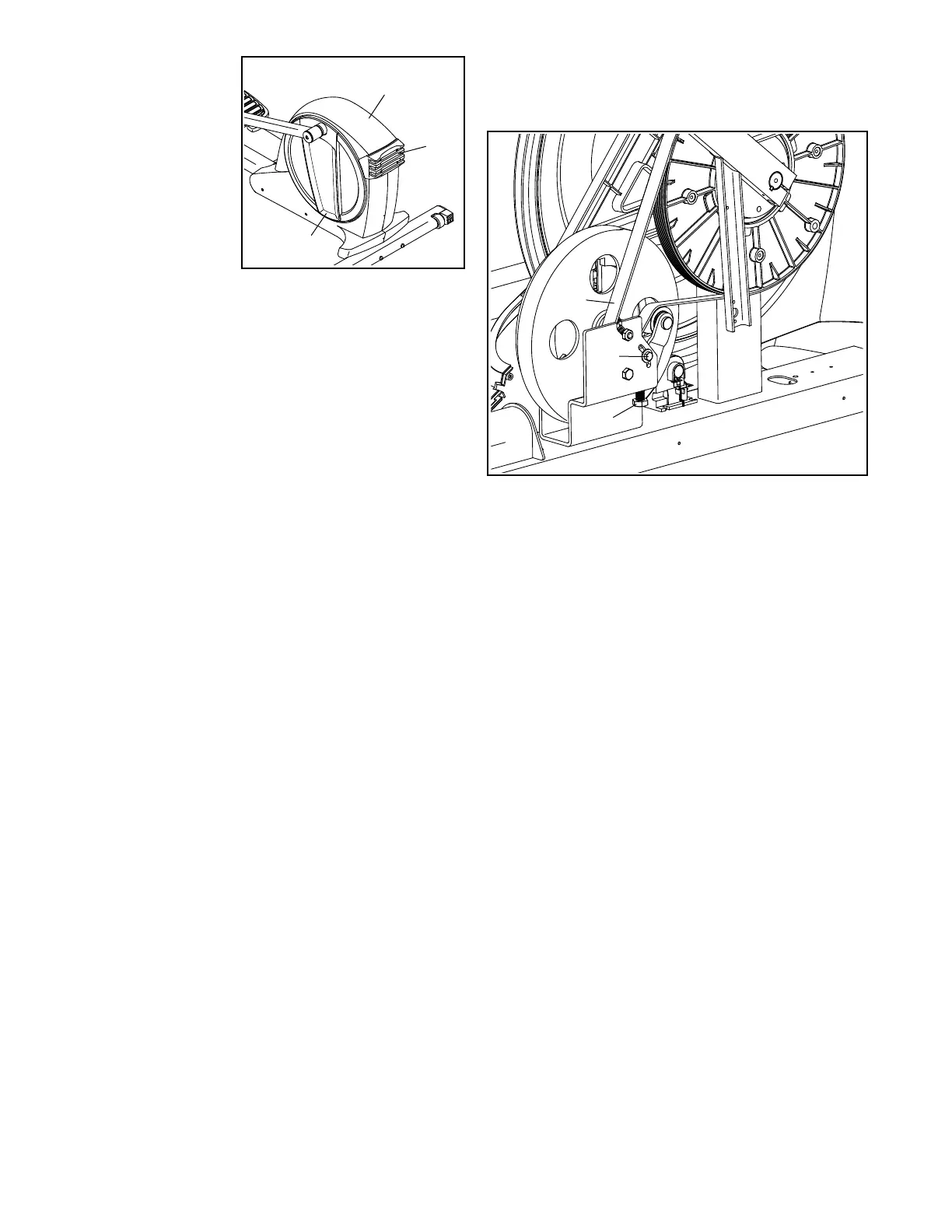

See EXPLODED DRAWING C on page 31. Identify
the Left and Right Shields (44, 45). Remove all of the
M4 x 16mm Screws (61) and M4 x 38mm Screws (64)
from the Left and Right Shields. Make sure to note
which size Screw you remove from each hole.
Then, carefully remove the Left Shield.
Next, loosen the Idler Screw (97). Tighten the Idler
Adjustment Screw (72) until the Drive Belt (46) is tight.
Then, retighten the Idler Screw.
When you are finished, reattach all of the parts that
you removed. Then, plug in the power adapter.
46
72
97
37
36
27

NordicTrack Spacesaver SE7i Specifications

General

Type	Elliptical
Resistance Levels	22
Stride Length	18 inches
Weight Capacity	325 lbs
Foldable	Yes
iFit Compatibility	Yes
Incline Type	Manual
Display	Backlit LCD
Dimensions	80 inches L x 32 inches W x 67 inches H
Flywheel Weight	13 lbs
Heart Rate Monitoring	EKG Grip Pulse
